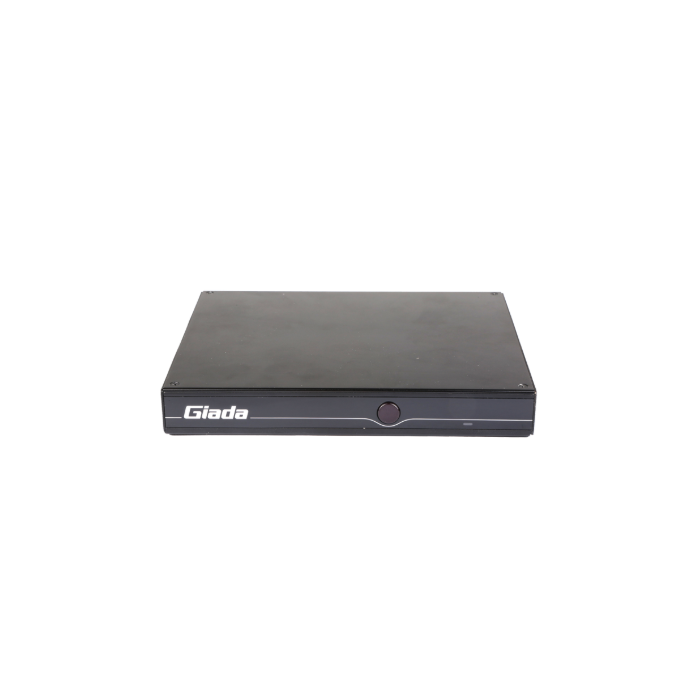

D68, Intel Mobile Core 8th Gen, 4k dual display support
Giada Technology Inc.
D68, Intel Mobile Core 8th Gen, 4k dual display support
D68, Intel Core i3-8145U, i5-8265U or i5-8259U
In stock
SKU
D68
Have a Question about this product?
Description /
D68, Intel Mobile Core 8th Gen, 4k dual display support
D68, is 8th gen book-sized PC ideal for signage player applications in hospitality, retail, commercial, service and advertising roles. This device brings organizations all the performance and efficiency of Intel Whiskey Lake CPUs, plus independent outputs to multiple 4K displays, plus the ease of use and rapid employee and client uptake offered by intuitive touch screen support.
More Information
Brand
Giada Technology Inc.
Specifications
D68-N1-8145U40M0G
D68-N1-8265U40M0G
D68-N2-8259U40M0G
Processor
CPU
Intel®Core™ i3-8145U
Intel®Core™ i5-8265U
Intel®Core™ i5-8259U
Frequency
1.60GHz (Up to 3.90GHz)
2.10GHz (Up to 3.90GHz)
2.30GHz
BIOS
AMI Source Code
Chipset
SOC
Memory
Type
DDR4-2400MHz
Socket
2 x SO-DIMM
Max Size
32GB
Graphics
GPU
Intel® UHD Graphics 620
Intel® Iris Plus Graphics
Graphic Engine
Direct3D 2015, OpenGL 4.5, OpenCL 2.1
DP
1 x DP (Max.4096 x 2304 @60Hz)
HDMI
1 x HDMI (Max.4096x2304 @60Hz)
HDMI
1 x HDMI (Max.4096x2304 @24Hz)
Network
Controller
Realtek 8111H Gigabit Ethernet
Interface
1 x RJ45
I/O
USB
5 x USB 3.2 Gen2 (10 Gbps)
Serial Port
1 x RS232
Audio
1 x AUDIO-OUT, 1 x MIC-IN
Mini-PCIe
1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G
M.2(2230)
1 x M.2(2230) for WiFi
SIM
1 x SIM Slot
TPM
Infineon TPM 2.0
Storage
mSATA
1 x Full-size mSATA（Optional）
M.2
1 x M.2(2242/2280) for SSD
JAHC Tech
WatchDog Timer
0~255 Second Time Out Support
Auto Power On
Power Activated Automatically Start
Remote Control
By IR Controller for Power On
RTC
Set Up Independently Every day, A Week as a Cycle
Wake On Lan
Yes
Operation System
Windows
Windows 10（64-Bit）
Linux
Supported
Power
Power Type
DC-IN
Input Voltage
19V / 3.42A
Mechanical
Dimensions (W × D × H)
189.6mm x 148.3mm x 26mm（7.46"x 5.84"x 1.02"）
Construction
Metal
Mounting
Desk/Wall Mounting and VESA Mounting Kit (JZ183)
Color
Black
Environment
Operating Temperature
0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Relative Humidity
95%@40℃ (non-condensing)
Certification
Certification
CE, FCC Class B, CCC
Description
D68, is 8th gen book-sized PC ideal for signage player applications in hospitality, retail, commercial, service and advertising roles. This device brings organizations all the performance and efficiency of Intel Whiskey Lake CPUs, plus independent outputs to multiple 4K displays, plus the ease of use and rapid employee and client uptake offered by intuitive touch screen support.
