GPSC-7-27-3SP Dash-Glass LTE + GNSS Antenna
Dual function cellular & GPS/GNSS Telematics Antenna, dashboard or windshield mount, Cellular/LTE and GPS/GNSS, suitable for M3 Category vehicles and available with SMA or FAKRA connectors.
Out of stock
- SKU
- GPSC-7-27-3SP
Have a Question about this product?
Description / GPSC-7-27-3SP Dash-Glass LTE + GNSS Antenna

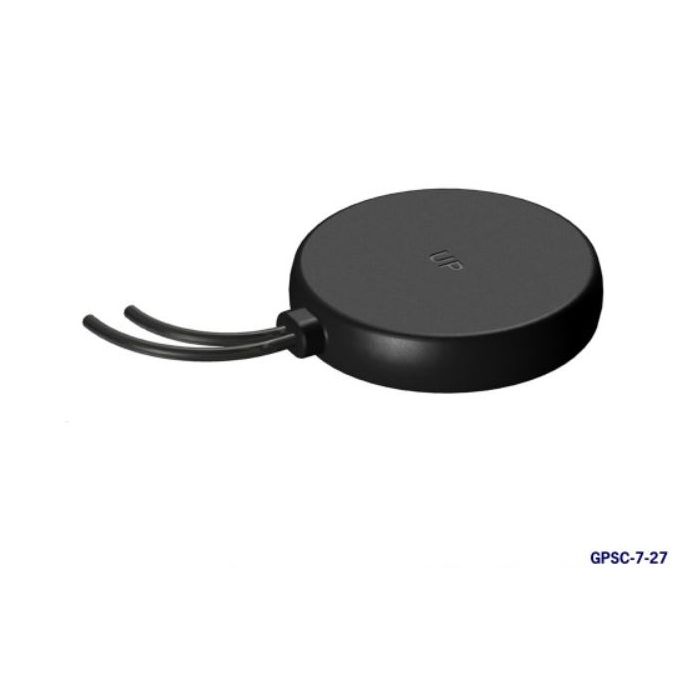

The compact, robust low-profile housing contains an antenna element covering all current global cellular and LTE bands in freq. range 698-960/1710-2700MHz along with a GPS/GNSS/Galileo/Beidou antenna for applications which require a positioning function.
The antenna can be fitted on or under a vehicle dashboard or on a windshield using the supplied acrylic adhesive sealing pad. Supplied with integrated 3m (10’) cables
More Information
| brand | Panorama Antennas |
|---|---|
| Specifications | Frequency Range (MHz) Element 1 698-960 / 1710-2700 Element 2 1562-1612 Pattern Omni-directional Fixing Adhesive pad |
| Description | The compact, robust low-profile housing contains an antenna element covering all current global cellular and LTE bands in freq. range 698-960/1710-2700MHz along with a GPS/GNSS/Galileo/Beidou antenna for applications which require a positioning function. The antenna can be fitted on or under a vehicle dashboard or on a windshield using the supplied acrylic adhesive sealing pad. Supplied with integrated 3m (10’) cables |
