DE67/ F302, 7th Gen i series, DP/HDMI/VGA

Giada Technology Inc.

Fanless i3/i5 7th Gen DP, HDMI,VGA media player

In stock

SKU
DE67/F302

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / DE67/ F302, 7th Gen i series, DP/HDMI/VGA

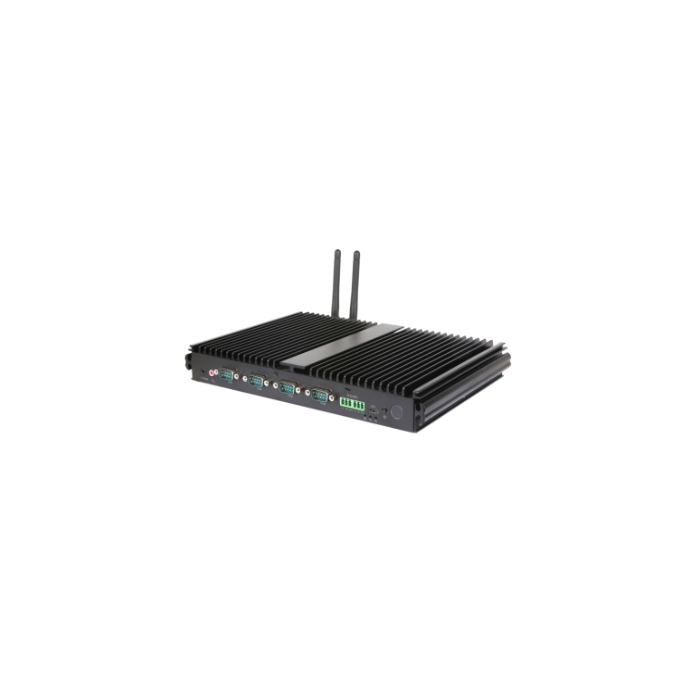

DE67 from Giada is a high-end digital signage computer powered by a choice of either the Intel Core i5-7200U or the i3-7100U processors from Intel 7th generation family. Supporting 3 independent displays and having comprehensive I/O, the DE67 is a strong contender for advanced digital signage projects.



·         Intel® 7th Genneration Core Processors

·         2 x SO-DIMM DDR3L,Up to 32GB

·         1 x DP,1 x HDMI 2.0,1 x VGA

·         1 x 2.5"SATA,1 x mSATA,1 x M.2 for SSD

·         1 x Type-C USB 3.0,3 x USB 3.0,2 x USB 2.0,4 x RS232,2 x RS485

·         2 x RJ45,1 x Mini-PCIe for WiFi/BT/3G/4G,1 x SIM Slot

More Information

brand Giada Technology Inc.
Specifications
  DE67-N1-7100U3000G/DE67-N1-7200U3000G
Processor CPU Intel® Core i3-7100U / Intel® Core i5-7200U
Frequency 2.40GHz / 2.50 GHz (Up to 3.10GHz )
BIOS AMI Source Code
Chipset SOC
Memory Type DDR3L-1600MHz
Socket 2 x SO-DIMM
Max Size 32GB
Graphics GPU Intel® HD Graphics 620
Graphic Engine Direct3D 2015, OpenGL 4.5, OpenCL 2.1
DP 1 x DP (Max.4096 x 2304@60Hz)
HDMI 1 x HDMI (Max.3840 x 2160@60Hz)
VGA 1 x VGA (Max.2048 x 1536@60Hz)
Network Controller  1 x Intel I211, 1 x Intel I219, Gigabit Ethernet
Interface 2 x RJ45
I/O USB 1 x Type-C USB 3.0, 3 x USB 3.0, 2 x USB 2.0
Serial Port 4 x RS232, 2 x RS485
Audio 1 x MIC-IN, 1 x AUDIO-OUT
Mini-PCIe1#  1 x Full-size Mini-PCIe for mSATA
Mini-PCIe2#  1 x Full-size Mini-PCIe for WiFi/BT/3G/4G
M.2  1 x M.2 (2242/2280) for SSD
SIM Slot 1 x SIM Slot
Storage SATA 1 x 2.5" SATA
mSATA 1 x Full-size Mini-PCIe for mSATA
M.2 1 x M.2 (2242/2280) for SSD
JAHC Tech WatchDog Timer 0~255 Second Time Out Support
Auto Power On Power Activated Automatically Start
RTC Set Up Independently Every day, A Week as a Cycle
Remote Control By IR Controller for Power On
Operation System Windows Windows 8.1/10(64-bit)
Power Power Type DC-IN
Input Voltage 19V/3.42A
Mechanical Dimensions (W Ã— D Ã— H) 260mm x 173.4mm x 38.5mm(10.24"x6.83"x1.52")
Fanless Yes
Construction Metal
Mounting(Optional) Desk/Wall Mounting and VESA Mounting Kit (JZ300)
Color Black
Environment Operating Temperature 0℃ ~ 40℃ ( 32 â„‰ ~ 104 â„‰ ) at 0.7m/s Air Flow
Relative Humidity 95%@40℃ (non-condensing)
Certification Certification CE, FCC Class B, CCC
Description

DE67 from Giada is a high-end digital signage computer powered by a choice of either the Intel Core i5-7200U or the i3-7100U processors from Intel 7th generation family. Supporting 3 independent displays and having comprehensive I/O, the DE67 is a strong contender for advanced digital signage projects.



·         Intel® 7th Genneration Core Processors

·         2 x SO-DIMM DDR3L,Up to 32GB

·         1 x DP,1 x HDMI 2.0,1 x VGA

·         1 x 2.5"SATA,1 x mSATA,1 x M.2 for SSD

·         1 x Type-C USB 3.0,3 x USB 3.0,2 x USB 2.0,4 x RS232,2 x RS485

·         2 x RJ45,1 x Mini-PCIe for WiFi/BT/3G/4G,1 x SIM Slot
