DF610 Comet Lake Ultra-thin High-end Fanless Player
In stock
SKU
DF610
Have a Question about this product?
Description /
DF610 - 10th Gen Fanless Player

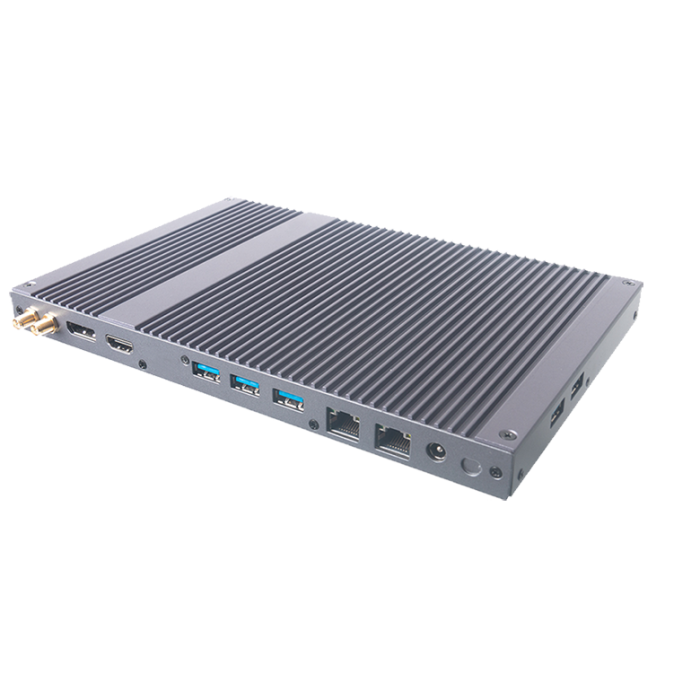

The Giada DF610 is an ultra-thin high-end fanless digital signage player measuring 22mm thin. Equipped with 10th Gen Intel Comet Lake processor, this signage player supports 4K displays to provide stunning visuals.
Key Specifications
1 x DP, 1 x HDMI, Supporting 4K Display
2 x SO-DIMM DDR4 Memory, Up to 32GB
1 x M-key M.2 (2242/2280) for SATA/NVMe
1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G, 1 x SIM Slot
More Information
Brand
Giada Technology Inc.
Specifications
Processor
CPU
Intel Core i3-10110U or
Intel Core i5-10210U
BIOS
AMI Source Code
Chipset
SOC
Memory
Type
DDR4-2400MHz
Socket
2 x SO-DIMM
Max Size
32GB
Graphics
GPU
Intel 10th Gen. UHD Graphics
Graphic Engine
Direct3D 2015, OpenGL 4.5, OpenCL 2.1
DP
1 x DP (Max.4096 x 2304 @60Hz)
HDMI
1 x HDMI (Max.4096x2304 @60Hz)
HDMI
1 x HDMI (Max.4096x2304 @24Hz)
Network
Controller
2 x Realtek 8111G Gigabit Ethernet
Interface
2 x RJ45
I/O
USB
5 x USB 3.2 Gen2 (10 Gbps)
Serial Port
1 x RS232
Audio
1 x AUDIO-OUT, 1 x MIC-IN
Mini-PCIe
1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G
M.2(2230)
1 x M.2(2230) for WiFi
SIM
1 x SIM Slot
TPM
Infineon TPM 2.0 (Optional)
Storage
M.2
1 x M.2(2242/2280) for SSD
JAHC Tech
Watchdog Timer
0~255 Second Time Out Support
Auto Power On
Power Activated Automatically Start
Remote Control
By IR Controller for Power On
RTC
Set Up Independently Every day, A Week as a Cycle
Wake On Lan
Yes
Operation System
Windows
Windows 10（64-Bit）
Linux
Support
Power
Power Type
DC-IN
Input Voltage
19V / 3.42A
Mechanical
Dimensions (W × D × H)
189.6mm x 148.3mm x 26mm（7.46"x 5.84"x 1.02"）
Construction
Metal
Mounting
Desk/Wall Mounting and VESA Mounting Kit (JC300)
Colour
Black
Environment
Operating Temperature
0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Relative Humidity
95%@40℃ (non-condensing)
Certification
Certification
CE, FCC Class B, CCC
License
The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
Description
The Giada DF610 is an ultra-thin high-end fanless digital signage player measuring 22mm thin. Equipped with 10th Gen Intel Comet Lake processor, this signage player supports 4K displays to provide stunning visuals.
Key Specifications
1 x DP, 1 x HDMI, Supporting 4K Display
2 x SO-DIMM DDR4 Memory, Up to 32GB
1 x M-key M.2 (2242/2280) for SATA/NVMe
1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G, 1 x SIM Slot
