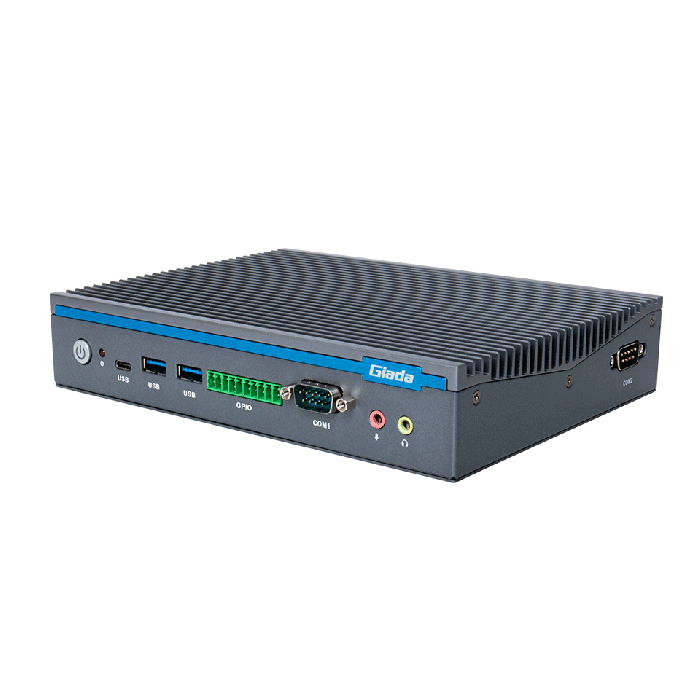

DF613-I Fanless Signage Player with 10-pin GPIO

Giada Technology Inc.

Fanless Signage Player with Intel 13th Gen. and Supports 8K Display

Key Features:

  • Intel® Raptor Lake-P Core i3/i5 processors
  • 1 x DP (7680 x 4320 @60 Hz)
  • 2 x HDMI (4096 x 2304 @60 Hz)
  • 8 bi-directional GPIOs (10-pin Phoenix)
  • Support Intel® vPro® technology
  • Fanless design

In stock

SKU
DF613-I-13x5U40N0G-GIA

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / DF613-I Fanless Signage Player with 10-pin GPIO

Introducing the Giada DF613-I Fanless Embedded PC

Elevate your digital infrastructure with the Giada DF613-I, a fanless embedded PC designed to deliver exceptional performance and reliability. Perfect for a diverse range of applications, including digital signage, interactive kiosks, and edge computing, the DF613-I is the epitome of versatility and efficiency.

Features:

  • Fanless Design: The DF613-I's fanless architecture ensures silent operation and minimal maintenance, making it ideal for noise-sensitive environments and prolonged use.
  • Robust Performance: Powered by Intel® processors, the DF613-I provides robust computing power suitable for demanding applications.
  • Compact and Durable: Its compact form factor and rugged construction are perfect for space-constrained installations and harsh operating conditions.
  • Versatile Connectivity: Equipped with multiple I/O ports, including HDMI, DP, USB 3.0, and LAN, the DF613-I offers versatile connectivity options to support various peripherals and devices.
  • Enhanced Graphics: Integrated Intel® UHD Graphics ensures superior visual performance for high-resolution displays and graphics-intensive applications.
  • Energy Efficient: The fanless design not only ensures quiet operation but also contributes to energy savings, making it an eco-friendly choice.

Applications:

  • The Giada DF613-I is perfect for numerous industries and use cases:
  • Digital Signage: Deliver reliable, high-performance content for advertising and informational displays.
  • Interactive Kiosks: Provide engaging user experiences with responsive and powerful computing capabilities.
  • Edge Computing: Optimize data processing at the edge with robust performance and connectivity.

Why Choose the Giada DF613-I:

  • Reliability: Engineered for continuous operation, the DF613-I ensures minimal downtime and consistent performance.
  • Flexibility: Its versatile design allows for easy integration into various setups and environments.
  • Support: Backed by Giada's reputation for quality and customer support, the DF613-I is a reliable choice for your critical applications.

Enhance your digital infrastructure with the Giada DF613-I Fanless Embedded PC. Contact us today to learn more about how this powerful and efficient solution can meet your needs.

More Information

brand Giada Technology Inc.
Specifications

CPU

CPU

Intel® Core™ i3-1315U processor
Intel® Core™ i5-1335U processor

Efficient Frequency

3.30 GHz/3.40 GHz

Performance Frequency

4.50 GHz/4.60 GHz

Chipset

SoC

Processing Units

6 Cores /10 Cores

Configurable TDP-up

15 W /15 W

Memory

Size

Up to 64 GB

Type

2 x SO-DIMM DDR4-3200 MHz

Storage

Socket 1

1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD

Display

GPU

Intel® UHD Graphics (Core™ Core i3)

Intel® IRIS® Xe Graphics (Core™ Core i5)

Graphic Engine
DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC

Display Interface
1 x DP (Max.7680 x 4320 @60 Hz)
2 x HDMI (Max.4096 x 2304 @60 Hz)

Network

Network Controller

1 x Intel i219-LM Gigabit Ethernet

1 x Realtek RTL8111H Gigabit Ethernet

Ethernet Interface

2 x RJ45

Wi-Fi/BT

1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)

Mobile Network

1 x B-Key M.2 (3042) for 3G/4G,

1 x SIM Slot

I/O interface

USB
1 x USB Type-C,
4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0

GPIO

8 bi-directional GPIOs (10-pin Phoenix)

Serial Port

1 x RS232, 1 x RS232/422/485

Audio
1 x MIC-IN, 1 x AUDIO-OUT

Button

1 x Power on, 1 x CLR-CMOS

Antenna

2 x Connector for Wi-Fi/BT
2 x Connector for 3G/4G (Reserved)

System

TPM

Optional: TPM2.0

Watchdog Timer

Yes

Auto Power On

Yes

RTC

Set up independently every day, a week as a cycle

Power Requirement

DC-IN, 19 V/4.74 A

Dimensions

200 mm x 150 mm x 40 mm (7.87” x 5.90” x 1.57”)

Construction

Metal, Grey

Operating System

Windows 11 (64bit) /Linux Ubuntu (64bit)

Operating Temperature

0°C ~45°C (32°F~113°F) @0.7m/s Air Flow

Humidity

95% @ 45°C (non-condensing)

Certifications

CE, FCC Class B, UKCA
Description

Introducing the Giada DF613-I Fanless Embedded PC

Elevate your digital infrastructure with the Giada DF613-I, a fanless embedded PC designed to deliver exceptional performance and reliability. Perfect for a diverse range of applications, including digital signage, interactive kiosks, and edge computing, the DF613-I is the epitome of versatility and efficiency.

Features:

  • Fanless Design: The DF613-I's fanless architecture ensures silent operation and minimal maintenance, making it ideal for noise-sensitive environments and prolonged use.
  • Robust Performance: Powered by Intel® processors, the DF613-I provides robust computing power suitable for demanding applications.
  • Compact and Durable: Its compact form factor and rugged construction are perfect for space-constrained installations and harsh operating conditions.
  • Versatile Connectivity: Equipped with multiple I/O ports, including HDMI, DP, USB 3.0, and LAN, the DF613-I offers versatile connectivity options to support various peripherals and devices.
  • Enhanced Graphics: Integrated Intel® UHD Graphics ensures superior visual performance for high-resolution displays and graphics-intensive applications.
  • Energy Efficient: The fanless design not only ensures quiet operation but also contributes to energy savings, making it an eco-friendly choice.

Applications:

  • The Giada DF613-I is perfect for numerous industries and use cases:
  • Digital Signage: Deliver reliable, high-performance content for advertising and informational displays.
  • Interactive Kiosks: Provide engaging user experiences with responsive and powerful computing capabilities.
  • Edge Computing: Optimize data processing at the edge with robust performance and connectivity.

Why Choose the Giada DF613-I:

  • Reliability: Engineered for continuous operation, the DF613-I ensures minimal downtime and consistent performance.
  • Flexibility: Its versatile design allows for easy integration into various setups and environments.
  • Support: Backed by Giada's reputation for quality and customer support, the DF613-I is a reliable choice for your critical applications.

Enhance your digital infrastructure with the Giada DF613-I Fanless Embedded PC. Contact us today to learn more about how this powerful and efficient solution can meet your needs.
