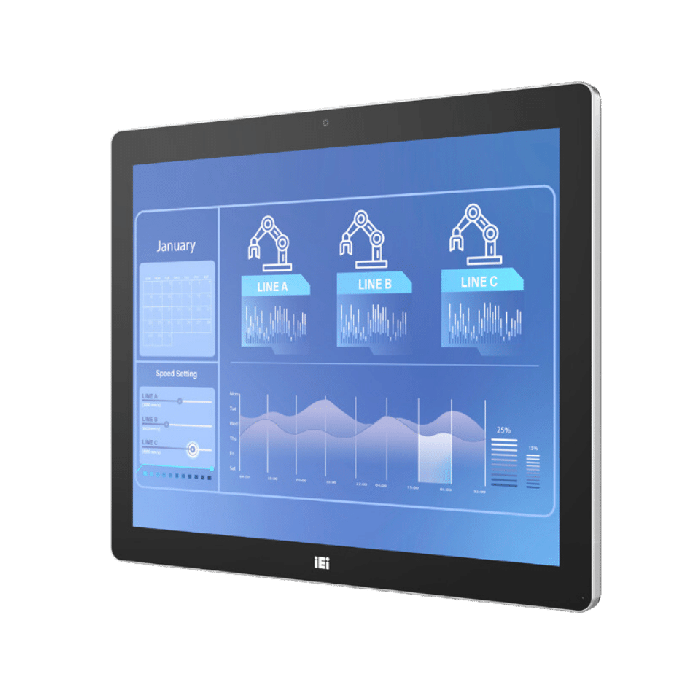

DM2-190H 19" IP65-Front Industrial Display

IEI Integration Corp.

IEI's Latest Generation Industrial Monitor

Key Features:

  • Front OSD, easy access for setting adjustment
  • Speakers are positioned at the front, ensuring clear sound delivery
  • Supports gloved operation and waterproof protection
  • Built-in camera, ideal for AI facial recognition
  • USB 3.2 Gen1 Type-A supports 10W
  • IP65-compliant front panel with aluminum frame
  • Anti-glare and anti-UV PCAP

In stock

SKU
DM2-190H-R10/DM2-190HL-R10

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / DM2-190H 19" IP65-Front Industrial Display

The DM2 series LCD monitor is the latest member of IEI’s line of sophisticated LCD designs with flat bezel. It is designed to fit industrial automation. The flat front panel provides IP 65 protection, which effectively wards off dust and water. Flexible analog or digital interfaces are provided for ease of connection with a management computer.

More Information

brand IEI Integration Corp.
Specifications

Model Name

DM2-190H(L)

LCD Size

19”(5:4)

Brightness (cd/m2)

450

Max Resolution (W-H)

1280x1024

Contrast Ratio

1000: 1

LCD Color

16.7M

Viewing Angle (H-V)

178°/178°

Backlight MTBF (hrs)

50000

Touch Screen

10-point projected capacitive touch window (anti-UV, anti-glare surface)

Touch Controller

Capacitive: LiTek

I/O Ports and Switches

  • 1 x VGA (DB-15)

  • 1 x Line out

  • 1 x HDMI

  • 1 x DisplayPort 1.1

  • 1 x USB 3.2 Gen1 Type-B

  • 1 x 9V-36V DC jack

  • 4 x USB 3.2 Gen1 Type-A *

  • 1 x 3-pin terminal block

OSD Keypad

5-key membrane OSD keypad

Camera

Standard configuration*

Speaker

2 x 2W AMP (internal speaker)*

Construction Material

Aluminum front frame and sheet metal rear cover

Mounting

Panel mount, rack mount, VESA 100

Enclosure Colour

Black

Dimensions (LxWxH) (mm)

424.50 x 361.57 x 51.2

Cutout Dimensions (mm)

406.30 x 337.57

Operating Temperature

-20°C ~ 60°C (with airflow)

Storage Temperature

-20°C ~ 70°C

Humidity

10% to 95%@40°C (non-condensing) (50%@60°C)

Vibration

MIL-STD-810F 514.5C-1

Shock

  • Operating: Half-sine wave shock 5G; 11ms; 100 shocks per axis

  • No-operating: Half-sine wave shock 15G; 11ms; 100 shocks per axis

IP Level

IP 65 compliant front panel

Safety & EMC

CE/FCC/UKCA Class A

Power Input

9~36V DC

Power Cord

EU

* L (Lite) without Camera, Speaker, USB-A x 4
Description

The DM2 series LCD monitor is the latest member of IEI’s line of sophisticated LCD designs with flat bezel. It is designed to fit industrial automation. The flat front panel provides IP 65 protection, which effectively wards off dust and water. Flexible analog or digital interfaces are provided for ease of connection with a management computer.
