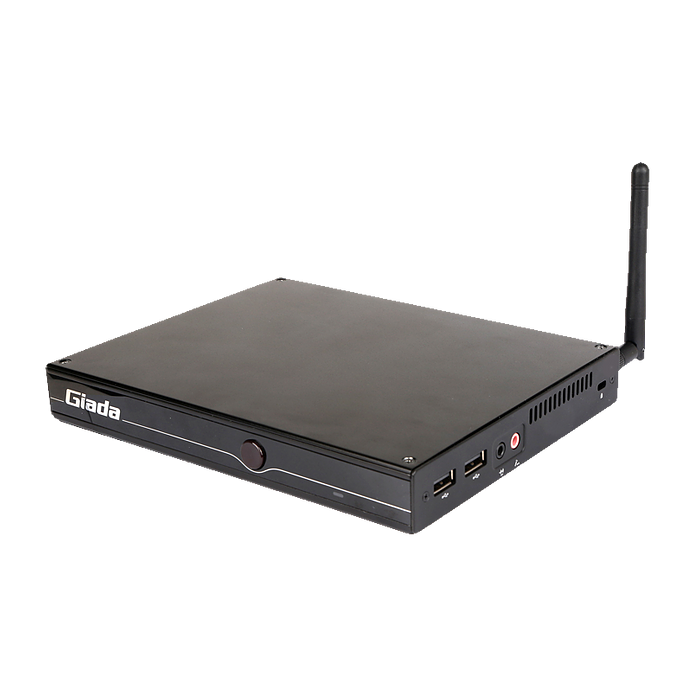

DM5 AMD Ryzen CPU 3x Display Media Player

Giada Technology Inc.

The cost-effective, book-sized DM5 applies the power and performance of AMD Ryzen CPUs and offers 4K video output via 3 x HDMI ports.

In stock

SKU
DM5-R1305G40H0G

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / DM5 AMD Ryzen CPU 3x Display Media Player

The Giada DM5 is an entry level book size Digital Signage PC based on the AMD Ryzen R1305 1.5 Ghz Embedded CPU, featuring Radeon vega 3 graphics the unit will support three independent displays at 4K resolution via HDMI.

AMD APU platform CPU

2 x SO-DIMM DDR4-2400Mhz, up to 32GB

3 x HDMI, supporting 2 x 4K@60Hz

1 x 2.5” SATA, 1 x mSATA

2 x USB3.1, 2 x USB 2.0, 1 x RS232

1 RJ45, 1 x Mini-PCIe for WiFi/BT/4G, 1 x sim slot

More Information

Brand Giada Technology Inc.
Specifications

Specifications
Processor CPU AMD Ryzen™ R1305G
Frequency 1.5 GHz (Up to 2.8GHz)
BIOS AMI Source Code
Chipset SOC
Memory Type DDR4-2400MHz
Socket 2 x SO-DIMM
Max Size 32GB
Graphics GPU AMD Radeon™ Vega 3 Graphics
Graphic Engine DirectX12, OpenGL4.4, OpenCL 1.2
HDMI

3 x HDMI2.0

Supporting 2 x 4K (3840x2160)@60Hz or 3 x 2K (1920x1080)@60Hz
Network Controller Realtek RTL8111H  Gigabit Ethernet
Interface 1 x RJ45
I/O USB 2 x USB 3.1, 2 x USB 2.0
Serial Port 1 x RS232
Audio 1 x AUDIO-OUT, 1 x MIC-IN
Mini-PCIe#1 1 x Full-size Mini-PCIe for mSATA
Mini-PCIe#2 1 x Full-size Mini-PCIe for 3G/4G/WiFi/BT
SIM 1 x SIM Slot
Storage SATA 1 x 2.5" SATA
mSATA 1 x Full-size mSATA
JAHC Tech WatchDog Timer 0~255 Second Time Out Support
Auto Power On Power Activated Automatically Start
RTC Set Up Independently Every day, A Week as a Cycle
Operation System Windows Windows 10（64-bit）
Linux Ubuntu 18.04 verified
Power Power Type DC-IN
Input Voltage 19V/3.42A
Mechanical Dimensions (W × D × H) 189.6mm x 148.3mm x 26mm（7.46" x 5.84" x 1.02"）
Construction Metal
Mounting Wall Mounting and VESA Mounting (JZ183)
Color Black
Environment Operating Temperature 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Relative Humidity 95%@40℃ (non-condensing)
Certification Certification CE, FCC


Description

The Giada DM5 is an entry level book size Digital Signage PC based on the AMD Ryzen R1305 1.5 Ghz Embedded CPU, featuring Radeon vega 3 graphics the unit will support three independent displays at 4K resolution via HDMI.

AMD APU platform CPU

2 x SO-DIMM DDR4-2400Mhz, up to 32GB

3 x HDMI, supporting 2 x 4K@60Hz

1 x 2.5” SATA, 1 x mSATA

2 x USB3.1, 2 x USB 2.0, 1 x RS232

1 RJ45, 1 x Mini-PCIe for WiFi/BT/4G, 1 x sim slot
pdf
Data sheet
