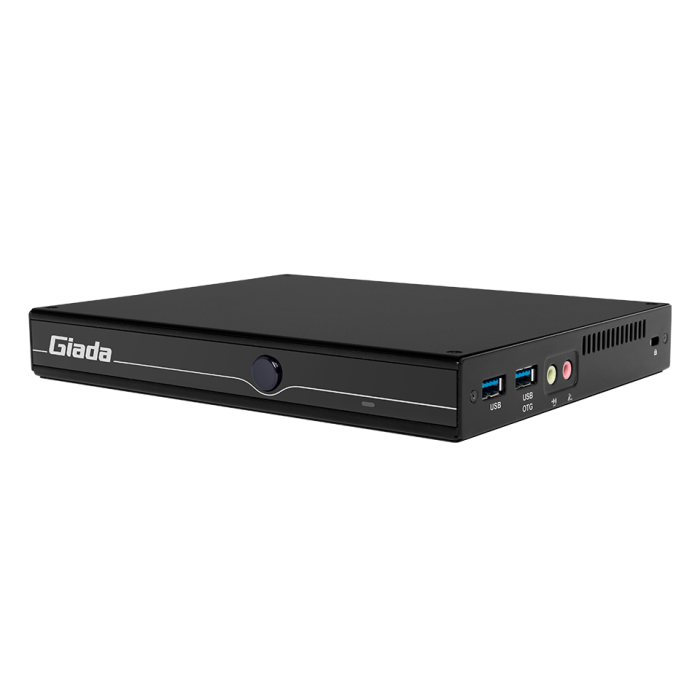

DM6-R AMD R2000 Digital Signage Player

Giada Technology Inc.

Long Life Cycle AMD Ryzen R2000 Book-size Signage Player

Key Features:

  • AMD Ryzen R2314 Processor
  • 4 x HDMI (3840 x 2160 @60 Hz)
  • Support Wi-Fi/BT module
  • Support 3G/4G module
  • AMD Radeon Vega Graphics

In stock

SKU
DM6-R231440M0G-GIA

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / DM6-R AMD R2000 Digital Signage Player

AMD® Ryzen™ R2000 Processors Long Life Cycle Product

The booksize player adopts a high-performance Ryzen™ Embedded R2314 processor. It supports dual-channel DDR4 memory and it's flexible enough to extend the hard drive through an M.2 slot.

Four Display Outputs
Supporting 4K Video Playback

The player supports AMD Radeon™ Vega 6 Graphics. It has four HDMI 2.0a outputs, supporting Max. 3840 x 2160@60Hz resolution. As for video decoding capability, it supports up to three 4K (3840 x 2160@30fps) or four 1080p (1920x1080@60fps) video decoding. With AMD drivers, users can easily group monitor configurations, including 1 x 4 and 2 x 2.



I/O Ports

More Information

brand Giada Technology Inc.
Specifications

CPU

CPU
AMD® Ryzen Embedded 2314

Frequency
3.50 GHz

Chipset

SoC

Processing Units

4 Cores

TDP
25 W

Memory

Size

Up to 32 GB

Type

2 x SO-DIMM DDR4-2666 MHz

Storage

Socket

1 x M-Key M.2(2280) PCIe3.0 X4 for SSD

Display

GPU
AMD® Radeon™ RX Vega 6 Graphics
Multi-media
H.265 / VP9 video decode, up to 4K@60fps
H.264 8-bit decode and encode

Display Interface
4 x HDMI (Max.3840 x 2160 @60 Hz)

Network

Network Controller

1 x Realtek RTL 8111H Gigabit Ethernet

Ethernet Interface

1 x 1GbE RJ45

Wi-Fi/BT

1 x E-Key M.2 (2230) for Wi-Fi/BT

Mobile Network
1 x B-Key M.2 (3042) for 3G/4G

1 x SIM Slot

I/O interface

USB
2 x USB3.2 Gen1, 2 x USB2.0

Serial Port

1 x RS232

Audio

1 x MIC-IN, 1 x AUDIO-OUT

Button

1 x Power on, 1 x CLR-CMOS

Antenna

1 x Connector for Wi-Fi/BT

System

TPM

Optional: TPM2.0

Watchdog Timer

Yes

Auto Power On

Yes

RTC

Set up independently every day, a week as a cycle

Power Requirement

DC-IN, 19 V/3.42 A

Dimensions

189.6mm x 148.3mm x 26mm (7.46” x 5.83” x 1.02”)

Construction

Metal, Black

Operating System

Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)

Operating Temperature

0°C ~45°C (32°F~114°F) @0.7m/s Air Flow

Humidity

95% @ 45°C (non-condensing)

Certifications

CE, FCC Class B, UKCA
Description

AMD® Ryzen™ R2000 Processors Long Life Cycle Product

The booksize player adopts a high-performance Ryzen™ Embedded R2314 processor. It supports dual-channel DDR4 memory and it's flexible enough to extend the hard drive through an M.2 slot.

Four Display Outputs
Supporting 4K Video Playback

The player supports AMD Radeon™ Vega 6 Graphics. It has four HDMI 2.0a outputs, supporting Max. 3840 x 2160@60Hz resolution. As for video decoding capability, it supports up to three 4K (3840 x 2160@30fps) or four 1080p (1920x1080@60fps) video decoding. With AMD drivers, users can easily group monitor configurations, including 1 x 4 and 2 x 2.



I/O Ports
pdf
Datasheet
pdf
User Manual
