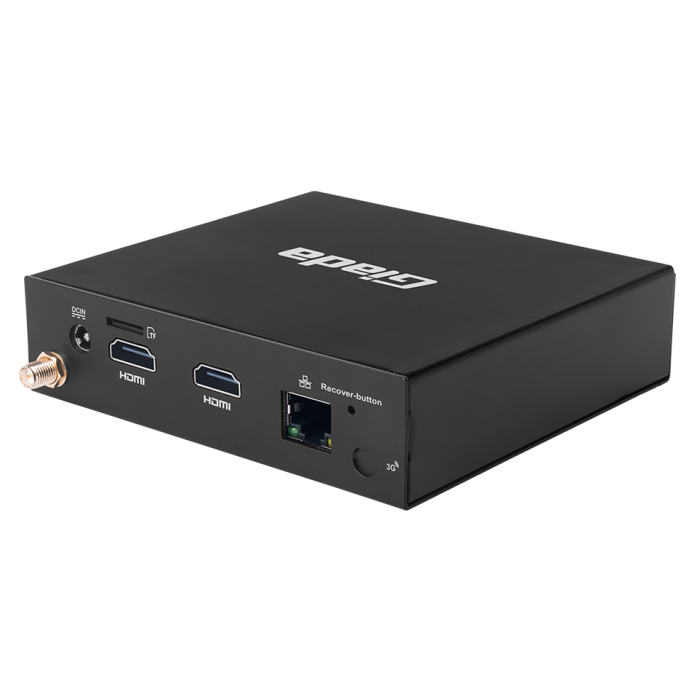

DN74 - RK3399 Quad core ARM player
Giada Technology Inc.
DN74 - RK3399 Quad core ARM player
DN74, RK3399 Dual-core ARM Cortex-A72 and Quad-core ARM Cortex-A53
-
SKU
-
DN74
Have a Question about this product?
Description /
DN74 - RK3399 Quad core ARM player
- RK3399 Dual-core ARM Cortex-A72 and Quad - core ARM Cortex-A53
- Onboard 4GB LPDDR4 Memory
- 1 x HDMI,Supporting 4K Display
- 1 x HDMI, Supporting 2K Display
- eMMC Onboard 32GB
- 1x USB 3.0(OTG), 3 x USB 2.0，1 x RS232
- 1 x RJ45, 1 x Mini-PCIe for 3G/4G, 1 x SIM Slot
More Information
| Brand |
Giada Technology Inc. |
| Specifications |
| Processor |
CPU |
RK3399 Dual-core ARM Cortex-A72 and Quad-core ARM Cortex-A53 |
| Frequency |
Up to 1.8GHz |
| Chipset |
SOC |
| Memory |
Type |
LPDDR4 Support 2 channels |
| Socket |
Onboard |
| Size |
4GB(2GB Optional) |
| Graphics |
GPU |
Mali-T860MP4 |
| Video Decoding Capability |
4K H.264/H.265 video decoder |
| HDMI |
1 x HDMI (Max.4K @60Hz)
1 x HDMI (Max.2K @30Hz)
|
| Network |
Controller |
Realtek RTL8211E Gigabit Ethernet |
| Interface |
1 x RJ45 |
| I/O |
USB |
1 x USB 3.0 (OTG), 3 x USB 2.0 |
| Display Interface |
2 x HDMI |
| LAN |
1 x RJ45 |
| Serial Port |
1 x RS232 |
| Audio |
1 x MIC-IN, 1 x AUDIO-OUT |
| Mini-PCIe |
1 x Full-size Mini-PCIe for 3G/4G |
| SIM |
1 x SIM Slot |
| WiFi on Board |
1 x WiFi Module Onboard (WIFI 5G, IEEE802.11 a/b/g/ac)
Optional: WIFI 2.4G
|
| LED Indicators |
1 x HDD LED, 1 x Power LED |
| JAHC |
WatchDog Timer |
0~255 Second Time Out Support |
| Auto Power On |
Power Activated Automatically Start |
| RTC |
Set Up Independently Every day, A Week as a Cycle |
| Remote Control |
By IR Controller for Power On/OFF |
Storage
|
eMMC |
32GB |
| Optional:16GB |
| Operation System |
Android |
Android7.1 |
Power
|
Power Type |
DC-IN |
| Power A dapter |
12V |
Mechanical
|
Dimensions (W × D × H) |
116.6mm x 107.4mm x 30mm |
| Fanless |
Yes |
| Construction |
Metal |
| Mounting(Optional) |
Desk/Wall Mounting and VESA Mounting Kit(JT-NUC-JC530) |
| Color |
Black |
| Environment |
Operating Temperature |
0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow |
| Relative Humidity |
95%@40℃ (non-condensing) |
| Certification |
Certification |
CE, FCC |
|
| Description |
- RK3399 Dual-core ARM Cortex-A72 and Quad - core ARM Cortex-A53
- Onboard 4GB LPDDR4 Memory
- 1 x HDMI,Supporting 4K Display
- 1 x HDMI, Supporting 2K Display
- eMMC Onboard 32GB
- 1x USB 3.0(OTG), 3 x USB 2.0，1 x RS232
- 1 x RJ45, 1 x Mini-PCIe for 3G/4G, 1 x SIM Slot
|
