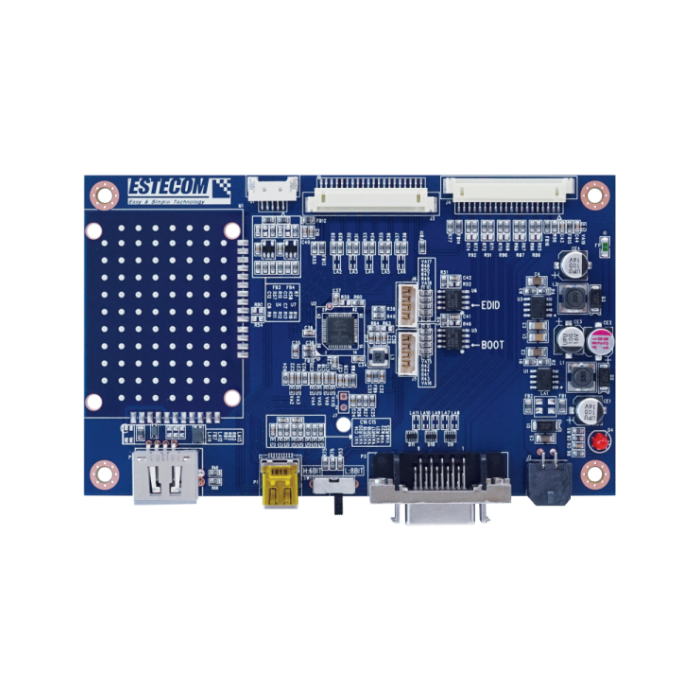

LVDS/DP buffer board

In stock

SKU: DP to LVDS

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / DP to LVDS

DP to LVDS is Carl zeiss PC of dedicated an advanced TFT-LCD Monitor Control Board.
It is suitable for video resolution XGA @ 60Hz video modes, the full display area of the module is used.
The design is implemented as a single printed circuit board.

More Information

Specifications	Dimension 110.3mm x 76.2mm Input Signal LVDS or Displayport Output Signal LVDS Maximum Resolution 1024 x 768 Input Power Voltage +12VDC Touch controller option Baanto touch
Description	DP to LVDS is Carl zeiss PC of dedicated an advanced TFT-LCD Monitor Control Board. It is suitable for video resolution XGA @ 60Hz video modes, the full display area of the module is used. The design is implemented as a single printed circuit board.

Specifications

Dimension

110.3mm x 76.2mm

Input Signal

LVDS or Displayport

Output Signal

LVDS

Maximum Resolution

1024 x 768

Input Power Voltage

+12VDC

Touch controller option

Baanto touch
