A fanless embedded system powered by the Intel Atom x5-E3930 processor, it is designed for harsh environment applications, and supports DIN rail mounting method.
Key Features:
Fanless design
Intel Atom x5-E3930 processor 1.3GHz (up to 1.8 GHz, dual-core)
Supports DDR3L SO-DIMM (system max. 8 GB)
Supports one mSATA and one 2.5” SATA HDD
Wide range DC power input (12 V ~ 24 V)
Extended temperature fanless design supports -20°C ~ 60°C (with SSD)
Two PCIe Mini card slots
Four RS-232/422/485 serial interfaces
8-bit digital I/O (4-bit output, 4-bit input)
Supports two GbE, four USB 3.0 and two HDMI 1.4b
Low power consumption
DIN rail mounting support
RoHS compliant
In stock
SKU
DRPC-130-AL-E1-R10
Have a Question about this product?
Description /

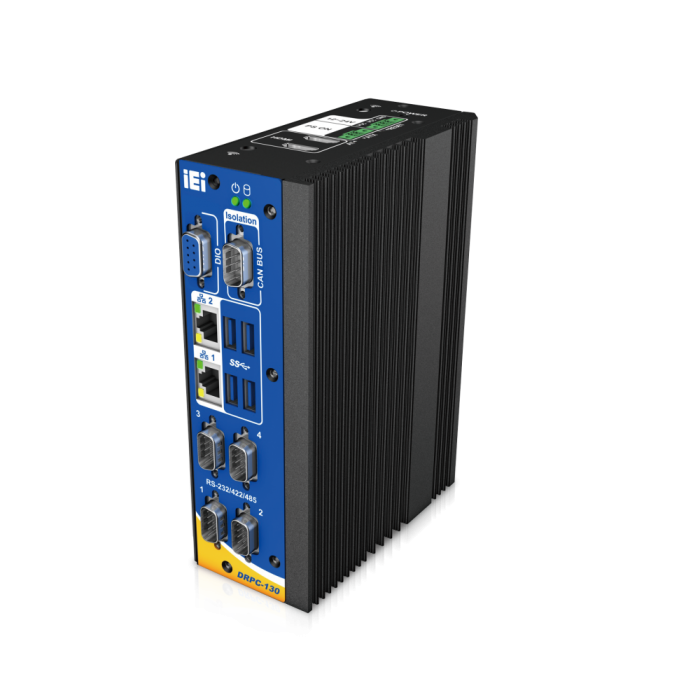

DRPC-130-BT Fanless DIN-Rail Embedded System
The DRPC-130-AL accepts a wide range of DC power input (12 V ~ 24 V), allowing it to be powered anywhere. Four USB 3.0, two GbE, four RS-232/422/485, one 8-bit digital I/O, two HDMI and isolated CAN bus provide rich I/O options for various applications.
Key Features:
Fanless design
Intel Atom x5-E3930 processor 1.3GHz (up to 1.8 GHz, dual-core)
Supports DDR3L SO-DIMM (system max. 8 GB)
Supports one mSATA and one 2.5” SATA HDD
Wide range DC power input (12 V ~ 24 V)
Extended temperature fanless design supports -20°C ~ 60°C (with SSD)
2 x RJ-45 1 x PCIe GbE by Intel® I211 controller 1
COM Port
4 x RS-232/422/485 (DB-9)
Digital I/O
8-bit digital I/O, 4-bit input/4-bit output (DB-9)
CAN-bus
1 x DB-9 w/2,5kV isolation protection,support 2-port CAN-bus
Display
2 x HDMI 1.4b
Resolution
Up to 3840x2160@30Hz
SIM
1x internal on-board SIM slot
Wireless
802.1 b/g/n/ac (optional)
TPM
1 x TPM 2.0 (2x10 pin) (optional)
Others
1 x Powert Button 1 x Reset Button 1 x AT/ATX Switch 1 x LED for HDD (Green) 1 x LED für Power (Red)
PCIe Mini
1 x Full Size PCIe Mini slot 1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
Power input
3-pin terminal block: 12 v ~ 12 V DC
Remote PWR
PSON 2-pin terminal block
Power Consumption
TBD
Mounting
DIN-rail/Wall mounting
Operating Temperature
-20°C ~ 70°C with air flow (SSD), 10% ~ 95%, non-condensing
Storage Temperature
-20°C ~ 85°C with air flow (SSD), 10% ~ 90%, non-condensing
Operating Shock
Half-sine wave shock 5G, 11ms 100 shocks per axis, IEC68-2-27
Operating Vibration
MIL-STD-810G 514.6C-1 (SSD)
Weight (Net/Gross)
1.4 kg/2.5 kg
Safety/EMC
CE/FCC
Watchdog Timer
Programmable 1~255 sec/min
IP Level
IP40
Supported OS
Microsoft® Windows® 10
Description
The DRPC-130-AL accepts a wide range of DC power input (12 V ~ 24 V), allowing it to be powered anywhere. Four USB 3.0, two GbE, four RS-232/422/485, one 8-bit digital I/O, two HDMI and isolated CAN bus provide rich I/O options for various applications.
Key Features:
Fanless design
Intel Atom x5-E3930 processor 1.3GHz (up to 1.8 GHz, dual-core)
Supports DDR3L SO-DIMM (system max. 8 GB)
Supports one mSATA and one 2.5” SATA HDD
Wide range DC power input (12 V ~ 24 V)
Extended temperature fanless design supports -20°C ~ 60°C (with SSD)
