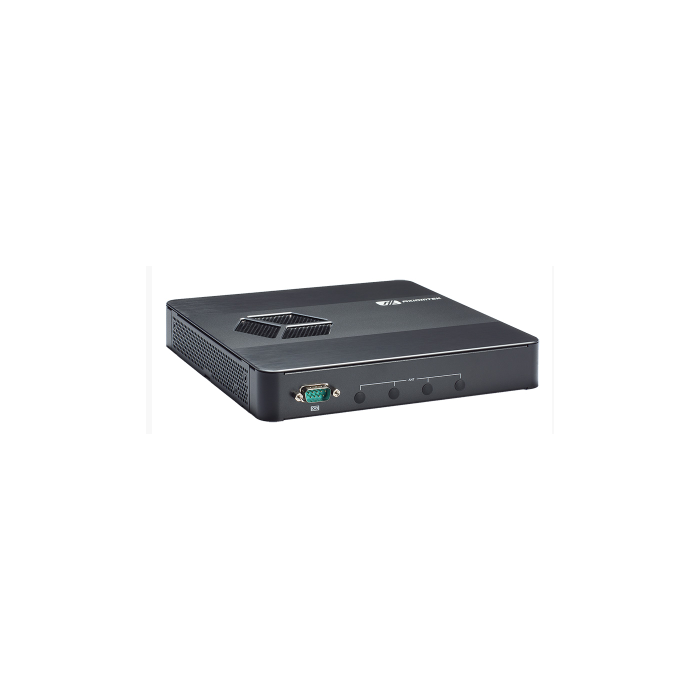

DSP500-523, 8th gen i series, 3xHDMI Media Player
Digital Signage Player with 8th Gen Intel® Core™ i7/i5/i3 & Pentium® Processor, 3 HDMI 2.0, 4 USB and GbE LAN
-
SKU
-
DSP500-523
{ $el.scrollIntoView({behavior: 'smooth', block: 'center'}) })">
Have a Question about this product?
Description /
DSP500-523, 8th gen i series, 3xHDMI Media Player
Digital Signage Player with 8th Gen Intel® Core™ i7/i5/i3 & Pentium® Processor, 3 HDMI 2.0, 4 USB and GbE LAN
· 8th gen Intel® Core™ i7/i5/i3 & Pentium® processor (Coffee Lake)
· 2x DDR4-2400 SO-DIMM for up to 32GB of memory
· 3x HDMI 2.0
· 4x USB 3.1 and GbE LAN
· 1x M.2 Key E 2230 for Wi-Fi/BT
· 1x M.2 Key B 3042 for 4G LTE
· 1x M.2 Key M 2280 for storage
More Information
| Brand |
Axiomtek |
| Specifications |
| CPU | - Intel® Core™ i7-8700T Hexa-core processor 2.4GHz 12MB Cache, TDP 35W
- Intel® Core™ i5-8500T Hexa-core processor 2.4GHz 12MB Cache, TDP 35W
- Intel® Core™ i3-8100T Hexa-core processor 2.1GHz 9MB Cache, TDP 35W
- Intel® Pentium® G5400T Dual-core processor 3.1GHz 4MB Cache, TDP 35W
| | Chipset | | | System Memory | - 2 x DDR4-2666 SO-DIMM, up to 32GB
| | Watchdog Timer | - 255 levels, 1 to 255 sec./min.
| | COM | | | USB | | | Ethernet | - 1 x 10/100/1000 Mbps Ethernet
| | Display | - 3 x HDMI 2.0 or 2 x HDMI 2.0
| | Audio | | | Storage | - 1x M.2 Key M 2280 (SATA & NVMe)
| | Expansion | - 1 x M.2 Key E 2230 for Wi-Fi/BT (optional)
- 1 x M.2 Key B 3042 for 4G/LTE (optional)
- 1 x SIM card slot
| | Others | - 1 x Device management
- 1 x Remote switch
- 1 x Screw type VDC power input
- 1 x VDC power input connector
- 4 x Antenna opening
- TPM 2.0
| | Wi-Fi | - 1 x M.2 Key E 2230 for Wi-Fi/BT (optional)
- 1 x M.2 Key B 3042 for 4G/LTE (optional)
- 1 x SIM card slot
- 4 x Antenna opening
| | Power Supply | | | Vibration Endurance | - 3 Grms with M.2 storage (5 - 500Hz, X, Y, Z directions)
| | Operating Temperature | - 0ºC to +45ºC (+32ºF to +113ºF)
| Dimensions (W x D x H) | - 202 x 196 x 39 mm (7.95” x 7.71” x 1.53”)
| | Weight (net/gross) | | | Mounting | | | EOS Support | | | Software Support | | | Certifications | | |
| Description |
Digital Signage Player with 8th Gen Intel® Core™ i7/i5/i3 & Pentium® Processor, 3 HDMI 2.0, 4 USB and GbE LAN · 8th gen Intel® Core™ i7/i5/i3 & Pentium® processor (Coffee Lake) · 2x DDR4-2400 SO-DIMM for up to 32GB of memory · 3x HDMI 2.0 · 4x USB 3.1 and GbE LAN · 1x M.2 Key E 2230 for Wi-Fi/BT · 1x M.2 Key B 3042 for 4G LTE · 1x M.2 Key M 2280 for storage |
