E2SS-32R2

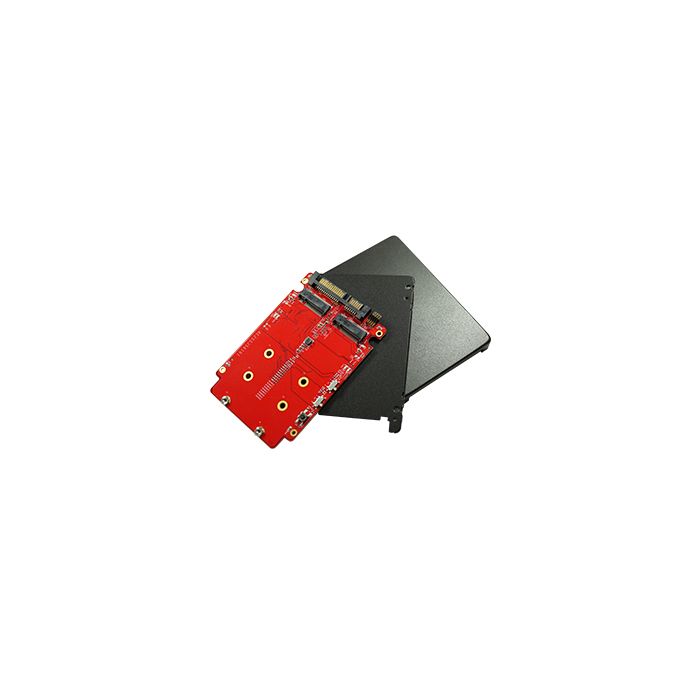

2.5” to Dual M.2 RAID Module

In stock

SKU
E2SS-32R2

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / E2SS-32R2

2.5” to Dual M.2 RAID Module



·         Supports SATA to dual SATAIII Port Multiplier

·         Supports H/W RAID 0/1 over SATA

·         Supports USB 2.0 to dual SATAIII

·         Pin header for LED connection

·         3 years warranty

·         Industrial design, manufactured in Innodisk Taiwan

More Information

Specifications
Module Name E2SS-32R2
Module Type 2.5” to Dual M.2 RAID Module
Form Factor 2.5" SSD
Input I/F SATA III / USB 2.0
Output I/F SATA III
Output connector M.2 Key-B 2242/2260/2280 x 2
TDP 4W (5V x 800mA)
Dimensions (W x L x H/mm) 69.85 x 100 x 9.5
Temperature Operation: STD temp: 0°~70°C
Storage: -55°C ~ +95°C
Environment Vibration: 5G @7~2000Hz
Shock: 50G @ 0.5ms
Notes 1. RAID Mode Setting:
[J1:J2]
RAID0: 2:2, RAID1: 1:2, PM: 1:1
2. Press tact switch SW1 for reset.



Description

2.5” to Dual M.2 RAID Module



·         Supports SATA to dual SATAIII Port Multiplier

·         Supports H/W RAID 0/1 over SATA

·         Supports USB 2.0 to dual SATAIII

·         Pin header for LED connection

·         3 years warranty

·         Industrial design, manufactured in Innodisk Taiwan
