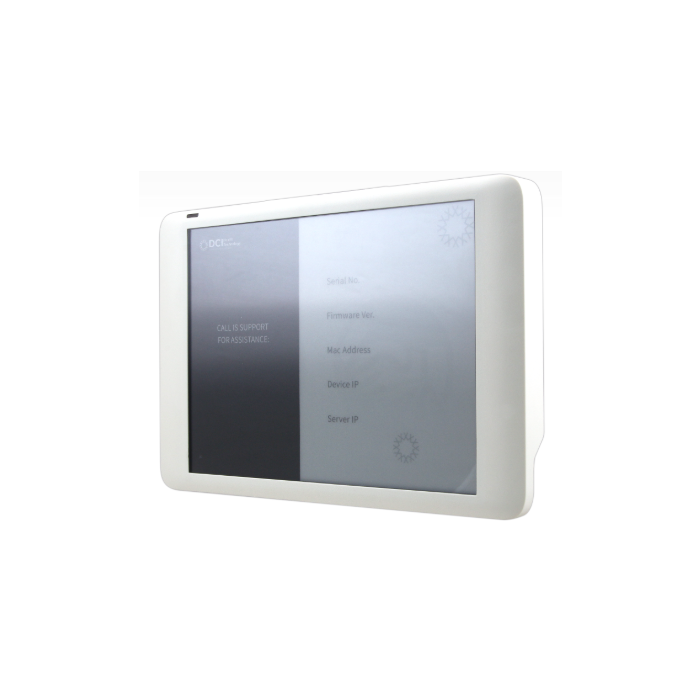

EBC-07R1 - 7.8" E Ink Bedside Card

7.8” Eink panel with 1872*1404 pixels, Display colors – black and white, 2.4GHz WiFi (IEEE 802.11 b/g/n) standard, Operation with six AAA batteries, Support external USB power

In stock

SKU
EBC-07R1 - 7.8" E Ink Bedside Card

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / EBC-07R1 - 7.8" E Ink Bedside Card

7.8” Eink panel with 1872*1404 pixels, Display colors – black and white, 2.4GHz WiFi (IEEE 802.11 b/g/n) standard, Operation with six AAA batteries, Support external USB power

More Information

Specifications
System
MCU CC3200
Panel
LCD Panel 7.8" E Ink Black and White
Pixel pitch 1872 x 1404
Touch Type Cover Lens only
External I/O
USB Port 1 USB Port for F/W update and provide external USB power
Wireless LAN Antenna Onboard PCB Antenna
Mechanical
Color White
Reliability
Operating Temperature 0 ~ 40 C
Operating Humidity 5%~90% relative humidity, non-condensing
Storage Temperature -20 ~ 60 C
Packaging Drop Test 80cm, 4 corners, 2 faces
Mechanical & Environmental
Dimensions(W x L x D) 138mm *200mm * 18mm
Vibration Test 1Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test 10Grms, IEC 60068-2-27, Half Sine, 11ms
Dust and Rain Test Front panel IP65
Certifications
Certification Information NCC , FCC
Power Requirement
Battery 6 x AAA batteries
Specification
Frequency 2.4GHz WiFi (IEEE 802.11 b/g/n) standard


Description

7.8” Eink panel with 1872*1404 pixels, Display colors – black and white, 2.4GHz WiFi (IEEE 802.11 b/g/n) standard, Operation with six AAA batteries, Support external USB power
