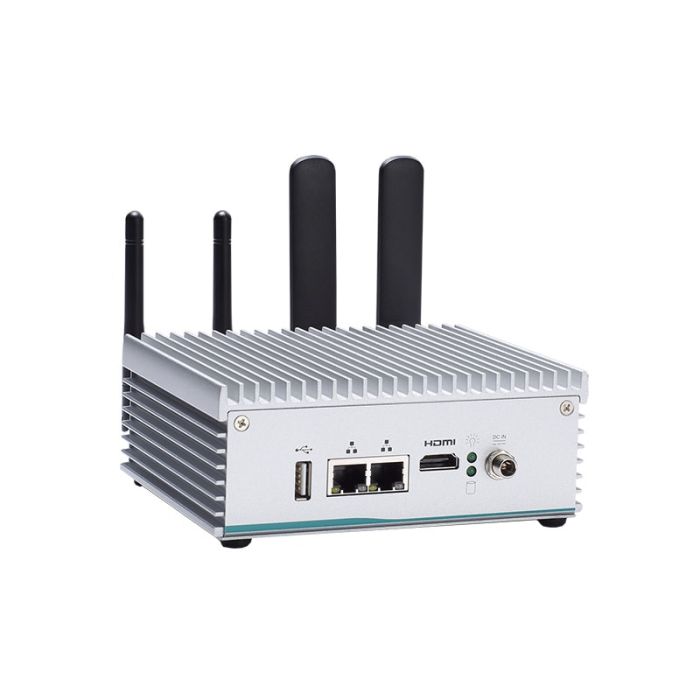

eBOX560-900-FL - NVIDIA Jetson TX2 with Pascal GPU

Standard Color

Silver

Construction

Aluminum extrusion and heavy-duty steel, IP40

CPU Board

NVIDIA® Jetson™ TX2

CPU

HMP Dual Denver 2/2 MB L2 + Quad ARM® A57/2 MB L2

GPU

NVIDIA® Pascal™, 256 CUDA cores

System Memory

1 x 8GB 128-bit LPDDR4@1866 MHz onboard

Carried Board

SBC87900

System I/O Outlet

1 x HDMI 2.0 with 4K2K supported

2 x 10/100/1000 Mbps Ethernet (NVIDIA® + Intel® i210-IT)

1 x USB 2.0

1 x 12 VDC power input connector

4 x SMA-type antenna connector

Watchdog Timer

Built-in TX2

Storage

Onboard 32GB eMMC (via Jetson™ TX2) 1 x M.2 Key M 2280 with PCIe x4 Gen2 for NVMe SSD (optional)

Wireless Module

802.11ac WLAN, Bluetooth onboard with N Jack type antennas

Expansion Interface

1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) *Either Mini PCIe connector or LAN Intel® i210-IT (Jumper Select) 1 x SIM slot

TPM

N/A

System Indicator

1 x green LED for system power-on

1 x green LED for storage

Power Supply

12 VDC screw type

Operating Temperature

-30°C to +60°C (-22°F to +140°F)

Humidity

10% to 95%, non-condensing

Vibration Endurance

3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)

Dimensions

141.6 mm (5.57") (W) x 106 mm (4.17") (D) x 55 mm (2.17") (H)

Weight

(net/gross) 0.8 kg (1.76 lb)/1.5 kg (3.31 lb)

Certifications

CE, FCC Class A

OS Support

Linux Ubuntu 16.04
