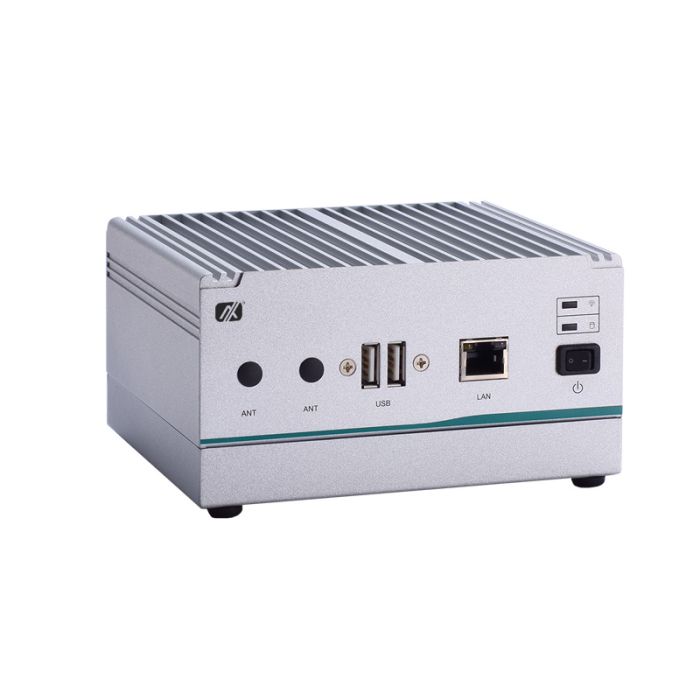

eBOX565-52R-FL Fanless Embedded System i5/Celeron

Axiomtek

Fanless Embedded System with Intel Core i5-8365UE/Celeron 4305UE Processor, HDMI/DisplayPort++, 2 GbE LAN, 2 COM, 4 USB and 9-36VDC Power Input

In stock

SKU
eBOX565-52R-FL

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / eBOX565-52R-FL Fanless Embedded System i5/Celeron

The eBOX565-52R-FL is a fanless embedded box powered by an Intel Core i5-8365UE/Celeron 4305UE Processor with HDMI and DisplayPort++ display I/O, and 2 LAN and COM ports. The systems also has 9-36VDC power input allowing for vehicle use.

Features

  • 8th gen Intel® Core™ and Celeron® processor onboard (Whisky Lake-U )
  • One M.2 Key E 2230 for Wi-Fi module
  • 260-pin DDR4-2400 SO-DIMM, max. up to 32GB
  • 2 GbE LAN and 2 USB 3.1 Gen2
  • Supports DisplayPort++ and HDMI for dual independent displays
  • Multiple mounting designs: Wall mount, DIN-rail and VESA mount
  • 9 to 36 VDC wide-range input

More Information

Brand Axiomtek
Specifications
CPU
  • Intel® Core™ i5-8365UE, 1.6 GHz
  • Intel® Celeron® 4305UE, 2.0 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-2400 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 2 x USB 2.0
  • 2 x USB 3.1 Gen2
Ethernet/PoE
  • 2 x 10/100/1000 Mbps Ethernet (Intel® i219-LM, Intel® i211-AT)
Display
  • 1 x DisplayPort++
  • 1 x HDMI (lockable)
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5" SATA HDD drive bay (max. up 9.5 mm height)
Expansion
  • 1 x M.2 Key E 2230 (for Wi-Fi)
Others
  • 1 x ATX power switch
  • 1 x AT/ATX quick switch
  • 1 x Screw type VDC power input connector
  • 2 x Antenna opening
  • 1 x Phoenix type VDC power input connector
Power
  • 9 - 36 VDC
Watchdog Timer
  • 65535 levels, 1 to 65536 sec.
Construction
  • Aluminium extrusion and heavy-duty steel, IP40
Operating Temperature
  • -10°C to +50°C (+14°F to +122°F) with 0.7 m/s airflow (with W.T. SSD/DRAM)
Relative Humidity
  • 10% - 90%, non-condensing
Vibration
  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock
  • IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Dimensions
(W x D x H)
  • 141.6 x 106 x 73 mm (5.57" x 4.17" x 2.87")
Weight (net/gross)
  • 1.1 kg (2.43 lb)/1.8 kg (3.96 lb)
Certifications
  • CE, FCC Class A
EOS Support
  • Win 10 IoT, Linux
Software Support
  • AMS.AXView
Mounting
  • DIN-Rail kit
  • VESA mount kit
  • Wall mount kit
Description

The eBOX565-52R-FL is a fanless embedded box powered by an Intel Core i5-8365UE/Celeron 4305UE Processor with HDMI and DisplayPort++ display I/O, and 2 LAN and COM ports. The systems also has 9-36VDC power input allowing for vehicle use.

Features

  • 8th gen Intel® Core™ and Celeron® processor onboard (Whisky Lake-U )
  • One M.2 Key E 2230 for Wi-Fi module
  • 260-pin DDR4-2400 SO-DIMM, max. up to 32GB
  • 2 GbE LAN and 2 USB 3.1 Gen2
  • Supports DisplayPort++ and HDMI for dual independent displays
  • Multiple mounting designs: Wall mount, DIN-rail and VESA mount
  • 9 to 36 VDC wide-range input
