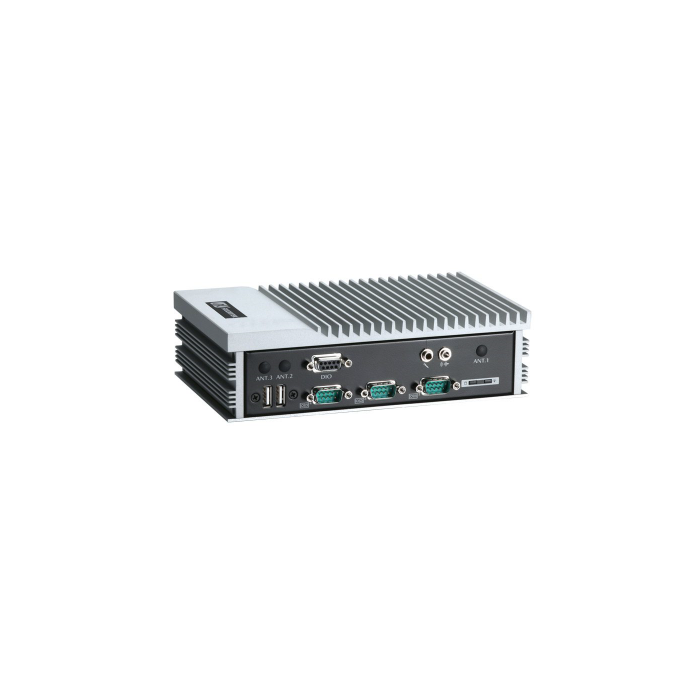

Shop eBOX620-841-FL Fanless Embedded System with Atom E3845

Axiomtek

Fanless Embedded System with Intel® Atom™ Processor E3845 1.91 GHz, HDMI, VGA, 2 GbE LANs, 4 USB and 4 COM

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / eBOX620-841-FL Fanless Embedded System with Atom E3845

Fanless Embedded System with Intel® Atom™ Processor E3845 1.91 GHz, HDMI, VGA, 2 GbE LANs, 4 USB and 4 COM

· Intel® Atom™ E3845 1.91 GHz quad-core SoC

· 204-pin DDR3L-1066/1333 SO-DIMM, up to 8GB

· Fanless operation design with full feature I/O

· 2 RS-232/422/485 and 2 RS-232 ports

· One 2.5” SATA drive bay, 1 CFast™ slot and mSATA

· Supports 8 channel programmable DI/DO and 2 PCI Express Mini Card slots

· Supports VGA and HDMI dual display

Brand

Axiomtek

Specifications

CPU	Intel® Atom™ processor E3845 1.91GHz
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8 GB
BIOS	AMI
COM	2 x RS-232/422/485 2 x RS-232
USB	4 x USB 2.0
Ethernet/PoE	2 x 10/100/1000 Mbps (Intel® i210IT)
Display	1 x VGA 1 x HDMI
Digital I/O	8 channel programmable DI/DO
Audio	Mic-in/Line-out
Storage	1 x 2.5” SATA HDD 1 x CFast™ 1 x mSATA
Expansion	1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x Half-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x SIM slot
Others	3 x SMA type connector opening for antenna
Power Supply	Input AC 90-264V, AC 60W adapter with lock Output: DC 12V @ 5A
Watchdog Timer	255 levels, 1 ~ 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-40°C~+60°C (-40°F~+140°F)
Relative Humidity	10% ~ 90% , non-condensing
Vibration	3 Grms with CFast™ (5-500Hz, X, Y, Z directions)
Dimensions (W x D x H)	200 x 120 x 56 mm (7.87” x 4.72” x 2.2”)
Weight (net/gross)	2 kg (4.41 lb)/ 2.7 kg (5.95 lb)
Certifications	CE
EOS Support	WES8, WES7
Mounting	Wall mount VESA arm DIN-rail
