eBOX626A Fanless Embedded System with Celeron J6412
Axiomtek

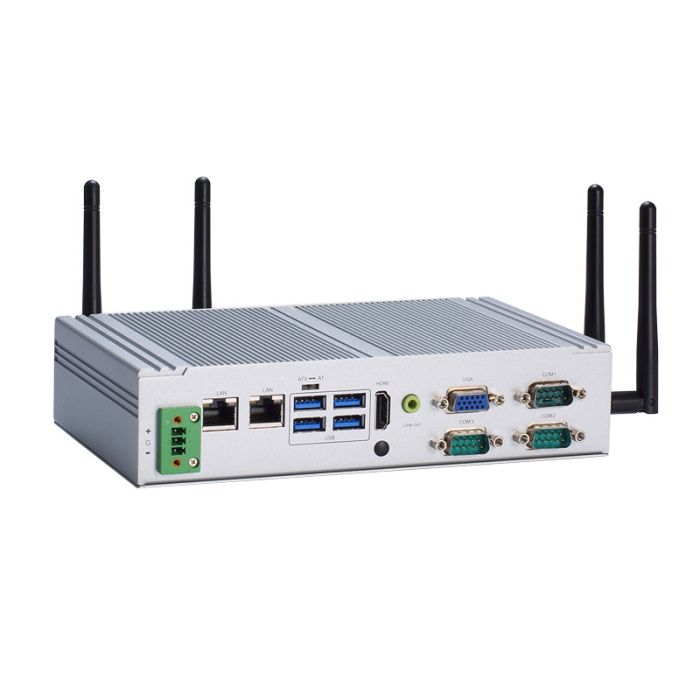

eBOX626A Fanless Embedded System with Celeron J6412
eBOX626A Fanless Embedded System Intel® Celeron J6412 2.5GbE USB 3.1 M.2 2230 Key E
Key Features:
Intel® Celeron® Processor J6412 quad-core onboard
-10 °C to +60 °C operating temperature
1 HDMI and 1 VGA for dual-view display
Trusted Platform Module (TPM) 2.0 onboard
M.2 Key E for WiFi/WiFi 6 connection
9-36 VDC Wide range power input
In stock
SKU
eBOX626A-EL-C1
Have a Question about this product?
Description /
eBOX626A Fanless Embedded System with Celeron J6412
The eBOX626 Fanless Embedded System Features an Intel® Celeron J6412 2.0 GHz and is equipped with four USB 3.1 ports alongside two LAN connections with 2.5 and 1.0 gigabit speed capabilities. A single DDR4 SO-DIMM socket allows up to 32GB of system memory alongside M.2 and PCI Express Mini interfaces for use with Wi-Fi or SATA expansions.
Key Features:
Intel® Celeron® Processor J6412 quad-core onboard
-10 °C to +60 °C operating temperature
1 HDMI and 1 VGA for dual-view display
Trusted Platform Module (TPM) 2.0 onboard
M.2 Key E for WiFi/WiFi 6 connection
9-36 VDC Wide range power input
More Information
Brand
Axiomtek
Specifications
Standard Color
Silver
Construction
Aluminum extrusion and heavy-duty steel, IP40
CPU
Intel® Celeron® processor J6412, up to 10W
System Memory
1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
Chipset
SoC integrated
BIOS
AMI
System I/O Outlet
1 x Audio (Line-out)
1 x HDMI 1.4b (lockable)
1 x VGA
1 x RS-232/422/485 (COM1)
2 x RS-232 (COM2/3)
4 x USB 3.1 Gen2
2 x USB 2.0
1 x 10/100/1000/2500 Mbps Ethernet (Intel® i226-LM)
1 x 10/100/1000 Mbps Ethernet (Intel® i210-AT)
1 x Phoenix type VDC power input connector
1 x ATX power switch
1 x ATX/AT quick switch
1 x Remote power switch
4 x Antenna opening
Watchdog Timer
255 levels, 1 to 255 sec.
Storage
1 x 2.5" SATA HDD drive bay (up to 9.5 mm height)
1 x mSATA (enabled in BIOS setting)
Expansion Interface
1 x Full size internal PCI Express Mini Card slot (mSATA/SIM) (USB + PCIE + SATA) 1 x M.2 2230 Key E (PCIE + USB)
TPM
TPM 2.0
System Indicator
1 x Green LED for system power-on
1 x Yellow LED for HDD/SSD active
Power Supply
9 to 36 VDC
Operating Temperature
-10°C to +60°C (+14°F to +140°F) (with W.T. SSD/DRAM)
Humidity
10% - 95%, non-condensing
Shock Vibration
IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
200 mm (7.87") (W) x 120 mm (4.72") (D) x 46 mm (1.81") (H)
Weight (net/gross)
1.2 kg (2.43 lb)/1.8 kg (3.97 lb)
Certifications
CE, FCC Class A, UKCA
EOS Support
Win10 IoT, Win11 IoT, Linux
Description
The eBOX626 Fanless Embedded System Features an Intel® Celeron J6412 2.0 GHz and is equipped with four USB 3.1 ports alongside two LAN connections with 2.5 and 1.0 gigabit speed capabilities. A single DDR4 SO-DIMM socket allows up to 32GB of system memory alongside M.2 and PCI Express Mini interfaces for use with Wi-Fi or SATA expansions.
