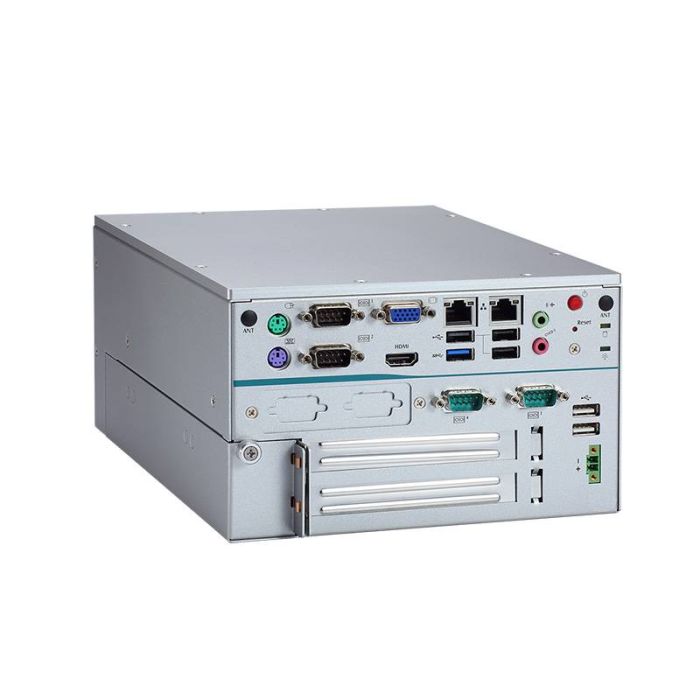

eBOX638-842-FL - Celeron J1900, 9 to 36 VDC Input
Axiomtek
eBOX638-842-FL - Celeron J1900, 9 to 36 VDC Input
Fanless Embedded System with Intel® Celeron® Processor J1900, VGA, HDMI, 4 COM, 6 USB, Dual Expansion Slots and 9 to 36 VDC Input
-
SKU
-
eBOX638-842-FL
Have a Question about this product?
Description /
eBOX638-842-FL - Celeron J1900, 9 to 36 VDC Input
Fanless Embedded System with Intel® Celeron® Processor J1900, VGA, HDMI, 4 COM, 6 USB, Dual Expansion Slots and 9 to 36 VDC Input
● Intel® Celeron® Processor J1900 2.0 GHz
● Fanless operation design with full feature I/O
● HDMI and VGA with dual-view supported
● 6 USB, 2 LANs and 4 COM
● PCI Express Mini Card slot
● Flexible I/O window design
● Dual PCI or PCIe x1 expansion slots
● 9 to 36 VDC wide range power input
More Information
| Brand |
Axiomtek |
| Specifications |
|
Standard Color
|
Silver
|
|
Construction
|
Aluminum extrusion and heavy-duty steel, IP40
|
|
CPU
|
Intel® Celeron® Quad-Core J1900 2.0 GHz
|
|
System Memory
|
1 x 204-pin DDR3L-1066/1333 SO-DIMM, up to 8GB
|
|
Chipset
|
SoC integrated
|
|
BIOS
|
AMI
|
|
System I/O Outlet
|
2 x RS-232/422/485
2 x RS-232
2 x 10/100/1000Mbps Ethernet (Realtek 8111F)
5 x USB 2.0
1 x USB 3.0
1 x Audio (Mic-in/Line-out)
1 x PS/2 keyboard & mouse
1 x HDMI
1 x VGA
1 x VDC power input connector
1 x ATX power switch
1 x Reset switch
2 x SMA-type antenna connector
1 x Flexible I/O window (default: 2 x DB9 half cut bracket)
|
|
Watchdog Timer
|
255 levels, 1 to 255 sec.
|
|
Storage
|
1 x 2.5” SATA HDD drive bay (max. up 15 mm height)
1 x mSATA (enabled in BIOS setting)
|
|
Expansion Interface
|
2 x PCI or 2 x PCIe x1 slots 1 x Full-size PCI Express Mini Card slot (PCI Express + USB signal)
1 x SIM slot
|
|
TPM
|
N/A
|
|
System Indicator
|
1 x green LED for system power
1 x yellow LED for HDD active
|
|
Power Input
|
9 to 36 VDC
|
|
Operating Temperature
|
-10°C to +55°C (14°F to +131 F ) (with W.T. DRAM & SSD)
|
|
Humidity
|
10% to 90%, non-condensing
|
|
Vibration Endurance
|
2 Grms with SSD (5 to 500 Hz, X, Y, Z directions)
|
|
Dimensions
|
192mm (7.56”) (W) x 230 mm (9.05”) (D) x 115.8 mm (4.56") (H)
|
|
Weight
|
(net/gross) 4.1 kg (9.03 lb) /4.8 kg (10.58 lb)
|
|
Certifications
|
CE compliance
|
|
EOS support
|
WES7, Win 10 IoT
|
|
|
|
|
| Description |
Fanless Embedded System with Intel® Celeron® Processor J1900, VGA, HDMI, 4 COM, 6 USB, Dual Expansion Slots and 9 to 36 VDC Input
● Intel® Celeron® Processor J1900 2.0 GHz
● Fanless operation design with full feature I/O
● HDMI and VGA with dual-view supported
● 6 USB, 2 LANs and 4 COM
● PCI Express Mini Card slot
● Flexible I/O window design
● Dual PCI or PCIe x1 expansion slots
● 9 to 36 VDC wide range power input
|
