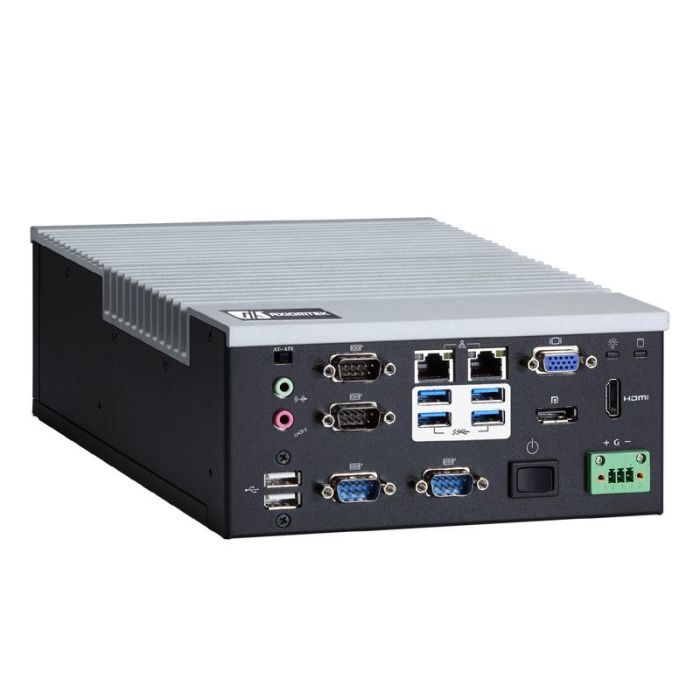

eBOX640-500-FL Fanless Embedded System with 7th/6th Gen
Fanless Embedded System with LGA1151 Socket 7th/6th Gen Intel® Core™ & Celeron® Processor, Intel® H110, HDMI, DisplayPort, VGA, 6 USB, 4 COM, PCI Express Mini Card Slot and 10 to 30 VDC
-
SKU
-
eBOX640-500-FL-DC
{ $el.scrollIntoView({behavior: 'smooth', block: 'center'}) })">
Have a Question about this product?
Description /
eBOX640-500-FL Fanless Embedded System with 7th/6th Gen
Fanless Embedded System with LGA1151 Socket 7th/6th Gen Intel® Core™ & Celeron® Processor, Intel® H110, HDMI, DisplayPort, VGA, 6 USB, 4 COM, PCI Express Mini Card Slot and 10 to 30 VDC
● LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (Kaby Lake/Skylake)
● Supports 4 COM, 6 USB and 2 GbE LANs
● Two 2.5" SATA drive bay
● PCI Express Mini Card slot and SIM slot
● Front I/O connectivity design
● 10 to 30 VDC wide range power input
More Information
| Brand |
Axiomtek |
| Specifications |
|
Standard Color
|
Silver-black
|
|
Construction
|
Aluminum extrusion and heavy-duty steel, IP40
|
|
CPU
|
7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 35W)
|
|
System Memory
|
2 x 288-pin DDR4-2133 DIMM, up to 32GB
|
|
Chipset
|
Intel® H110
|
|
BIOS
|
AMI
|
|
System I/O Outlet
|
1 x RS-232/422/485
3 x RS-232
2 x 10/100/1000Mbps Ethernet (Intel® i219-LM, i211-AT)
2 x USB 2.0
4 x USB 3.0
1 x Audio (Mic-in/Line-out)
1 x DisplayPort
1 x HDMI
1 x VGA
1 x Phoenix type VDC power input connector
1 x AT/ATX quick switch
2 x SMA-type antenna connector
1 x ATX power switch
|
|
Watchdog Timer
|
255 levels, 1 to 255 sec.
|
|
Storage
|
2 x 2.5” SATA HDD drive bay (max. up 15 mm height)
1 x mSATA (enabled in BIOS setting)
|
|
Expansion Interface
|
1x Full-size PCI Express Mini Card slot with mSATA supported (PCI Express + USB signal)
1 x SIM slot
|
|
TPM
|
N/A
|
|
System Indicator
|
1 x green for system power
1 x orange LED for HDD active
|
|
Power Input
|
10 to 30 VDC
|
|
Operating Temperature
|
-10°C to +55°C (+14°F to +131°F) (with W.T. DRAM/ SSD for Skylake) -10°C to +50°C (+14°F to +122°F) (with W.T. DRAM/ SSD for Kaby Lake)
|
|
Humidity
|
10% to 90%, non-condensing
|
|
Vibration Endurance
|
2 Grms with SSD (5 to 500 Hz, X, Y, Z directions)
|
|
Dimensions
|
182 mm (7.16") (W) x 235.7mm (9.27") (D) x 82 mm (3.23") (H)
|
|
Weight
|
(net/gross) 3 kg (6.61 lb)/3.6 kg (7.94 lb)
|
|
Certifications
|
CE
|
|
EOS support
|
Win 10 IoT, WE8S Linux
|
|
|
|
|
| Description |
Fanless Embedded System with LGA1151 Socket 7th/6th Gen Intel® Core™ & Celeron® Processor, Intel® H110, HDMI, DisplayPort, VGA, 6 USB, 4 COM, PCI Express Mini Card Slot and 10 to 30 VDC
● LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (Kaby Lake/Skylake)
● Supports 4 COM, 6 USB and 2 GbE LANs
● Two 2.5" SATA drive bay
● PCI Express Mini Card slot and SIM slot
● Front I/O connectivity design
● 10 to 30 VDC wide range power input
|
