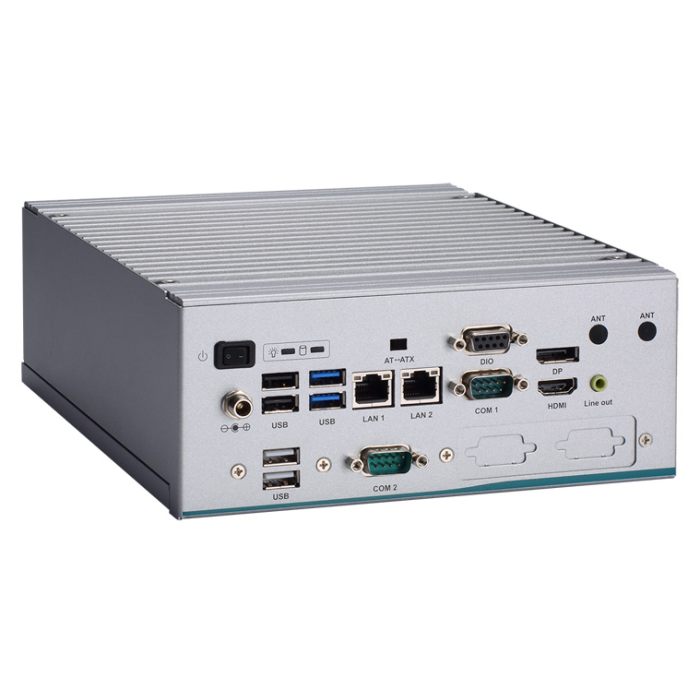

Shop eBOX640-521-FL Fanless Embedded System with 9th/8th Gen

Axiomtek

Fanless Embedded System with LGA1151 Socket 8th Gen Intel® Core™ & Celeron® Processor, Intel® H310, HDMI, DisplayPort, 6 USB, 2 COM and 8-CH DI/DO

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / eBOX640-521-FL Fanless Embedded System with 9th/8th Gen

LGA1151 socket 8th gen Intel® Core™ i7/i5/i3 & Celeron® processor (Coffee Lake)

Supports 2 COM, 6 USB and 8-CH DI/DO

Two 2.5" SATA drive bay

M.2 Key E 2230 for Wi-Fi

Front I/O connectivity design

12/19 to 24 VDC power input via DC-Jack

Flexible I/O window supported

Brand

Axiomtek

Specifications

CPU	LGA1151 socket 8th gen Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 35W)
Chipset	Intel® H310
System Memory	2 x 260-pin DDR4-2400 SO-DIMM, up to 32GB
BIOS	AMI
COM	1 x RS-232/422/485 1 x RS-232
USB	2 x USB 3.0 4 x USB 2.0
Ethernet/PoE	2 x 10/100/1000Mbps (Intel® i219V-LM, i211-AT)
Display	1 x DisplayPort 1 x HDMI
Digital I/O	1 x 8-CH DIO (4-in/4-out)
Audio	1 x Audio (Line-out)
Storage	2 x 2.5” SATA HDD drive bay (max. up 9.5 mm height)
Expansion	1 x Full-size PCI-Express Mini Card slot (PCIe + SATA + USB) 1 x M.2 Key E 2230 (for Wi-Fi)
Others	TPM 2.0
Power Supply	12/19 to 24 VDC, 9.02-5.2A
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-10°C to +50°C (14°F to 122°F) (with W.T. SSD/DRAM)
Relative Humidity	10% - 90%, non-condensing
Vibration	IEC 60068-2-64 (w/SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
Shock	IEC 60068-2-27 (w/SSD: 50G@wall mount,half sine, 11 ms duration)
Dimensions (W x D x H)	195 x 210.3 x 80 mm (7.67" x 8.27" x 3.14")
Weight (net/gross)	3 kg (6.61 lb)/3.6 kg (7.94 lb)
Certifications	CE, FCC Class A
EOS Support	Win 10 IoT, Linux
Software Support	N/A
Mounting	Wall mount kit DIN-rail kit
