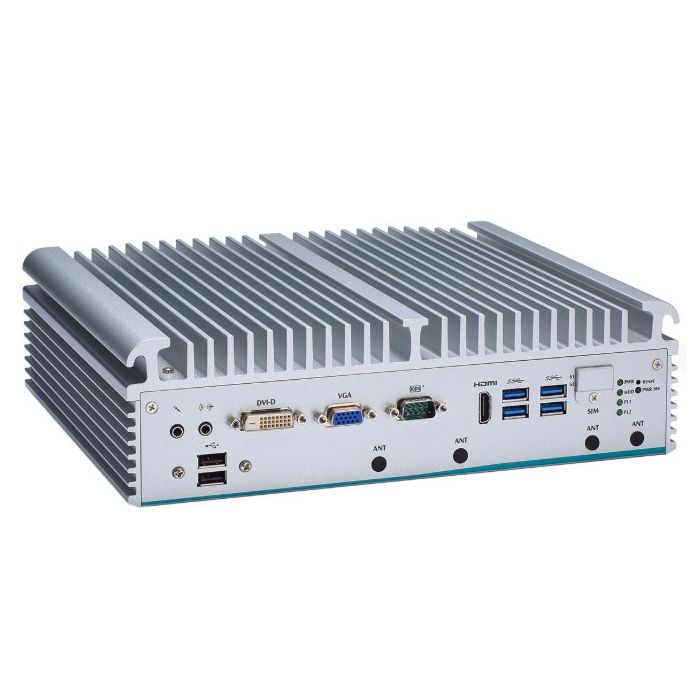

eBOX671-517-FL Fanless Embedded System
Fanless Embedded System with LGA1151 Socket 7th/6th Gen Intel Core i7/i5/i3 & Celeron Processor, Intel Q170, HDMI, DVI-D, VGA, 8-CH PoE, 6 USB and 24 VDC
Key Features:
- 7th/6th gen Intel Core i7/i5/i3 & Celeron processors (35W/65W) and Intel Q170
- 8-CH PoE onboard
- 2 front-access SIM slots
- Supports 6-in/2-out isolated DIO
- -40°C to +70°C extended operating temperature
- Optional ignition feature supported
In stock
- SKU
- eBOX671-517-FL-DC
Have a Question about this product?
Description / eBOX671-517-FL Fanless Embedded System
The eBOX671-517-FL supports 8-port Gigabit PoE and can work under harsh temperatures. Its eight Gigabit PoE ports allow multiple cabling to cameras and any PoE power device; and, the eBOX671-517-FL is specifically designed for security surveillance, optical inspection, and edge computing applications. This rugged NVR embedded box PC is powered by the 7th/6th generation Intel® Core™ (Kaby Lake/Skylake) or Intel® Celeron® processors with a 35W/65W TDP and comes with Intel® Q170 chipset. The eBOX671-517-FL comes with great expansion possibilities, including a flexible I/O module slot with a wide selection of PCIe Mini modules and four PCI Express Mini Card slots. It also has two front-accessible SIM slots and four SMA-type antenna connectors. For storage, this high-performance fanless embedded system has two SATA HDD drive bays with a height of up to 15 mm and one optional mSATA for RAID 0 and 1. Moreover, the embedded device supports two non-ECC 260-pin DDR4 SO-DIMM slots for up to 32GB of system memory.
More Information
| Brand | Axiomtek | ||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||
| Description | The eBOX671-517-FL supports 8-port Gigabit PoE and can work under harsh temperatures. Its eight Gigabit PoE ports allow multiple cabling to cameras and any PoE power device; and, the eBOX671-517-FL is specifically designed for security surveillance, optical inspection, and edge computing applications. This rugged NVR embedded box PC is powered by the 7th/6th generation Intel® Core™ (Kaby Lake/Skylake) or Intel® Celeron® processors with a 35W/65W TDP and comes with Intel® Q170 chipset. The eBOX671-517-FL comes with great expansion possibilities, including a flexible I/O module slot with a wide selection of PCIe Mini modules and four PCI Express Mini Card slots. It also has two front-accessible SIM slots and four SMA-type antenna connectors. For storage, this high-performance fanless embedded system has two SATA HDD drive bays with a height of up to 15 mm and one optional mSATA for RAID 0 and 1. Moreover, the embedded device supports two non-ECC 260-pin DDR4 SO-DIMM slots for up to 32GB of system memory. |
