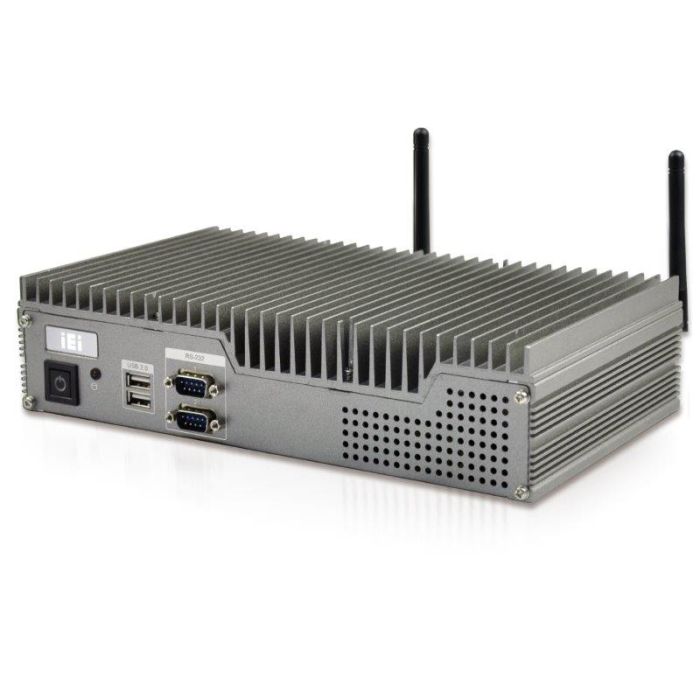

Shop ECN-380-QM87 i5-4400E, 2x SSD

Fanless embedded system with Intel® Core™ i5-4400E 2.7 GHz CPU or Intel® Celeron® 2000E 2.2 GHz CPU

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / ECN-380-QM87 i5-4400E, 2x SSD

Fanless embedded system with Intel® Core™ i5-4400E 2.7 GHz CPU or Intel® Celeron® 2000E 2.2 GHz CPU

● Intel® Core™ i5/Celeron® CPU » Intel® Core™ i5-4400E 2.7 GHz/Celeron® 2000E 2.2 GHz

● Triple video outputs » 2 x HDMI + VGA

● Two 2.5” SATA 6Gb/s HDD/SSD drive bays

Specifications

Spec Item	Description
I/O Interface
I/O Ports	2 x USB 3.0 4 x USB 2.0 Ethernet: 2 x RJ-45 LAN1: Intel® I217LM PHY with Intel® AMT 9.0 support LAN2: Intel® I210-AT PCIe controller 2 x RS-232 2 x HDMI 1 x VGA Resolution: VGA: Up to 1920 x 1200@60Hz HDMI: Up to 2500 x 1600@60Hz Audio:1 x Line-out, 1 x Mic-in Wireless 1 x 802.11b/g/n (optional)
Expansion Slots
Expansion Slots	PCIe Mini: 1 x Full-size PCIe Mini (support mSATA, SATA 6Gb/s signal only) 1 x Half-size PCIe Mini (only for iRIS-1010)
System
Cooling method / System Fan	Fanles
Drive Bays	2 x 2.5’ SATA HDD/SSD bay
Physical Characteristics
Construction	12 V@4.6 A(Intel® mobile Core™ i5-4400E with 4GB 1333MHz DDR3 memory)
Color
Color	Silver
Dimensions
Dimensions	265 x 134 x 56.7
Weight
Weight	2.4 kg/4.2 kg
Environment
Operating Temperature	-10°C~60°C with air flow (SSD)
Humidity	5% ~ 95%, non-condensing
