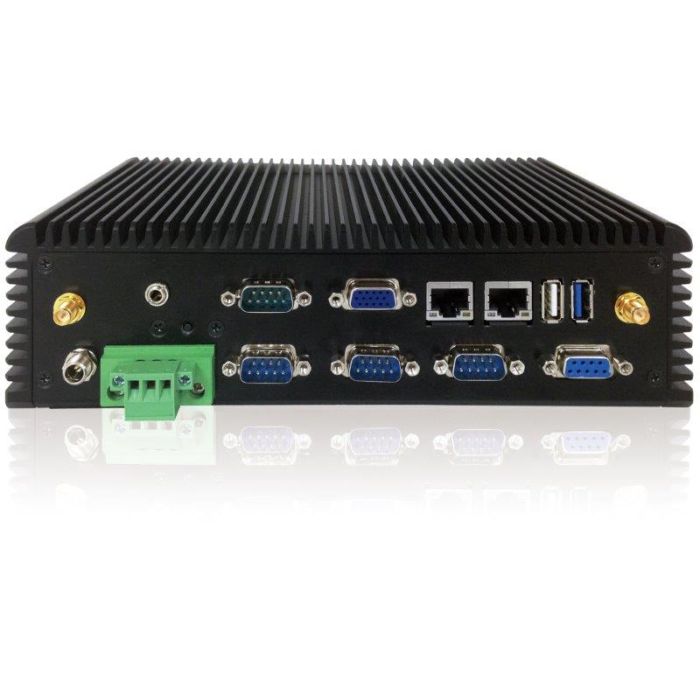

Shop ECW-281B-BT Fanless Embedded System with Celeron J1900

IEI Integration Corp.

Fanless embedded system with WAFER-BTi, Intel Celeron J1900 2.42 GHz processor

Key Features:

Out of stock

$1,565.00

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / ECW-281B-BT Fanless Embedded System with Celeron J1900

Fanless embedded system with WAFER-BTi, Intel Celeron J1900 2.42 GHz processor

Key Features:

Brand

IEI Integration Corp.

Specifications

Form factor
SBC Form Factor	CPU:Intel® Celeron® J1900 processor (2 GHz, quad-core, 2 MB cache, TDP=10W) Chipset:SoC System Memory: 1 x 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM (system max. 8 GB)
I/O Interface
I/O Ports	1 x USB 3.0 3 x USB 2.0 Ethernet: LAN 1: PCIe GbE by Intel® I210 controller LAN 2: PCIe GbE by Intel® I211 controller COM Port: 3 x RS-232 1 x RS-422/485 Digital I/O:8-bit digital I/O Display:1 x VGA Resolution:VGA: Up to 2560x1600@60Hz Audio:1 x Line out Wireless:1 x 802.11b/g/n (optional)
Expansion Slots
Expansion Slots	1 x Full-size PCIe Mini card slot (supports mSATA) 1 x Half-size PCIe Mini card (only for iRIS)
System
Cooling method / System Fan	Fanless
Drive Bays	1 x 2.5” SATA 3Gb/s HDD bay
Color
Color	Black
Dimensions
Dimensions	229 x 64 x 132
Weight
Weight	2.1 kg / 3.9 kg
Environment
Operating Temperature	-20°C~60°C with air flow (SSD)
Humidity	10% ~ 95%, non-condensing

ECW-281B-BTi-J1/2GB-R20	Fanless embedded system with WAFER-BT-R20,with Intel® Celeron J1900 2GHz, 4 serial ports,with 2GB DDR3L pre-installed SO-DIMM memory,12VDC in, 60W power adapter, black, RoHS
