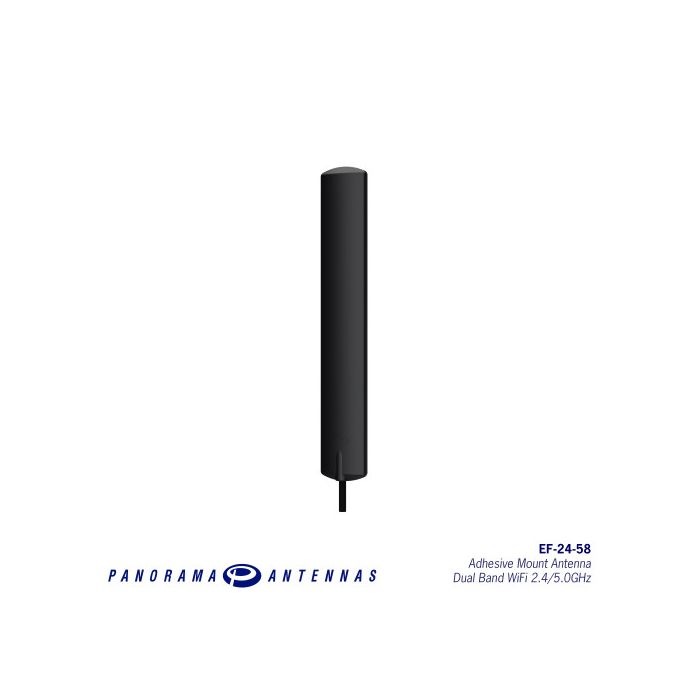

EF-24-58 - Adhesive mount Dual band Wifi antenna

Dual band Wifi Adhesive mount antenna

In stock

SKU
EF-24-58

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / EF-24-58 - Adhesive mount Dual band Wifi antenna

The EF-24-58 is a range of highly efficient and easy to install antennas for providing dual band WiFi coverage. These compact paddle style antennas areeasily positioned on a device housing or vehicle windscreen using the supplied automotive industry grade adhesive pad. The antenna is ground plane independent making it ideal for applications distributing or receiving WiFi signal. Covering 2.4/5.0GHz the EF-24-58 is designed to support the full range of WiFi frequencies.
The antenna is constructed from weather resistant plastic and is suitable for use in semi-exposed scenarios.

More Information

Specifications
Electrical Data
Wifi Frequencies 2.4/5.0GHz
Typical VSWR <2:1
Peak Gain (dBi) 4dBi
Max Input Power (W) 10
Pattern Omni-directional
Ground Plane Independent Yes
Mechanical Data
Available Colours Black
Length (mm) 131
Width (mm) 21.7
Height (mm) 7
Operating Temperature -30 / + 70°C
Mounting Data
Mounting Type Glass Mount; Adhesive Mount
Mounting Method Adhesive Pad
Description

The EF-24-58 is a range of highly efficient and easy to install antennas for providing dual band WiFi coverage. These compact paddle style antennas areeasily positioned on a device housing or vehicle windscreen using the supplied automotive industry grade adhesive pad. The antenna is ground plane independent making it ideal for applications distributing or receiving WiFi signal. Covering 2.4/5.0GHz the EF-24-58 is designed to support the full range of WiFi frequencies.
The antenna is constructed from weather resistant plastic and is suitable for use in semi-exposed scenarios.
