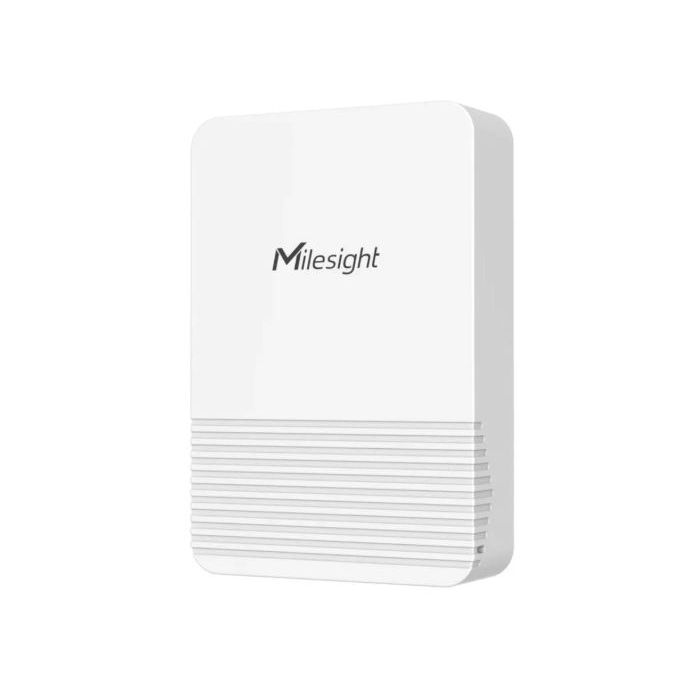

EM320-TH LoRaWAN Temperature and Humidity Sensor

Milesight IoT

IP67 LoRaWAN Temperature and Humidity Sensor Wall/Magnet Mountable

In stock

SKU
EM320-TH-915M
$120.00

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / EM320-TH LoRaWAN Temperature and Humidity Sensor

The EM320-TH is a simple, small, and effective LoRaWAN temperature and humidity sensor. It can accurately detect temperature and humidity data in various challenging environments because it has high-precision sensors and an IP67 waterproof design. The inclosure and magnet design of the food-grade material allows it to be safely placed in freezers and refrigerators and in contact with food or medications. It also has built-in high-capacity batteries that can be used for up to 5 years without needing to be replaced, in addition to LoRaWAN® technology with low power consumption. Additionally, the EM320-TH supports Milesight LoRaWAN Gateway and Milesight IoT Cloud for remote data monitoring and management. Both indoor and outdoor applications like cold chain transportation, agricultural greenhouses, office buildings, hospitals, factories, etc. are appropriate for it.

Key Features

  • Uses Sensirion high-precision sensor, capable of sensing subtle changes in temperature and humidity
  • IP67 waterproof enclosure with multi-level structure and sealing ring design enabling strong waterproof performance for harsh environments
  • Uses food-grade material’s enclosure, which is safe for contact with food or medicines
  • Ultra-low power consumption and standby with 5400 mAh built-in replaceable batteries, ensuring durable battery life
  • Wall mounting or magnet version optional for multiple installation scenarios
  • Anti-theft and anti-slip pad design on the back cover to secure firm and sturdy installation
  • Long-range data transmission for up to 15kilometers in rural areas
  • Store locally 3000 historical records and support retransmission to prevent data loss
  • Equipped with NFC for easy configuration
  • CompliantwithstandardLoRaWAN gatewaysandnetworkservers
  • Quick and easy management with Milesight IoT Cloud solution

More Information

Brand Milesight IoT
Specifications
Wireless Transmission Technology LoRaWAN
Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16dBm (868)/20dBm(915)/19dBm(470)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Measurement Temperature Range -30°C to + 60°C
Accuracy +/- 0.2°C
Resolution 0.1°C
Humidity Range 0% to 100% RH
Accuracy +/- 2%
Resolution 0.5% RH
Operation Power On & Off NFC Configuration via Mobile App, Power Button (Internal)
Configuration NFC Configuration via Mobile App
Physical Characteristics Power Supply 2 × 2700 mAh ER14505 Li-SOCL2 Batteries
Battery Life* ≥5 years
Operating Temperature -30°C to +60°C
Relative Humidity ≤95%
Material & Color ABS + PC (Food Grade), White
Ingress Protection IP67
Dimension 85 × 58 × 18 mm (3.34 × 2.28 × 0.70 in)
Installation Standard Version: Wall Mounting
Magnet Version: Magnetic Adsorption
Description

The EM320-TH is a simple, small, and effective LoRaWAN temperature and humidity sensor. It can accurately detect temperature and humidity data in various challenging environments because it has high-precision sensors and an IP67 waterproof design. The inclosure and magnet design of the food-grade material allows it to be safely placed in freezers and refrigerators and in contact with food or medications. It also has built-in high-capacity batteries that can be used for up to 5 years without needing to be replaced, in addition to LoRaWAN® technology with low power consumption. Additionally, the EM320-TH supports Milesight LoRaWAN Gateway and Milesight IoT Cloud for remote data monitoring and management. Both indoor and outdoor applications like cold chain transportation, agricultural greenhouses, office buildings, hospitals, factories, etc. are appropriate for it.

Key Features

  • Uses Sensirion high-precision sensor, capable of sensing subtle changes in temperature and humidity
  • IP67 waterproof enclosure with multi-level structure and sealing ring design enabling strong waterproof performance for harsh environments
  • Uses food-grade material’s enclosure, which is safe for contact with food or medicines
  • Ultra-low power consumption and standby with 5400 mAh built-in replaceable batteries, ensuring durable battery life
  • Wall mounting or magnet version optional for multiple installation scenarios
  • Anti-theft and anti-slip pad design on the back cover to secure firm and sturdy installation
  • Long-range data transmission for up to 15kilometers in rural areas
  • Store locally 3000 historical records and support retransmission to prevent data loss
  • Equipped with NFC for easy configuration
  • CompliantwithstandardLoRaWAN gatewaysandnetworkservers
  • Quick and easy management with Milesight IoT Cloud solution
