EMPS-32R1

JavaScript seems to be disabled in your browser. For the best experience on our site, be sure to turn on Javascript in your browser.

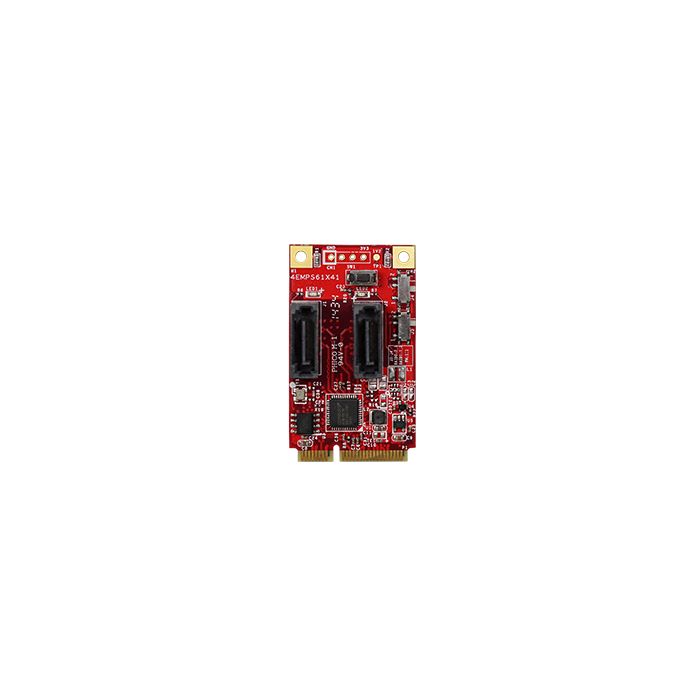

mPCIe to dual SATA III RAID Module

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / EMPS-32R1

mPCIe to dual SATA III RAID Module

· mPCIe to dual SATA III ports

· Low power consumption

· Supports AHCI, Port-Multiplier

· Supports Native Command Queuing

· Supports Hardware RAID 0, RAID1

· 30μ" golden finger, 3 years warranty

· Industrial design, manufactured in Innodisk Taiwan

Specifications

Module Name	EMPS-32R1
Module Type	mPCIe to dual SATA III RAID Module
Form Factor	mPCIe
Input I/F	PCI Express 2.0
Output I/F	SATA III
Output connector	SATA 7pin x 2
TDP	1.98W (3.3V x 600mA)
Dimensions (W x L x H/mm)	30 x 50.9 x 10.75
Temperature	Operation: STD temp: 0°~70°C; W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C
Environment	Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms
Notes	1. RAID Mode Setting: [J3:J4] RAID0: 2:1, RAID1: 1:2, PM: 1:1 2. Press tact switch SW1 for reset.

Description

mPCIe to dual SATA III RAID Module

· mPCIe to dual SATA III ports

· Low power consumption

· Supports AHCI, Port-Multiplier

· Supports Native Command Queuing

· Supports Hardware RAID 0, RAID1

· 30μ" golden finger, 3 years warranty

· Industrial design, manufactured in Innodisk Taiwan
