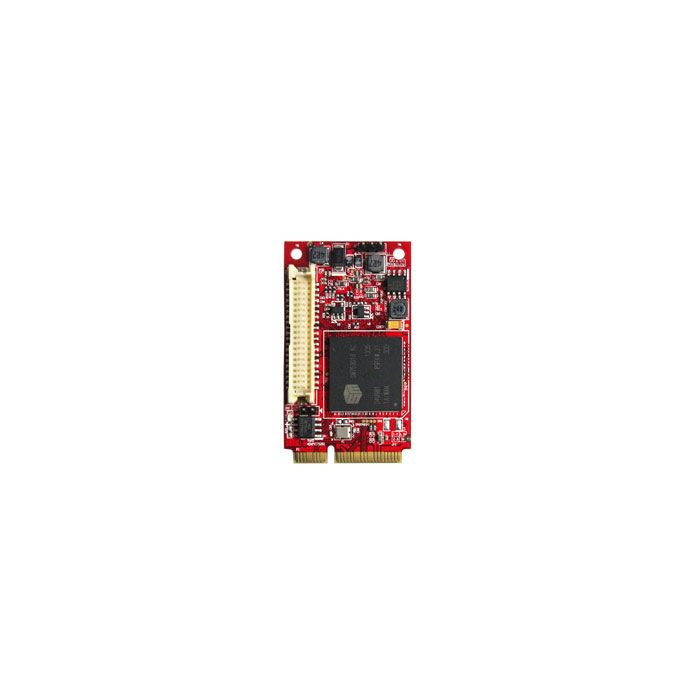

EMPV-1202

mPCIe to VGA & 18/24 bit LVDS module

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / EMPV-1202

mPCIe to VGA & 18/24 bit LVDS module

· VGA Output up to 1920x1080, up to 75Hz vertical rate

· LVDS resolution supports up to 1600 x 1200

· EMPV-1202-C1/W1 Support 18 bit panel and 24 bit JEIDA LVDS

· EMPV-1202-C2/W2 Support 24 bit VESA LVDS

· Allow for 90º, 180º, and 270º rotation of on-screen images

· Optional Industrial Temperature (-40°C to +85°C) support

· 30μ” golden finger, 3 years warranty.

· Industrial design. Manufactured in innodisk Taiwan

Specifications

Module Name	EMPV-1202
Module Type	mPCIe to VGA & 18/24 bit LVDS module
Form Factor	mPCIe
Input I/F	PCI Express 1.0
Output I/F	VGA, 18/24 bit LVDS (C1 for JEIDA, C2 for VESA)
Output connector	40pin 1.25mm (40DP-1.25)
TDP	1.98W(3.3V x 600mA)
Dimensions (W x L x H/mm)	ST: 50.95 x 30 x 8.45 WT: 50.95 x 30 x 8.98
Temperature	Operation: STD temp: 0°~70°C; W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C
Environment	Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms
Notes	Need to connect external 5V power for LVDS panel. OS Support : Windows XP (32 bit), Windows 7/8/8.1/10 (32/64 bit), Linux Ubuntu 12.04-16.04(32/64bit), Linux Fedora 17- 21(32/64bit), Linux CentOS/Redhat 6.5 (32/64bit)- 7.2(64bit) Please download driver from Myinnodisk website.

Description

mPCIe to VGA & 18/24 bit LVDS module

· VGA Output up to 1920x1080, up to 75Hz vertical rate

· LVDS resolution supports up to 1600 x 1200

· EMPV-1202-C1/W1 Support 18 bit panel and 24 bit JEIDA LVDS

· EMPV-1202-C2/W2 Support 24 bit VESA LVDS

· Allow for 90º, 180º, and 270º rotation of on-screen images

· Optional Industrial Temperature (-40°C to +85°C) support

· 30μ” golden finger, 3 years warranty.

· Industrial design. Manufactured in innodisk Taiwan
