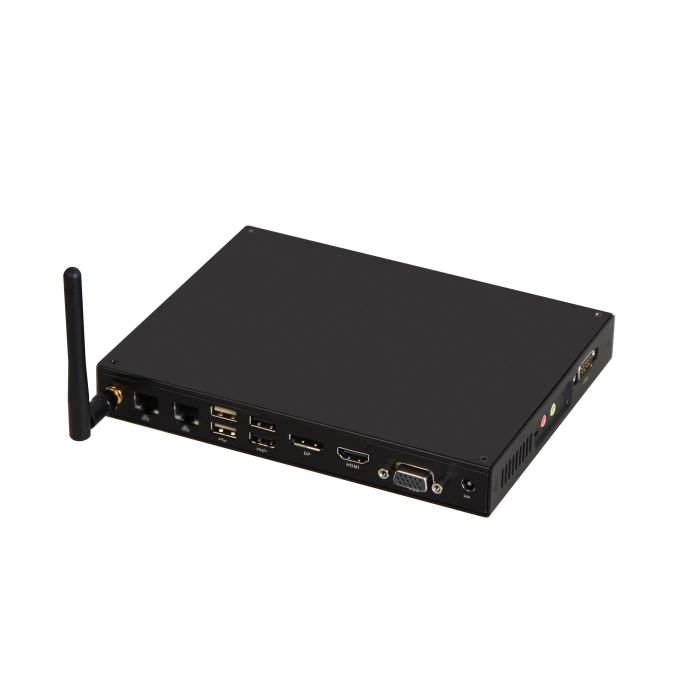

F105D Celeron Fanless Signage Player

Giada Technology Inc.

REPLACED BY F106D

This product is now end of life. There might still be stock available; get in touch with us for more details or suggestions for appropriate replacements.

In stock

SKU
F105D

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / F105D Celeron Fanless Signage Player

Fanless embedded digital signage player, powered by Intel Celeron N3350/N3450 Processor



·         Intel® Celeron N3350/N3450 Processor

·         1 X SO-DIMM DDR3L, Onboard 2GB

·         1 X DP, 1 X HDMI, 1X VGA

·         1 X 2.5” SATA, 1 X mSATA, 1 X M.2 for SSD

·         3 X USB 3.0, 3 X USB 2.0, 1 X RS232

·         2 X RJ45, 1 X Mini-PCIe for WiFi/BT/3G/4G, 1 x SIM slot

More Information

Brand Giada Technology Inc.
Specifications
    F105D-BS200 F105D-BQ200
Processor CPU Intel®Celeron N3350 Intel®Celeron N3450
Frequency 1.10GHz (Up to 2.40GHz) 1.10GHz (Up to 2.20GHz)
BIOS AMI Source Code
Chipset SOC
Memory Type DDR3L-1866MHz
Socket 1 x SO-DIMM
Max Size Ondoard 2GB
Graphics GPU Intel® Gen9  Graphics engine
Graphic Engine DirectX 12.0, OpenGL 4.3, OpenCL 2.0
DP 1 x DP (Max.4096 x 2304 @60Hz)
HDMI 1 x HDMI (Max.3840x2160 @30Hz)
HDMI 1 x VGA (Max.2048x1536 @60Hz)
Network Controller 2 x Realtek 8111H  Gigabit Ethernet
Interface 2 x RJ45
I/O USB 3 x USB 3.0,3 x USB 2.0
Serial Port 1 x RS232
Audio 1 x AUDIO-OUT, 1 x MIC-IN
Mini-PCIe1# 1 x Full-size Mini-PCIe for mSATA
Mini-PCIe2# 1 x Full-size Mini-PCIe for WiFi/BT/3G/4G
SIM 1 x SIM Slot
Storage SATA 1 x 2.5"SATA
mSATA 1 x Full-size mSATA
M.2 1 x M.2(2242/2280) for SSD
JAHC Tech WatchDog Timer 0~255 Second Time Out Support
Auto Power On Power Activated Automatically Start
Remote Control By IR Controller for Power On
RTC Set Up Independently Every day, A Week as a Cycle
Wake On Lan Yes
Operation System Windows Windows 10（64 Bit）
Linux Supported
Power Power Type DC-IN
Input Voltage 19V / 2.1A
Mechanical Dimensions (W × D × H) 189.6mm x 148.3mm x 26mm（7.46"x 5.84"x 1.02"）
Construction Metal
Mounting Desk/Wall Mounting and VESA Mounting Kit (JZ183)
Color Black
Environment Operating Temperature 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Relative Humidity 95%@40℃ (non-condensing)
Certification Certification CE, FCC Class B, CCC


Description

Fanless embedded digital signage player, powered by Intel Celeron N3350/N3450 Processor



·         Intel® Celeron N3350/N3450 Processor

·         1 X SO-DIMM DDR3L, Onboard 2GB

·         1 X DP, 1 X HDMI, 1X VGA

·         1 X 2.5” SATA, 1 X mSATA, 1 X M.2 for SSD

·         3 X USB 3.0, 3 X USB 2.0, 1 X RS232

·         2 X RJ45, 1 X Mini-PCIe for WiFi/BT/3G/4G, 1 x SIM slot
pdf
Datasheet
