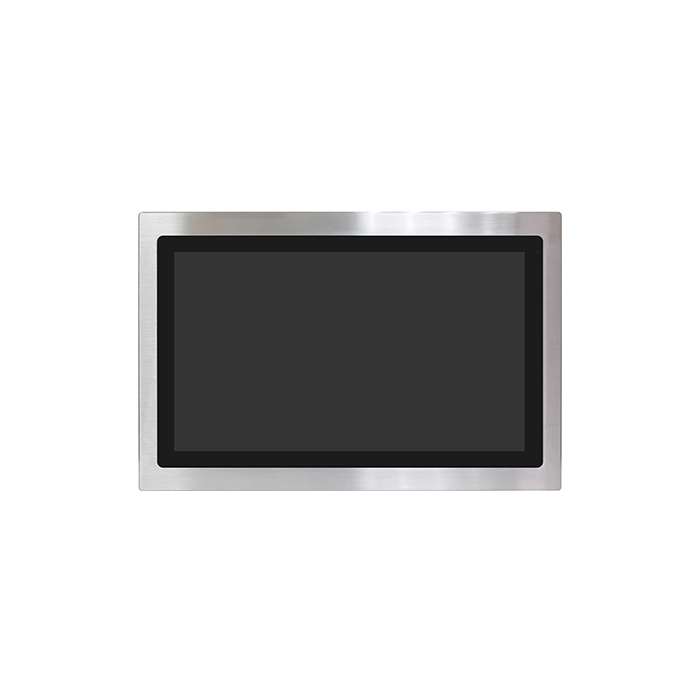

FABS-921BP/R(H) 21.5" Hygienic Design Compact Size Panel PC

Aplex Technology Inc.

Aplex FABS-921BP/R(H) 21.5" Food Safety Grade Panel PC IP69K 8th Gen 2xGbE Touchscreen

Key Features:

  • 21.5" Food Industrial Panel PC
  • Flat Front Panel Touch Screen with IP66/IP69 Front Bezel
  • SUS304 Stainless Steel (option SUS316L)
  • 8th Gen. Intel Core i3/i5, CPU built-in
  • 1 x 260-pin SO-DIMM DDR4 slot, up to 32GB 2400MHz
  • DC 9~36V Wide Range Power Input
  • Support TPM2.0 Hardware Security

FABS-921BR
21.5" FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Resistive touch screen, 9~36V DC input with adapter, Stainless front bezel and Aluminum chassis.

FABS-921BP
21.5" FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Projected Capacitive touch, 9~36V DC input with adapter, Stainless front bezel and Aluminum chassis.

FABS-921BR(H)
21.5" High brightness FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/ i5-8365UE, 1 x DDR4 slot, Resistive touch screen, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis.

FABS-921BP(H)
21.5" High brightness FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/ i5-8365UE, 1 x DDR4 slot, Projected Capacitive touch, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis.

In stock

SKU
FABS-921BP

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / FABS-921BP/R(H) 21.5" Hygienic Design Compact Size Panel PC

The system offers two CPU options: the 8th Gen Intel Core i3-8145UE Processor (2C/4T, 2.2GHz) and the Intel Core i5-8365UE Processor (4C/8T, 1.6GHz). It supports up to 32GB DDR4 2400MHz memory with one 260-pin SO-DIMM slot. The touch screen options include Projected Capacitive Touch for the FABS-921BP/R(H) models and Resistive Touch for the FABS-921BR(H) models, with light transmission rates of 90% and 80%, respectively. The panel PC features a flat front panel with an IP66/IP69 Front Bezel made of SUS304 Stainless Steel (optionally SUS316L). The power input ranges from DC 9 to 36V, providing wide-range power compatibility. Additionally, TPM2.0 hardware security is supported.

The IO port includes four USB 3.0 type A ports, one DB-9 connector (RS-232/422/485), two GbE LAN RJ-45 ports, one Line Out audio port, and one DP port. Optional features include a VESA Stand, 4G LTE/Wi-Fi 4/5/6+/BT, additional USB 2.0 ports, COM ports, CAN ports, LAN port, and a backup battery option.

The ordering information specifies four configurations with various touch screen and brightness options, processor choices, memory slots, and power input specifications. The models include FABS-921BR, FABS-921BP, FABS-921BR(H), and FABS-921BP(H), each with specific features to cater to different requirements. All models come with a Stainless front bezel and an Aluminum chassis.

Key Features:

  • 21.5" Food Industrial Panel PC
  • Flat Front Panel Touch Screen with IP66/IP69 Front Bezel
  • SUS304 Stainless Steel (option SUS316L)
  • 8th Gen. Intel Core i3/i5, CPU built-in
  • 1 x 260-pin SO-DIMM DDR4 slot, up to 32GB 2400MHz
  • DC 9~36V Wide Range Power Input
  • Support TPM2.0 Hardware Security

More Information

Brand Aplex Technology Inc.
Specifications

System



CPU

Onboard 8th Gen Intel Core i3-8145UE Processor (2C/4T,2.2GHz)Intel Core i5-8365UE Processor (4C/8T,1.6GHz)

System Chipset

SoC

Memory

1 x 260-pin SO-DIMM up to 32GB DDR4 2400MHz

IO Port



USB

4 x USB 3.0 type A


1 x DB-9 connector, Including:

Serial / Parallel

* 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable viajumper (COM1)


* 1 x RS-232(Tx, Rx)/422/485(COM2) by Y Cable

LAN

2 x GbE LAN RJ-45

Audio

1 x Line Out

DP

1 x DP

Power

1 x 3-pin Terminal Block Connector1 x 2-pin Power Switch Connector


VESALine-Out SW+Stand


4G LTE/Wi-Fi 4/5/6+/BT


4 x USB 2.0 (TB-528U4)


4 x USB 2.0 + 1 x Mini-PCIe + 1 x SIM slot (TB-528U4ME1)


2 x COM (RS-232) (TB-528C2)

Option

1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2)1 x COM (RS-232) + 2 x USB 2.0 + 1 x Power Button (TB-528C1U2P1)


2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1)


2 x COM (RS-422/485, isolated) (TB-528C2I)


2 x CAN (TB-528CAN2)


1 x LAN + 2 x USB 2.0 (TB-528E1U2)


Backup Battery 21W/10.8V/1.95Ah(3S1P)

Storage Space



Storage

1 x M.2 M-Key slot (Support PCIe/SATA; 2242/2280, Default 2242)

Expansion



Onboard Expansion Bus

1 x Mini-PCIe slot (full size)



1 x Nano SIM Card Holder

Display

Standard

High Brightness Optional

Display Type

21.5" TFT-LCD

21.5" TFT-LCD

Max. Resolution

1920 x 1080

1920 x 1080

Max. Color

16.7M

16.7M

Luminance (cd/m2)

250

1000

View Angle

178(H)/178(V)

178(H)/178(V)

Contrast

1000:1

1000:1

Backlight Lifetime

50,000 hrs

50,000 hrs

Touch Screen



Type

Projected Capacitive Touch (for BP model)Resistive Touch (for BR model)

Interface

USB

Light Transmission(%)

Resistive Touch: 80%Projected Capacitive: 90%

Power



Power Input

DC 9~36V

Power Consumption

TBD

Mechanical



Construction

SUS304 Stainless Steel Front Bezel (default) / SUS316L Stainless Steel Front Bezel (for option) / Aluminum Die-casting Back Cover

Mounting

Panel Mount, VESA Mount 100 x 100

IP Rating

IP66/IP69K Compliant Front Bezel

Dimensions

573.8 x 378.8 x 59.8 mm

Net Weight

TBD

Environmental



Operating Temperature

0~50 ̊C/ -20~60°C (option)

Storage Temperature

-30~70°C

Humidity

10 to 95%@ 40°C, non-condensing

Certificate

CE/FCC Class A / EN 1672-2 Compliant for P Model (optional)

Operating System Support

Windows 10 IoT, Windows 11

FABS-921BR

21.5" FHD fanless HMI barebone with Intel Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Resistive touch screen, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis.

FABS-921BP

21.5" FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Projected Capacitive touch, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis.

FABS-921BR(H)

21.5" High brightness FHD fanless HMI barebone with Intel Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Resistive touch screen, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis.

FABS-921BP(H)

21.5" High brightness FHD fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Projected Capacitive touch, 9~36VDC input with adapter, Stainless front bezel and Aluminum chassis.
Description

The system offers two CPU options: the 8th Gen Intel Core i3-8145UE Processor (2C/4T, 2.2GHz) and the Intel Core i5-8365UE Processor (4C/8T, 1.6GHz). It supports up to 32GB DDR4 2400MHz memory with one 260-pin SO-DIMM slot. The touch screen options include Projected Capacitive Touch for the FABS-921BP/R(H) models and Resistive Touch for the FABS-921BR(H) models, with light transmission rates of 90% and 80%, respectively. The panel PC features a flat front panel with an IP66/IP69 Front Bezel made of SUS304 Stainless Steel (optionally SUS316L). The power input ranges from DC 9 to 36V, providing wide-range power compatibility. Additionally, TPM2.0 hardware security is supported.

The IO port includes four USB 3.0 type A ports, one DB-9 connector (RS-232/422/485), two GbE LAN RJ-45 ports, one Line Out audio port, and one DP port. Optional features include a VESA Stand, 4G LTE/Wi-Fi 4/5/6+/BT, additional USB 2.0 ports, COM ports, CAN ports, LAN port, and a backup battery option.

The ordering information specifies four configurations with various touch screen and brightness options, processor choices, memory slots, and power input specifications. The models include FABS-921BR, FABS-921BP, FABS-921BR(H), and FABS-921BP(H), each with specific features to cater to different requirements. All models come with a Stainless front bezel and an Aluminum chassis.

Key Features:

  • 21.5" Food Industrial Panel PC
  • Flat Front Panel Touch Screen with IP66/IP69 Front Bezel
  • SUS304 Stainless Steel (option SUS316L)
  • 8th Gen. Intel Core i3/i5, CPU built-in
  • 1 x 260-pin SO-DIMM DDR4 slot, up to 32GB 2400MHz
  • DC 9~36V Wide Range Power Input
  • Support TPM2.0 Hardware Security
