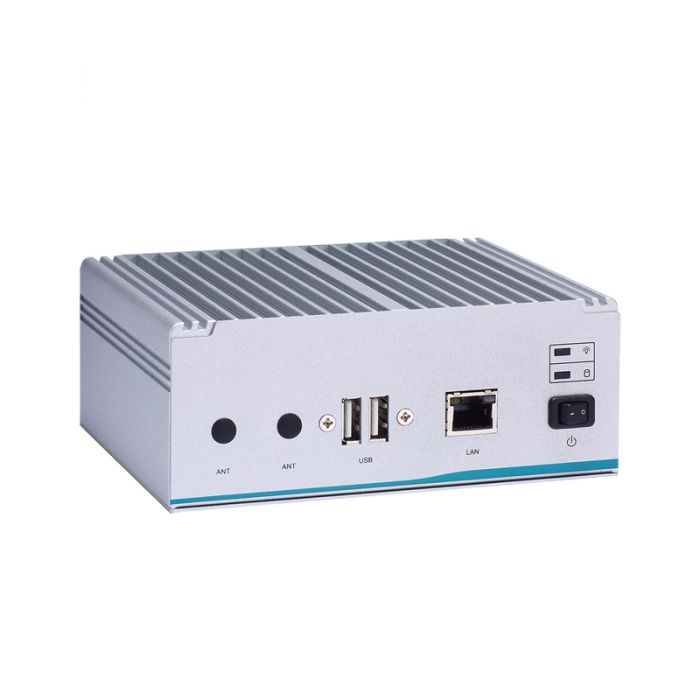

Shop eBOX560-52R-FL Fanless i5/Celeron Palm-Size PC

Axiomtek

Fanless Embedded System with Intel® Core™ i5-8365UE/Celeron® 4305UE Processor, HDMI/DisplayPort, 2 GbE LAN, 2 COM, 4 USB

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / eBOX560-52R-FL Fanless i5/Celeron Palm-Size PC

Brand

Axiomtek

Specifications

CPU	Intel® Core™ i5-8365UE, 1.6 GHz Intel® Celeron® 4305UE, 2.0 GHz
Chipset	SoC integrated
System Memory	1 x 260-pin DDR4-2400 SO-DIMM, max. up to 32GB
BIOS	AMI
COM	2 x RS-232/422/485
USB	2 x USB 2.0 2 x USB 3.1 Gen2
Ethernet/PoE	2 x 10/100/1000 Mbps (Intel® i219-LM, Intel® i211-AT)
Display	1 x DisplayPort 1 x HDMI
Digital I/O	N/A
Audio	N/A
Storage	1 x 2.5" SATA HDD drive bay (max. up 9.5 mm height)
Expansion	1 x M.2 Key E 2230 (for Wi-Fi)
Others	1 x ATX power switch 1 x AT/ATX quick switch 1 x Screw type VDC power input connector 2 x Antenna opening
Power Supply	12 VDC
Watchdog Timer	65535 levels, 1 to 65536 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-10°C to +50°C (+14°F to +122°F) with 0.7 m/s air flow (with W.T. SSD/DRAM)
Relative Humidity	10% - 90%, non-condensing
Vibration	IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Shock	IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Dimensions (W x D x H)	141.6 x 106 x 55 mm (5.57" x 4.17" x 2.17")
Weight (net/gross)	0.6 kg (1.32 lb)/1.5 kg (3.3 lb)
Certifications	CE, FCC Class A
EOS Support	Win 10 IoT, Linux
Software Support	AMS.AXView
Mounting	Wall mount Kit DIN-rail kit
