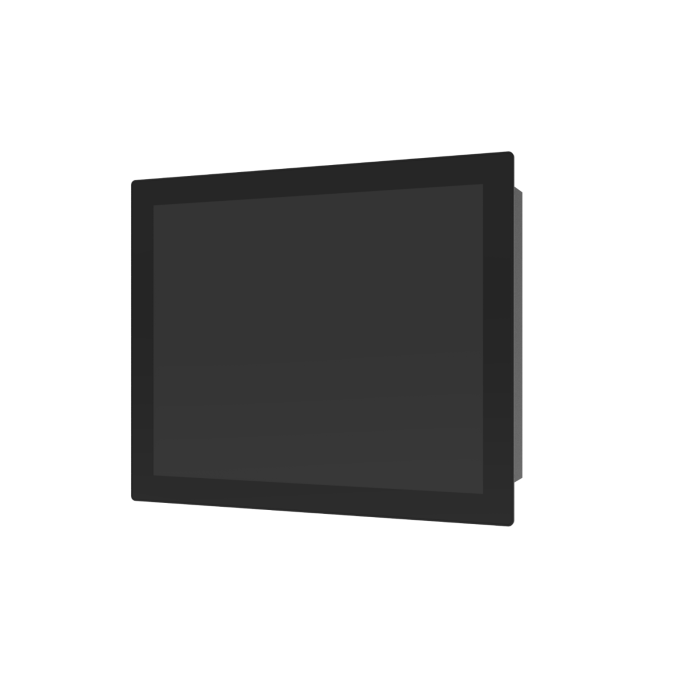

FPC-1736 17" 8th/9th Gen CPU Rugged Multi-touch Panel PC

Avalue Technology Inc

17" 8th/9th Gen Intel Generation Core Pentium i7/ i5/ i3 Processors Full-falt Rugged Multi-touch Panel PC With Active Cooling and Expansion Slot

Key Features:

  • Intel LGA1151 Socket Supports 8th /9th refresh Generation Core™ Pentium /i7/ i5/ i3 Processors (Max. TDP at 65W)
  • 2 x Memory Socket, Max. Up to 64GB DDR4 2133/2400/2666 MHz
  • 4 x USB3.0, 1 x USB2.0（Internal for dongle）
  • 3 x RS232, 2 x LAN,1 x HDMI 1.4b, 1 x VGA
  • 1 x Storage, 2.5” Drive Bay, 1 x M.2 SSD
  • 1 x M.2 Key-E for Wi-Fi, Bluetooth
  • Support 1 x PCIex4 Expansion Slot (option for 2 x PCI slot)
  • Wide Voltage DC input +12V ~ +24V
  • Front IP65, Panel Mounting Kits
  • CE, FCC Class A, CCC

In stock

SKU
FPC-1736-X0000-1R

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / FPC-1736 17" 8th/9th Gen CPU Rugged Multi-touch Panel PC

FPC-1736 is an industrial panel PC with 17" SXGA LCD, powered by Intel H310 chipset, support for  8th/9th Gen Intel refresh Generation Core Pentium /i7/ i5/ i3 processors. With die-casting front bezel and rear metal aesthetic enclosure, to ensure reliability and easy maintenance in diverse industrial applications. Moreover, it provides a faster and more flexible connection via 1 x 2.5G, 1 x Gigabit Ethernet port, 4 x USB 3.0 and a unique design internal USB2.0  type A connector for the USB dongle (for encryption key) inside the enclosure. FPC-1736 is ideal for MES, processing and general industrial equipment integration.

Key Features:

  • Intel LGA1151 Socket Supports 8th /9th refresh Generation Core™ Pentium /i7/ i5/ i3 Processors (Max. TDP at 65W)
  • 2 x Memory Socket, Max. Up to 64GB DDR4 2133/2400/2666 MHz
  • 4 x USB3.0, 1 x USB2.0（Internal for dongle）
  • 3 x RS232, 2 x LAN,1 x HDMI 1.4b, 1 x VGA
  • 1 x Storage, 2.5” Drive Bay, 1 x M.2 SSD
  • 1 x M.2 Key-E for Wi-Fi, Bluetooth
  • Support 1 x PCIex4 Expansion Slot (option for 2 x PCI slot)
  • Wide Voltage DC input +12V ~ +24V
  • Front IP65, Panel Mounting Kits
  • CE, FCC Class A, CCC

More Information

Brand Avalue Technology Inc
Specifications
-System Information-
Processor Intel® LGA1151 Socket Supports 8th /9th refresh Generation Core™ Pentium® /i7/ i5/ i3 Processors (Max. TDP at 65W)
Platform Controller Hub Intel® H310 Express Chipset
System Memory 2 x 260-pin DDR4 2666 MHz SO-DIMM socket, supports up to 64GB Max
I/O Chipset ITE8786E
BIOS Information AMI uEFI BIOS, 128Mbit SPI Flash ROM
Board EMX-H3102C
Expansion
Expansion 1 x M.2 E-Key, support Wi-Fi module (optional)
1 x PCIex4 slot (Option for 2 x PCI slot)
Storage
Storage 1 x SATA III for SSD expansion
1 x M.2 B-key 2242 slot support SATA
Panel
LCD Size 17"，4:3
Display Type SXGA
B/L Inverter/Converter External
Resolution 1280 x 1024
Pixel pitch 0.264(H) x 0.264(V)mm
Luminance 250 nits
Contrast ratio 1000
Viewing angle 80 (U), 80 (D), 85 (L), 85 (R)
Response time 5ms
Backlight LED
Touch Screen 17" PCAP Multi-Touch support up to 10 points
Touch Light Transmission 89 %
Touch Controller ILLITEK ICI2510P
I/O
USB Port 4 x USB3.0, 1 x USB2.0（Internal Type A for dongle）
4 x USB2.0（Option）
COM Port 3 x RS232，1 x RS232（Option）
GPIO 8 bit GPIO (option)
Antenna Reserved for WIFI6 2.4GHz~7.1GHz Antenna
SATA 1 x SATA III
PCIe 1 x PCI-ex4 (Option for 2 x PCI slot by module)
Wireless Communication
WLAN IEEE802.11 ax/ac/a/b/g/n 2.4 GHz，5GHz，6GHz （Option）
Bluetooth BT5.2 （Option）
Display
Graphic Chipset Intel® 8/9th Generation CPU integrated
Spec. & Resolution 1 x VGA: 2048 x1536 @ 50 Hz
1 x HDMI 1.4b: 4096x2160@30Hz
Audio
Audio Interface 1 x Line-out, 1 x Mic-in
Speaker Output 2 x 5W
支持软件
OS Windows 10 64bits
Linux (Ubuntu 22.04)
Certifications
Certification Information CE/FCC Class A
CCC
Ethernet
LAN Chipset 1 x Intel i219-V Gigabit Ethernet
1 x Intel i225-V 2.5 Gigabit Ethernet
LAN Port 2 x RJ-45
Power Requirement
DC Input +12~24V DC in
DC Input Connector DC in
Phoenix terminal (option)
*Only connect one of them for power input
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 120W (24V @ 5A ) AC-DC Power adapter
Mechanical & Environmental
Operating Temperature 0 ~ 45°C
Storage Temperature -20°C ~ 60°C
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H) 392.72 x 325.32 x 121.55 mm
Weight 7.5 Kg
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms
IP Rating Font IP65
VESA Wall / Stand / VESA , 100mm x 100mm
System Fan 2 x 12V
Construction - Front Die-casting
Construction - Rear Metal
Drop ISTA 2A, IEC-60068-2-32 Test:Ed
Ordering Information
Ordering Information FPC-1736-X0000-1R
17" 1280x1024 250nits Industrial Touch Panel PC, ErP Design, PCAP Multi Touch(ALC897) Intel w/H310/2LAN/4USB3/HDMI/VGA/DCin/Line out/Mic in/Barebone/120W Power adapter
w/PCIex4 expansion slot

ACC-CPU-8700TR
Intel Core i7-8700T 2.4GHz Processor

ACC-CPU-8500TR
Intel Core i5-8500T 2.1GHz Processor

ACC-CPU-8100TR
Intel Core i3-8100T 3.1GHz Processor

C971XFP1736000R
Double USB KIT For FPC-1736

C971XFP1736001R
Single USB KIT For FPC-1736

C971XFP1736002R
Internal Single USB KIT For FPC-1736

C971XFP1736003R
4Terminal Block DC IN KIT For FPC-1736

C971XFP1736004R
Terminal Block GPIO KIT For FPC-1736

C971XFP1736005R
WiFi module KIT for FPC-1736 Intel AX210

C971XFP1736006R
Riser card KIT For FPC-1736 PCIex1 to 2PCI Riser Card

C971XFP1736007R
WiFi module KIT for FPC-1736 IntelAC8265

C971XFP1736008R
WiFi module KIT for FPC-1736 IntelAC9260

C971XFP1736008R
CPU cooler 4P/12V/Fan/84*84*28/AL/65W

C971XFP1736008R
CPU Cooler for LGA1155 Package 4-Pin/12V

C170P060040R
US Power Cord SM001/3P+SM006/3P 1.83M

C170P060050R
EU Power Cord SH005/3P+SH006/3P 1.83M

C170P060060R
JP Power Cord SH001/3P+SH006/3P 1.83M

C170P060070R
UK Power Cord YP61A/3P+YC12/3P 1.83M

C170P060080R
AU Power Cord SH051/3P+SH006/3P 1.83M
Description

FPC-1736 is an industrial panel PC with 17" SXGA LCD, powered by Intel H310 chipset, support for  8th/9th Gen Intel refresh Generation Core Pentium /i7/ i5/ i3 processors. With die-casting front bezel and rear metal aesthetic enclosure, to ensure reliability and easy maintenance in diverse industrial applications. Moreover, it provides a faster and more flexible connection via 1 x 2.5G, 1 x Gigabit Ethernet port, 4 x USB 3.0 and a unique design internal USB2.0  type A connector for the USB dongle (for encryption key) inside the enclosure. FPC-1736 is ideal for MES, processing and general industrial equipment integration.

Key Features:

  • Intel LGA1151 Socket Supports 8th /9th refresh Generation Core™ Pentium /i7/ i5/ i3 Processors (Max. TDP at 65W)
  • 2 x Memory Socket, Max. Up to 64GB DDR4 2133/2400/2666 MHz
  • 4 x USB3.0, 1 x USB2.0（Internal for dongle）
  • 3 x RS232, 2 x LAN,1 x HDMI 1.4b, 1 x VGA
  • 1 x Storage, 2.5” Drive Bay, 1 x M.2 SSD
  • 1 x M.2 Key-E for Wi-Fi, Bluetooth
  • Support 1 x PCIex4 Expansion Slot (option for 2 x PCI slot)
  • Wide Voltage DC input +12V ~ +24V
  • Front IP65, Panel Mounting Kits
  • CE, FCC Class A, CCC
