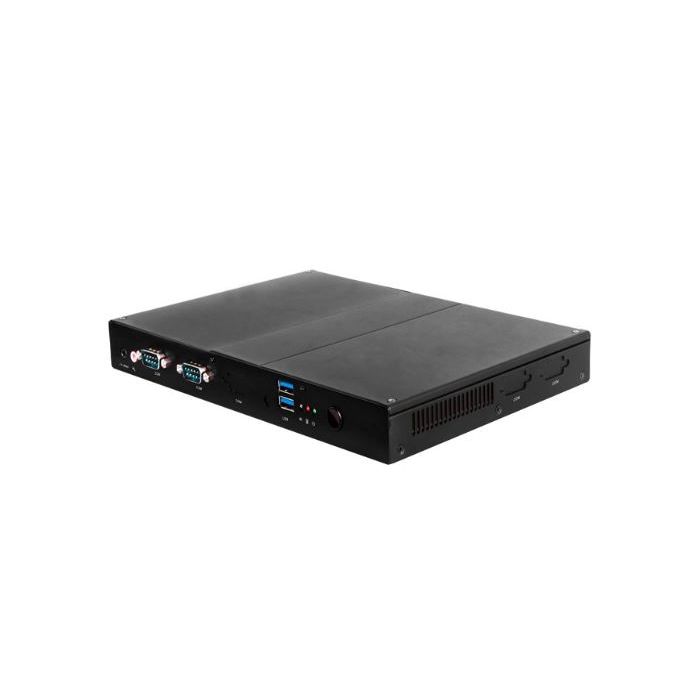

G468 Quad Display Media Player

Giada Technology Inc.

REPLACED BY DM6

This product is now end of life. There might still be stock available; get in touch with us for more details or suggestions for appropriate replacements.

In stock

SKU
G486

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / G468 Quad Display Media Player

The player adopts high-performance Ryzen Embedded V1605B/V1807B processors. It supports dual-channels DDR4 memory and it's flexible to extend the hard drive through M.2 and 2.5" SATA slots.

Key Features:

  • AMD V1000 Platform Processors
  • 2 x SO-DIMM DDR4-2400MHz, Up to 32GB
  • 4 x HDMI
  • 1 x 2.5"SATA,1 x M.2(2242/2280) for SSD
  • 2 x USB 3.1,2 x USB 2.0,2 x RS232
  • 1 x M.2(2230) for WiFi/BT

More Information

Brand Giada Technology Inc.
Specifications
Processor CPU AMD V1605B / AMD V1807B
Frequency 2.0 GHz / 3.35 GHz
BIOS AMI Source Code
Chipset SOC
Memory Type DDR4-2400MHz
Socket 2 x SO-DIMM
Max Size Max 3200MHz 32GB
Graphics GPU AMD VEGA GPU
Graphic Engine DirectX12, OpenGL4.4 and OpenCL 1.2
HDMI 4 x HDMI 2.0(Max.4096 x 2304 @60Hz)
Network Controller  Realtek RTL 8111H Gigabit Ethernet
I/O USB 2 x USB 3.1, 2 x USB 2.0
Serial Port 2 x RS232
Audio 1 x MIC-IN, 1 x AUDIO-OUT & SPDIF
Mini-PCIe1 1 x Full-size Mini-PCIe for mSATA
M.2(2230) 1 x M.2(2230) for WiFi/BT
Storage SATA 1 x 2.5"SATA
M.2 1 x M.2(2242/2280) for SSD
JAHC Tech WatchDog Timer 0~255 Second Time Out Support
Auto Power On Power Activated Automatically Start
RTC Set Up Independently Every day, A Week as a Cycle
Operation System Windows Windows 10(64-bit)
Linux Supported
Power Power Type DC-IN
Input Voltage 19V / 4.74A
Mechanical Dimensions (W × D × H) 240mm x 175mm x 28mm(9.45"x6.83"x1.1")
Construction Metal
Mounting(Optional) Wall Mounting and VESA Mounting(JZ300)
Colour Black
Environment Operating Temperature 0℃ ~ 40℃ ( 32 ℉ ~ 140 ℉ ) at 0.7m/s Air Flow
Relative Humidity 95%@60℃ (non-condensing)
Certification Certification  CE, FCC Class B, CCC



Description

The player adopts high-performance Ryzen Embedded V1605B/V1807B processors. It supports dual-channels DDR4 memory and it's flexible to extend the hard drive through M.2 and 2.5" SATA slots.

Key Features:

  • AMD V1000 Platform Processors
  • 2 x SO-DIMM DDR4-2400MHz, Up to 32GB
  • 4 x HDMI
  • 1 x 2.5"SATA,1 x M.2(2242/2280) for SSD
  • 2 x USB 3.1,2 x USB 2.0,2 x RS232
  • 1 x M.2(2230) for WiFi/BT
