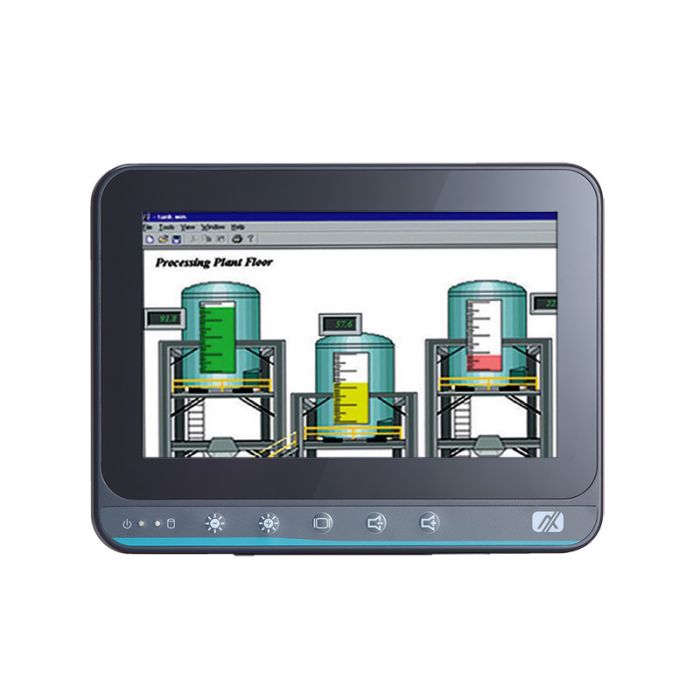

GOT107W-319 7" Fanless Touch Panel PC
7" WSVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3350 or Intel® Pentium® Processor N4200 Features
-
SKU
-
GOT107W-319
Have a Question about this product?
Description /
GOT107W-319 7" Fanless Touch Panel PC
7" WSVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3350 or Intel® Pentium® Processor N4200 Features
● 7" WSVGA TFT LCD display with LED backlight
● Fanless design with Intel® Celeron® processor N3350
● 2 GbE LANs, 2 USB and 2 COM
● Plastic and IP65-rated front bezel
● External AT/ATX mode selection switch
● Easy access storage design
● Supports panel mount, wall mount, VESA arm and desktop stand
More Information
| Brand |
Axiomtek |
| Specifications |
|
Front Bezel
|
IP65, NEMA 4 rugged protection, plastic front bezel
|
|
LCD Panel
|
Display Type
|
7" WSVGA TFT LCD with LED backlight
|
|
|
Brightness (cd/m2 )
|
320 nits
|
|
|
Resolution
|
1024 x 600
|
|
|
Viewing Angel (H/V)
|
145°/150°
|
|
Main System
|
CPU
|
Intel® Celeron® processor N3350 2 cores (up to 2.40 GHz) Intel® Pentium® Processor N4200 4 cores (up to 2.5 GHz)
|
|
|
System Memory
|
1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB
|
|
|
BIOS
|
AMI UEFI BIOS
|
|
|
Storage
|
1 x mSATA (default storage)
1 x MicroSD card
|
|
|
Watchdog Timer
|
255 levels, 0 to 255 sec.
|
|
|
Onboard Graphics
|
Integrated in Intel® GFX
|
|
I/O Connector
|
1 x RS-232/422/485
1 x RS-232
2 x 10/100/1000 Mbps Ethernet
2 x USB 3.0
1 x Screw type connector for power
1 x Power switch
|
|
Expansion Interface
|
1 x M.2 Key E for wireless module
1 x Full-size PCI Express Mini Card slot
|
|
Touchscreen
|
Projected capacitive multi-touch
|
|
Power Supply
|
DC version : 9 to 24VDC with adapter cable
AC version: 100 to 240 VAC-DC, 60W power adapter
|
|
Power Consumption
|
20.4W
|
|
Dimensions
|
192 mm (7.56") (W) x 37.4 mm (1.47") (D) x 145 mm (5.7") (H)
|
|
Packing Dimensions
|
380 mm (15") (W) x 100 mm (4") (D) x 280 mm (11") (H)
|
|
Weight
|
(net/gross) 0.75 kg/2.0 kg
|
|
Operating Temperature
|
0°C to +50°C (+32°F to +122°F)
|
|
Relative Humidity
|
20% to 90% @ +40°C; non-condensing
|
|
Operation Vibration
|
2G, 5 to 500Hz, random for SSD
|
|
Certifications
|
CE, FCC class B
|
|
| Description |
7" WSVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3350 or Intel® Pentium® Processor N4200 Features
● 7" WSVGA TFT LCD display with LED backlight
● Fanless design with Intel® Celeron® processor N3350
● 2 GbE LANs, 2 USB and 2 COM
● Plastic and IP65-rated front bezel
● External AT/ATX mode selection switch
● Easy access storage design
● Supports panel mount, wall mount, VESA arm and desktop stand
|
