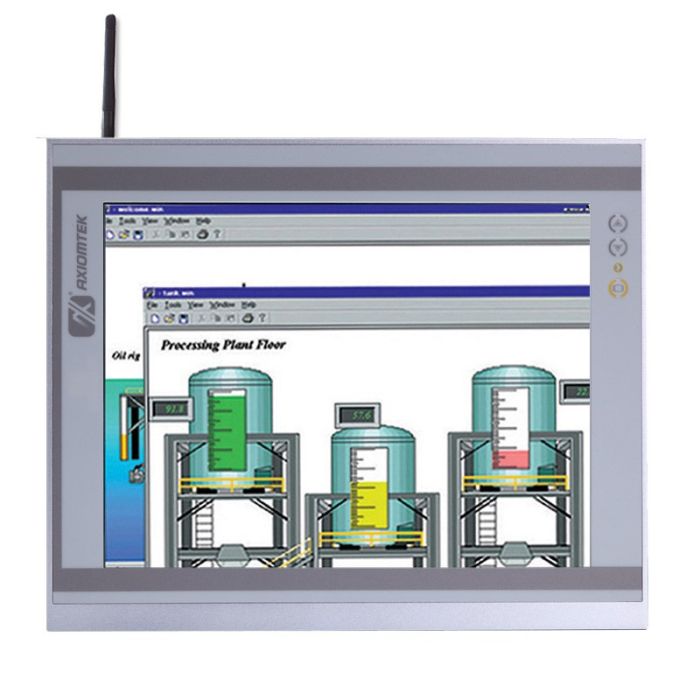

Shop GOT3126T-834 12.1" Fanless Panel PC

Axiomtek

12.1" XGA TFT Extended Temp. Fanless Touch Panel Computer with Intel® Atom® Processor E3827 (-20°C to +55°C) Features

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / GOT3126T-834 12.1" Fanless Panel PC

12.1" XGA TFT Extended Temp. Fanless Touch Panel Computer with Intel® Atom® Processor E3827 (-20°C to +55°C) Features

● 12.1" XGA color TFT LCD display

● Fanless cooling system with Intel® Atom® E3827 1.75 GHz

● -20°C to +55°C wide temperature range

● 2 Gigabit LAN, 2 USB 3.0, 2 USB 2.0 & 3 COM ports

● WLAN/3G module and antenna (optional)

● 2 Express Mini card slots

● 9to36 VDC wide voltage and over current protection

● Supports panel mount and optional VESA arm, desktop stand, wall mount

● 2.5" 7/9.5 mm SATA HDD & CFast™ or mSATA

● Adjust RS-232/422/485 setting via BIOS

Brand

Axiomtek

Specifications

Front Bezel	IP65, NEMA 4 rugged protection, aluminum front bezel
LCD Panel	Display Type	12.1" XGA TFT LCD
	Brightness (cd/m2 )	500 nits
	Resolution	1024 x 768
Main System	CPU	Intel® Atom® processor E3827 2C @1.75 GHz (Bay Trail)
	Chipset	SoC Intergrated
	System Memory	1 x 204-pin DDR3L-1333/1600 SO-DIMM, up to 8GB
	BIOS	AMI UEFI BIOS
	Storage	1 x 2.5" 7/9.5 mm SATA HDD 1 x CFast™ or 1 x mSATA
	Watchdog Timer	255 levels, 0 to 255 sec.
	Onboard Graphics	Integrated Intel® HD Graphic
I/O Connector	3 x RS-232/422/485 (COM 1/2/3) 1 x VGA 1 x Audio (Line-out) 2 x USB 3.0 2 x USB 2.0 2 x 10/100/1000 Mbps Ethernet (Intel® i210-IT)
TPM	N/A
Expansion Interface	2 x PCIe Mini Card slot
Touchscreen	Resistive type
Power Supply	9to36 VDC with power protection
Power Consumption	36 W
Dimensions	311.5 mm (12.21”) (W) x 56.9 mm (2.23”) (D) x 250 mm (9.8”) (H)
Packing Dimensions	525 mm (20.67") (W) x 186 mm (7.32") (D) x 470 mm (18.51") (H)
Weight	(net/gross) 2.8 kg (6.17 lb)/ 5 kg (11.02 lb)
Environment	Operating temperature: -20°C to +55°C (-4°F to +131°F) (with W.T. DRAM/HDD/CF)
Relative humidity:	20% to 90% @ 40°C; non-condensing
Operation vibration:	1.3G, 10 - 500Hz, random for 2.5" HDD 2G, 10 - 500Hz, random for CompactFlash™
Certificate	CE
