15.6" WXGA TFT Multi-touch Panel Computer with LGA1151 socket 9th/8th Gen Intel Core i7/i5 & Pentium Processor
In stock
SKU
GOT315W-521
Have a Question about this product?
Description /

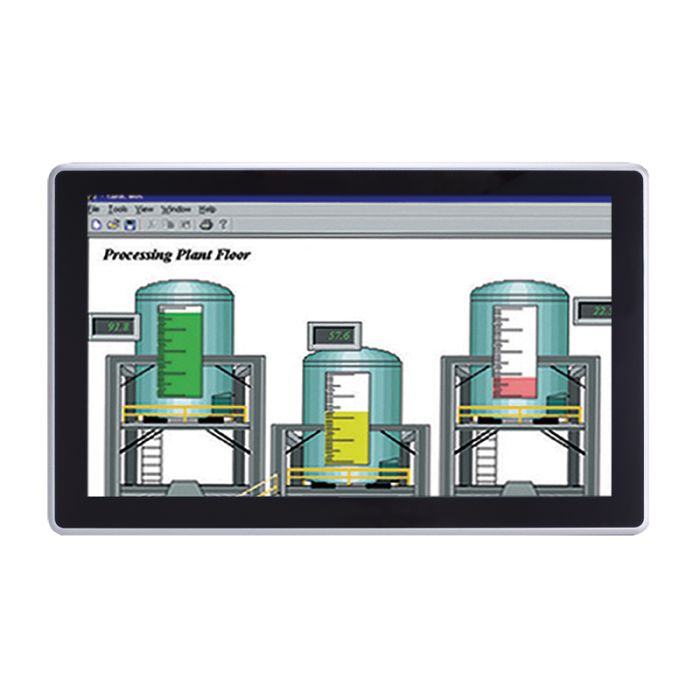

GOT315W-521 15.6" WXGA Panel PC
The GOT315W-521-PCT is a multi-touch fanless panel PC with a 15.6-inch WXGA LCD and supports an LGA1151 socket 9th/8th gen Intel Core i7/i5 & Pentium® processor (Tj 100°C). It also provides M.2 Key E and mini-PCI Express slots for add-on devices such as a Wi-Fi module for factory automation, and an oil pipe monitoring system.
The 15.6" WXGA touch panel PC supports 400 nits brightness, able to display contents in HD resolution. With a projected capacitive multi-touch screen, users can operate the device more directly and friendly. The touch glass surface is up to 3H for anti-scratch purposes.
1 x 2.5” SATA HDD/SSD (7 mm and 9.5 mm, removable)
Expansion
1 x Full-size PCI Express Mini Card slot (PCIe + SATA + USB)
1 x M.2 Key E 2230 (for Wi-Fi)
Others
1 x Phoenix type connector for DC power input
1 x Switch for power on/off (ATX)
1 x Remote power switch
1 x AT/ATX switch (DC type only)
1 x Grounding hole (DC Version)
TPM 2.0
Touchscreen
Projected capacitive multi-touch
Front Bezel
IP65 front bezel
Power Supply
+12V/+19V/+24VDC
1 x Terminal block
Power Comsumption
70W
Watchdog Timer
255 levels, 0 to 255 sec.
Operating Temperature
0°C to +50°C (+32°F to +122°F)
Relative Humidity
20% to 90% @ +40°C; non-condensing
Vibration
N/A
Dimensions (W x D x H)
396.8 x 247.1 x 53 mm (15.6" x 9.73" x 2.08")
Weight (net/gross)
6.5 kg(14.3 lb)/8.5kg(18.7 lb)
Certifications
CE, EN 61000-6-2, EN 61000-6-4
EOS
Windows® 10 IoT Enterprise
Windows® 10
Mounting
Panel mount
Wall mount
VESA arm
Description
The GOT315W-521-PCT is a multi-touch fanless panel PC with a 15.6-inch WXGA LCD and supports an LGA1151 socket 9th/8th gen Intel Core i7/i5 & Pentium® processor (Tj 100°C). It also provides M.2 Key E and mini-PCI Express slots for add-on devices such as a Wi-Fi module for factory automation, and an oil pipe monitoring system.
The 15.6" WXGA touch panel PC supports 400 nits brightness, able to display contents in HD resolution. With a projected capacitive multi-touch screen, users can operate the device more directly and friendly. The touch glass surface is up to 3H for anti-scratch purposes.
