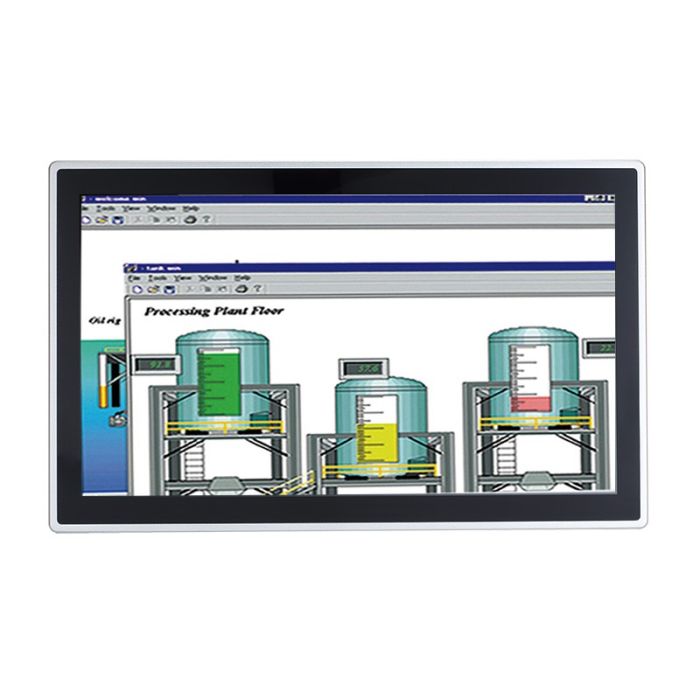

GOT315WL-845 15.6" WXGA Panel PC
calcActive())">
Axiomtek
GOT315WL-845 15.6" WXGA Panel PC
15.6" WXGA TFT Multi-touch Panel Computer with Intel® Pentium® Processor N3710
-
SKU
-
GOT315WL-845-PCT-DC
{ $el.scrollIntoView({behavior: 'smooth', block: 'center'}) })">
Have a Question about this product?
Description /
GOT315WL-845 15.6" WXGA Panel PC
15.6" WXGA TFT Multi-touch Panel Computer with Intel® Pentium® Processor N3710
● 15.6" WXGA projected capacitive multi-touch wide screen
● Fanless design with Intel® Pentium® processor N3710
● 2.5" SATA HDD & mSATA
● 3G, WLAN module & antennas (optional)
● 2 GbE LANs, 2 USB 3.0, 2 USB 2.0 and 2 COM
● IP65-rated aluminum front bezel
● Supports panel mount and VESA mount (VESA arm/desktop stand/wall mount optional)
● Adjustable RS-232/422/485 setting via BIOS
More Information
| Brand |
Axiomtek |
| Specifications |
|
Front Bezel
|
IP65 front bezel
|
|
LCD Panel
|
Display Type
|
15.6" WXGA TFT LCD
|
|
|
Brightness (cd/m2 )
|
400 nits
|
|
|
Resolution
|
1366 x 768
|
|
Main System
|
CPU
|
Intel® Pentium® processor N3710 4C @ 1.6 GHz (Braswell)
|
|
|
Chipset
|
SoC integrated
|
|
|
System Memory
|
1 x 204-pin DDR3L-1333/1600 SO-DIMM, up to 8GB
|
|
|
BIOS
|
AMI UEFI BIOS
|
|
|
Storage
|
1 x 2.5" SATA HDD (9.5 mm height)
1 x mSATA
|
|
|
Watchdog Timer
|
255 levels, 0 to 255 sec.
|
|
|
Onboard Graphics
|
Integrated Intel® HD Graphics
|
|
I/O Connector
|
1 x RS-232
1 x RS-232/422/485 (COM 1/2)
1 x switch for power on/off (ATX)
1 x audio (Line-out)
2 x USB 3.0
2 x USB 2.0
2 x 10/100/1000 Mbps Ethernet (Intel® i210-IT)
|
|
TPM
|
N/A
|
|
Expansion Interface
|
1 x Full-size PCI Express Mini Card slot with mSATA
1 x Full-size PCI Express Mini Card slot with SIM
|
|
Touchscreen
|
Projected Capacitive multi-touch
|
|
Power Supply
|
DC version: 24 VDC
|
|
Power Consumption
|
72 W
|
|
Dimensions
|
396.8 mm (15.62") (W) x 59.0 mm (2.3") (D) x 247.1 mm (9.73") (H)
|
|
Packing Dimensions
|
525 mm (20.67") (W) x 186 mm (7.32") (D) x 470 mm (18.51") (H)
|
|
Weight
|
(net/gross) 4.5 kg (9.9 lb)/6.5 kg (14.3 lb)
|
|
Operating temperature:
|
0°C to +50°C (+32°F to +122°F)
|
|
Relative humidity:
|
20% to 90% @ +40°C; non-condensing
|
|
Operation vibration:
|
1G, 10 - 500 Hz, random for 2.5" SATA HDD
|
|
Certificate
|
CE
|
|
| Description |
15.6" WXGA TFT Multi-touch Panel Computer with Intel® Pentium® Processor N3710
● 15.6" WXGA projected capacitive multi-touch wide screen
● Fanless design with Intel® Pentium® processor N3710
● 2.5" SATA HDD & mSATA
● 3G, WLAN module & antennas (optional)
● 2 GbE LANs, 2 USB 3.0, 2 USB 2.0 and 2 COM
● IP65-rated aluminum front bezel
● Supports panel mount and VESA mount (VESA arm/desktop stand/wall mount optional)
● Adjustable RS-232/422/485 setting via BIOS
|
