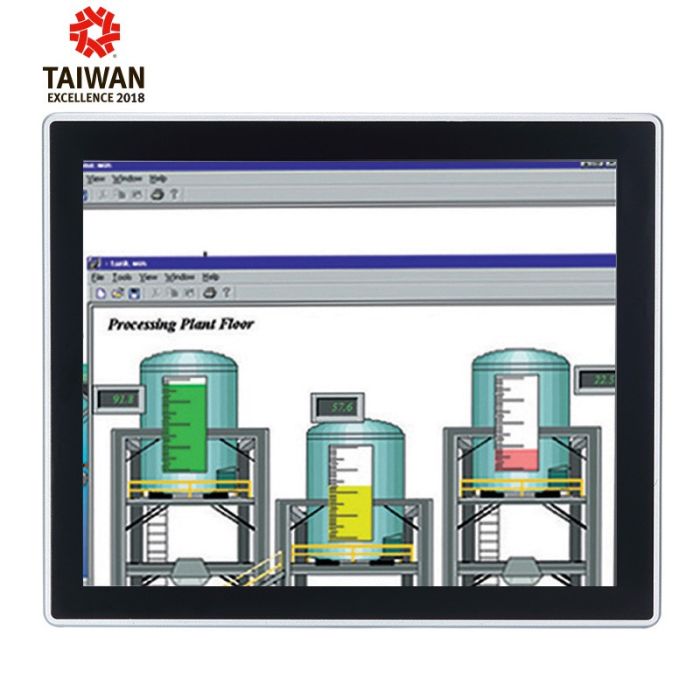

GOT3177T-311-FR 17" SXGA Panel PC
calcActive())">
Axiomtek
GOT3177T-311-FR 17" SXGA Panel PC
17" SXGA TFT Flat Bezel Expandable Touch Panel Computer with Intel® Pentium® Processor N4200
-
SKU
-
GOT3177T-311-FR
{ $el.scrollIntoView({behavior: 'smooth', block: 'center'}) })">
Have a Question about this product?
Description /
GOT3177T-311-FR 17" SXGA Panel PC
17" SXGA TFT Flat Bezel Expandable Touch Panel Computer with Intel® Pentium® Processor N4200
● 17" SXGA TFT flat resistive touch
● Fanless and modulized design
● Intel® Pentium® processor N4200 (Apollo Lake-M)
● 2.5" 7/9.5 mm SATA HDD and mSATA
● WLAN module & antenna (optional)
● 2 GbE LAN, 2 USB 2.0, 2 USB 3.0 and 4 COM
● 1 PCIe riser card expansion slot (optional)
● IP65-rated front bezel
● Supports panel mount and VESA mount (VESA arm/desktop stand/wall mount optional)
More Information
| Brand |
Axiomtek |
| Specifications |
|
Front Bezel
|
IP65 front bezel
|
|
LCD Panel
|
Display Type
|
17" SXGA TFT LCD
|
|
|
Brightness (cd/m2 )
|
350 nits
|
|
|
Resolution
|
1280 x 1024 pixels
|
|
Main System
|
CPU
|
Intel® Pentium® processor N4200 4C @ 1.6 GHz (Apollo Lake-M)
|
|
|
Chipset
|
SoC integrated
|
|
|
System Memory
|
1 x 204-pin DDR3L-1333/1600 SO-DIMM, up to 8GB
|
|
|
BIOS
|
AMI UEFI BIOS
|
|
|
Storage
|
1 x 2.5" SATA HDD (9.5 mm height)
1 x mSATA
|
|
|
Watchdog Timer
|
255 levels, 0 to 255 sec.
|
|
|
Onboard Graphics
|
Integrated Intel® HD Graphics
|
|
I/O Connector
|
2 x RS-232
2 x RS-232/422/485 (default RS-232)
2 x Audio (Line-out/Mic-in)
2 x USB 2.0
2 x USB 3.0
2 x 10/100/1000 Mbps Ethernet (Intel® i210-IT)
|
|
TPM
|
N/A
|
|
Expansion Interface
|
1 x Full-size PCI Express Mini Card slot with SIM
1 x Full-size PCI Express Mini Card slot with mSATA
1 x PCIe riser card slot (optional)
|
|
Touchscreen
|
Flat resisitve touch
|
|
Power Supply
|
DC version: 9 to 36 VDC
|
|
Power Consumption
|
69W
|
|
Dimensions
|
398.02 mm (15.64") (W) x 59.9 mm (2.36") (D) x 330.44 mm (13.01") (H)
|
|
Packing Dimensions
|
510 mm (20.08") (W) x 190 mm (7.48") (D) x 540 mm (21.26") (H)
|
|
Weight
|
(net/gross) 5.7 kg (12.6 lb) /8.0 kg (17.6 lb)
|
|
Operating temperature:
|
0°C to +60°C (+32°F to +140°F)
|
|
Relative humidity:
|
20% to 90% @ +40°C; non-condensing
|
|
Operation vibration:
|
1.0G, 10 - 500Hz
|
|
Certificate
|
CE
|
|
| Description |
17" SXGA TFT Flat Bezel Expandable Touch Panel Computer with Intel® Pentium® Processor N4200
● 17" SXGA TFT flat resistive touch
● Fanless and modulized design
● Intel® Pentium® processor N4200 (Apollo Lake-M)
● 2.5" 7/9.5 mm SATA HDD and mSATA
● WLAN module & antenna (optional)
● 2 GbE LAN, 2 USB 2.0, 2 USB 3.0 and 4 COM
● 1 PCIe riser card expansion slot (optional)
● IP65-rated front bezel
● Supports panel mount and VESA mount (VESA arm/desktop stand/wall mount optional)
|
