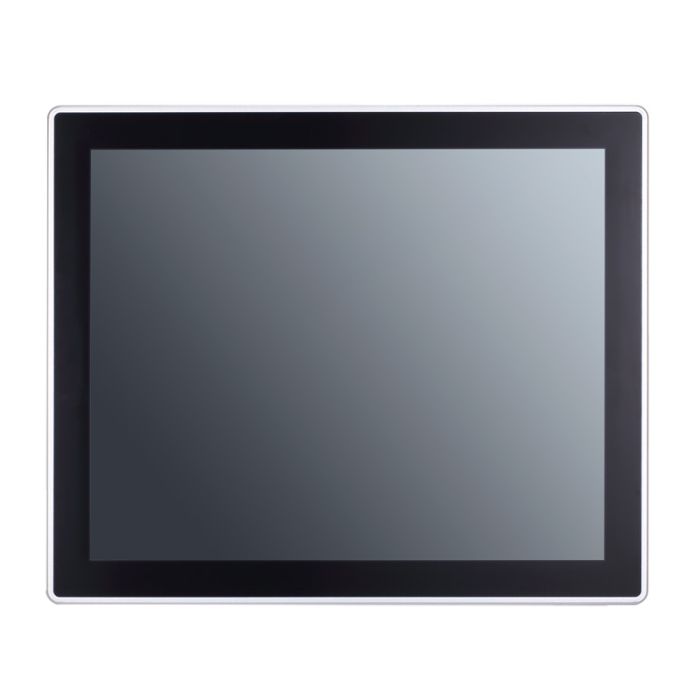

GOT317B-ADL-TRD 17" Fanless Touch Panel PC 13th/12th Gen

Axiomtek

17" SXGA Fanless Touch Panel Computer with LGA1700 Socket 13th/12th Gen Intel® Core™ i7/i5/i3 or Pentium® Processor

Key Features:

  • 17” SXGA LCD with 350 nits of brightness
  • 5-wire resistive touch
  • Supports one 2.5” SATA HDD/SSD
  • Flat front panel touch screen with rugged IP65 front bezel
  • Fanless design
  • Supports WLAN module and antenna (optional)
  • Supports 4 USB and 2COM ports
  • TPM 2.0 onboard
  • Swappable HDD Tray
  • Supports panel mount, VESA mount, desktop stand, and wall mount

In stock

SKU
GOT317B-ADL-TRD

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / GOT317B-ADL-TRD 17" Fanless Touch Panel PC 13th/12th Gen

Axiomtek – a world-renowned leader relentlessly devoted to the research, development, and manufacture of a series of innovative and reliable industrial computer products of high efficiency – is pleased to introduce the GOT317B-ADL-TRD, its 17-inch fanless touch panel computer powered by the high-performance 13th/12th gen Intel® Core™ i7/i5/i3 and Pentium® processor. The industrial-grade touch panel PC adopts a 17” SXGA widescreen LCD with 5-wire resistive touch and 350 nits of brightness. Designed to thrive in challenging environments, the GOT317B-ADL-TRD has an IP65-rated water/dust-proof front bezel and a wide operating temperature range of -10°C to 50°C, ensuring its suitability for heavy-duty industry and factory automation applications.

Key Features:

  • 17” SXGA LCD with 350 nits of brightness
  • 5-wire resistive touch
  • Supports one 2.5” SATA HDD/SSD
  • Flat front panel touch screen with rugged IP65 front bezel
  • Fanless design
  • Supports WLAN module and antenna (optional)
  • Supports 4 USB and 2COM ports
  • TPM 2.0 onboard
  • Swappable HDD Tray
  • Supports panel mount, VESA mount, desktop stand, and wall mount

More Information

brand Axiomtek
Specifications
LCD Panel
  • 17\" SXGA TFT LCD
  • 350 nits
  • 1280 x 1024 pixels
CPU
  • LGA1700 socket 13th/12th gen Intel® Core™ i7/i5/i3 or Pentium® processor (up to 35W)
Chipset
  • Intel® H610
System Memory
  • 1 x 260-pin DDR4 3200MHz SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 1 x 9-pin D-sub Male RS-232/422/485
  • 1 x RS-232 via cable
USB
  • 2 x USB 3.2 Gen1 (Type A)
  • 2 x USB 2.0 (Type A)
Ethernet
  • 1 x RJ-45 for 10/100/1000Mbps (Intel® I219-V)
  • 1 x RJ-45 for 10/100/1000/2500Mbps (Intel® I225-V)
Display
  • 2 x HDMI 1.4b
Audio
  • 1 x Line out
Storage
  • 1 x 2.5” SATA HDD(WT)/SSD (7mm and 9.5mm height, removable)
Expansion
  • 1 x M.2 Key E type 2230 with PCIe x1 and USB 2.0
  • 1 x PCI Express Mini Card (USB+PCIe signal)
  • 1 x Flexible IO window; supports COM3 (on board by option)
Others
  • TPM 2.0
  • 1 x Phoenix-type connector for DC power input
  • 1 x Switch for power on/off
  • 1 x Remote power switch
  • 1 x Grounding hole
Touchscreen
  • 5-wire Resistive Touch Screen
Front Bezel
  • IP65 front bezel
Power Supply
  • 12 - 24V DC-in via terminal block
Power Comsumption
  • 120W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • -10°C to 50°C (35W CPU/SSD)
Relative Humidity
  • 10% - 95% @40°C; non-condensing
Vibration
  • 1G / 5 - 500Hz / operation (SSD, random)
Dimensions
(W x D x H)
  • 398 x 77.5 x 330.4 mm (15.67\" x 3.05\" x 13\")
Weight (net/gross)
  • 11 kg (24.25 Ib) /7.36 Kg (16.22 Ib)
Certifications
  • CE Class A, IEC/EN61000-6-4, IEC/EN61000-6-2
  • FCC 47 CFR Part 15 Subpart B (Class A)
  • UKCA
  • RoHS standard
EOS
  • Win10, Win10 IoT, Win11, Win11 IoT, Linux
Mounting
  • Panel mount
  • VESA mount
  • Desktop stand
  • Wall mount
Description

Axiomtek – a world-renowned leader relentlessly devoted to the research, development, and manufacture of a series of innovative and reliable industrial computer products of high efficiency – is pleased to introduce the GOT317B-ADL-TRD, its 17-inch fanless touch panel computer powered by the high-performance 13th/12th gen Intel® Core™ i7/i5/i3 and Pentium® processor. The industrial-grade touch panel PC adopts a 17” SXGA widescreen LCD with 5-wire resistive touch and 350 nits of brightness. Designed to thrive in challenging environments, the GOT317B-ADL-TRD has an IP65-rated water/dust-proof front bezel and a wide operating temperature range of -10°C to 50°C, ensuring its suitability for heavy-duty industry and factory automation applications.

Key Features:

  • 17” SXGA LCD with 350 nits of brightness
  • 5-wire resistive touch
  • Supports one 2.5” SATA HDD/SSD
  • Flat front panel touch screen with rugged IP65 front bezel
  • Fanless design
  • Supports WLAN module and antenna (optional)
  • Supports 4 USB and 2COM ports
  • TPM 2.0 onboard
  • Swappable HDD Tray
  • Supports panel mount, VESA mount, desktop stand, and wall mount
