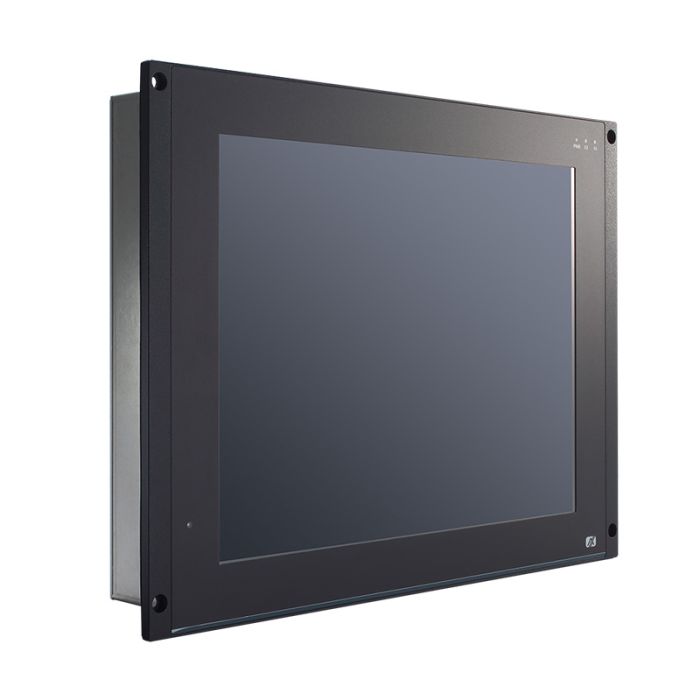

GOT715S EN50155 15" Railway Fanless Touchscreen Panel PC

Axiomtek

EN50155 Compliant 15" XGA TFT LCD Railway Fanless Touchscreen Panel PC with Intel Atom Processor E3845 1.91 GHz (-25°C to +70°C)

Key Features:

  • Sunlight readable 15" XGA TFT LCD with 800 nits of high brightness
  • Fanless with Intel Atom® processor E3845 1.91 GHz
  • All lockable connector design
  • Auto-dimming for different environments
  • -25°C to +70°C wide temperature range
  • Typical 24 to 110 VDC wide power input range and EN 50155 Class S3 20ms power interruption protection compliant
  • EN 50155 design compliance

In stock

SKU
GOT715S-RA-M

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / GOT715S EN50155 15" Railway Fanless Touchscreen Panel PC

The GOT715s from Axiomtek is an EN50155 Compliant Railway Fanless Touchscreen Panel PC, featuring a 15" XGA TFT LCD with 800 nits brightness for optimal visibility in any lighting. Powered by an Intel Atom® processor E3845, it ensures robust performance in temperatures from -25°C to +70°C. With all-lockable connectors, auto-dimming, and wide power input range compliance, it guarantees secure connectivity, adaptability, and uninterrupted operation, meeting the stringent standards of the railway industry.

More Information

brand Axiomtek
Specifications

LCD Panel

  • 15\" TFT LCD

  • 800 nits

  • 1024 x 768 pixels

CPU

  • Intel® Atom® processor E3845 1.91 GHz (Bay Trail)

Chipset

  • SoC integrated

System Memory

  • DDR3L 4GB onboard

BIOS

  • AMI

COM

  • 2 x Isolated M12 A-coded RS-232/422/485 (isolation level 1.5kV)

USB

  • 1 x M12 A-coded USB 2.0 (2 port signal)

Ethernet

  • 2 x Isolated M12 X-coded GbE (isolation level 1.5kV)

Display

  • N/A

Audio

  • 1 x DB15 audio line-in, mic-in, speaker-out or line-out

CANbus

  • 1 x Isolated DB9 CANbus (isolation level 1.5kV)

DIO

  • 1 x Isolated terminal block DIO (6-in/2-out, isolation level 1.5kV)

Storage

  • 16GB flash onboard

Expansion

  • 2 x PCI Express Mini Card slot (slot2 for mSATA use only)

Others

  • Auto-dimming for different environments

Touchscreen

  • 5-wire resistive touchscreen

Front Bezel

  • IP65-rated aluminum front bezel and IP40-rated rear protection

Power Supply

  • 1 x M12 A-coded DC-in

  • Typical 24 to 110 VDC

  • EN 50155 S3 20ms power interruption protection

Power Comsumption

  • 24-110VDC@1.28-0.26A

Watchdog Timer

  • 255 levels, 1 to 255 sec.

Operating Temperature

  • -25°C to +70°C (-13°F to +158°F)

Relative Humidity

  • 10% - 95% @ +40°C, non-condensing

Vibration

  • N/A

Dimensions (W x D x H)

  • 400 x 61.5 x 300 mm (15.75\" x 2.42\" x 11.81\")

Weight (net/gross)

  • 4.03 kg (8.89 lb) / 6.43 kg (14.18 lb)

Certifications

  • CE/FCC Class A

  • EN 50155 compliant

EOS

  • Windows® 10, Windows® 10 IoT, Windows® 7, WES 7

Mounting

  • Wall mount

  • VESA mount
Description

The GOT715s from Axiomtek is an EN50155 Compliant Railway Fanless Touchscreen Panel PC, featuring a 15" XGA TFT LCD with 800 nits brightness for optimal visibility in any lighting. Powered by an Intel Atom® processor E3845, it ensures robust performance in temperatures from -25°C to +70°C. With all-lockable connectors, auto-dimming, and wide power input range compliance, it guarantees secure connectivity, adaptability, and uninterrupted operation, meeting the stringent standards of the railway industry.
pdf
got715s.pdf
