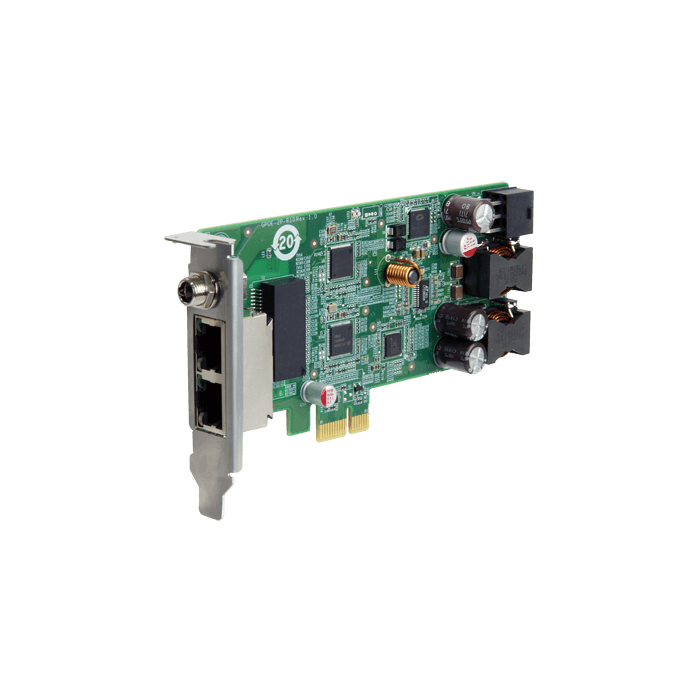

GPOE-2P 2-port PCI Express PoE Card

PCI Express Power over Ethernet card, 2-port 1000 Base(T), 802.3at compliant, low profile, RoHS

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / GPOE-2P 2-port PCI Express PoE Card

PCI Express Power over Ethernet card, 2-port 1000 Base(T), 802.3at compliant, low profile, RoHS

· PCI Express® x1 compliant

· Support IEEE 802.3at for PoE (Power over Ethernet) with 30 watts per port

· Support link aggregation/jumbo frames (9 Kbyte)

· Supports 12V~24V DC input power

Specifications

Spec Item	Description
I/O Interface
Ethernet	Intel® I211AT controller 9kB jumbo frame IEEE 802.3az, IEEE1588
Power
Input	12~24V DC input 1 x Internal DC input (1x4 pin) 1 x External DC Jack (Φ2.1/Φ5.5) **Caution! Choose one input only at a time
Environment
Operating Temperature	0°C ~ 60°C
Humidity	5% ~ 95%, non-condensing
Storage Temperature	-10°C ~ 70°C
Dimensions
Dimensions	160 mm x 65 mm
Weight
Weight	110g
Features
Features	1. PCI Express® x1 compliant 2. Support IEEE 802.3at for PoE (Power over Ethernet) with 30 watts per port 3. Support link aggregation/jumbo frames (9 Kbyte) 4. Supports 12V~24V DC input power
