Available with black or white radome, meeting IK10 for vandal resistance and IP69K
In stock
SKU
L[G]M[H]M-6-60
Have a Question about this product?
Description /

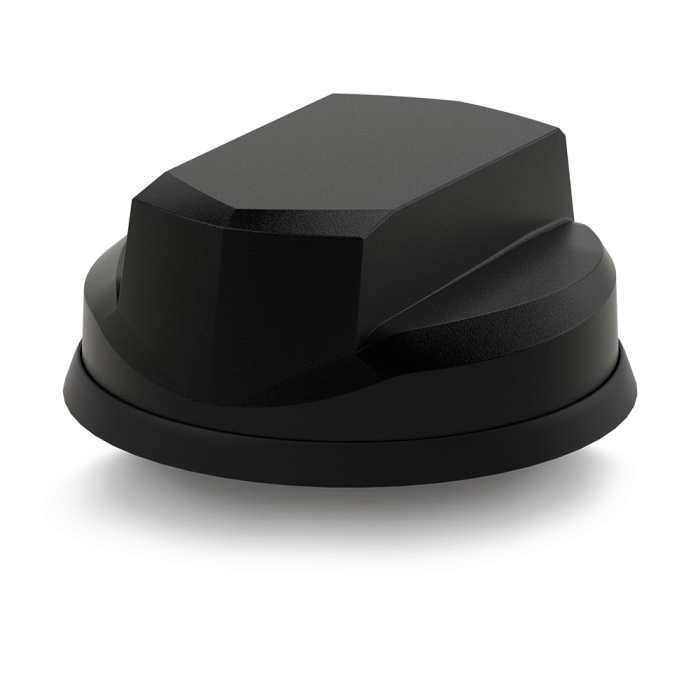

‘Great White’ 2×2 MiMo 4G/5G Vehicle Antenna
The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2×2 4G/5G MiMo performance from 617-960/1427-6000MHz in a robust low-profile package. The flexible platform allows the main elements to be combined with several other functions including GPS/GNSS and up to 6×6 MiMo WiFi 2.4/4.9-7.2GHz. The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant with UN ECE R118.03 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications. The LGM variants have an integrated GPS/GNSS module supporting GPS, GLONASS, Galileo and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference. The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2×2 4G/5G MiMo performance from 617-960/1427-6000MHz in a robust low-profile package. The flexible platform allows the main elements to be combined with several other functions including GPS/GNSS and up to 6×6 MiMo WiFi 2.4/4.9-7.2GHz. The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant with UN ECE R118.03 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications. The LGM variants have an integrated GPS/GNSS module supporting GPS, GLONASS, Galileo and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference. The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
