Buy HID-1540 15.6” Fanless Medical Panel PC

Avalue Technology Inc

15.6” Alder Lake Medical Panel PC

Key Features:

Sleek lightweight design
15.6” Full HD PCAP touch
Socketed Intel® 12th Gen Alder Lake-PS Core™ i7/i5/i3 Processor
1 COM, 2 LAN, 1 USB 2.0, 3 USB 3.0, 1 USB Type C
1 x M.2 Key B 3042/3052/2280, 1 x M.2 Key E for WIFI, 1 x M.2 Key M for storage
Programmable LED light bar on both sides
Optional Webcam/ WIFI/ NFC
CE/FCC/Medical UL

In stock

SKU: HID-1540-123-A1R

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

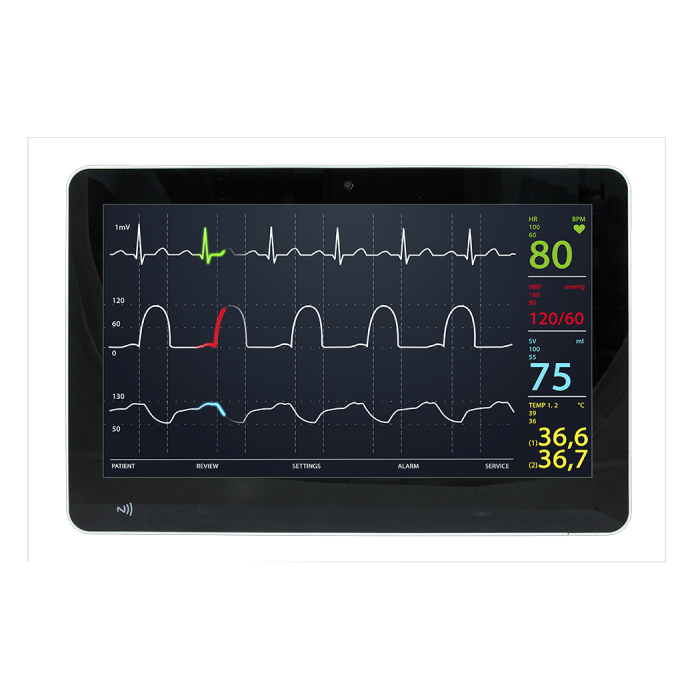

Description / HID-1540 15.6” 12th Gen Core Fanless Medical Panel PC

The Avalue HID-1540 Medical Panel PC is engineered for healthcare environments, blending reliability with advanced technology to support critical applications. Its 15.6" full HD display offers clear, detailed visuals, optimizing user experience and medical precision. Designed for hygienic environments, the HID-1540 features an antibacterial enclosure, a fanless design, and an IP65-rated front panel, ensuring robust protection against dust and liquid intrusion.

Equipped with Intel Core processors, the HID-1540 delivers powerful performance, streamlining patient data management, telemedicine, and diagnostic imaging workflows. This panel PC also supports multiple connectivity options, including USB, HDMI, and LAN, facilitating seamless integration with medical devices and networks. The HID-1540’s user-friendly touch interface provides medical personnel swift access to critical information, enhancing patient care and operational efficiency.

More Information

brand

Avalue Technology Inc

Specifications

System Information
Processor	12th Generation Intel® Core™ i7/i5/i3 Processor
Platform Controller Hub	Integrated in Processor (SOC)
System Memory	1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 32GB Max (Min 8GB)
I/O Chipset	IT5782VG
Watchdog Timer	H/W Reset, 1sec. – 65535sec./min. 1sec. or 1min. step
H/W Status Monitor	CPU temperature monitoring, voltage monitoring
SBC	HID-2340 motherboard
TPM	Onboard NuvoTon NPCT754AADYX, supports TPM 2.0
Expansion
Expansion	1 x M.2 Key B 3042/3052/2280, 1 x M.2 Key E for Wi-Fi
Storage
Storage	1 x M.2 Key M storage (optional)
Audio
Audio Interface	Audio combo jack
Audio Codec	Realtek ALC888S
Speaker Output	2 x 5W
Ethernet
LAN Chipset	1 x Intel® I225LM, 1 x Intel® I226LM
Ethernet Interface	10/100/1000/2500 Base-Tx GbE compatible
LAN Port	2 x RJ-45
Power Requirement
Adapter	Medical grade, Input: 100-240V~, 2.0-1.0A, 50-60Hz, Output: 19V 4.73A 90W
Power Mode	AT/ATX (ATX is default setting)
DC Input Connector	Lockable DC Jack
DC Input	+12V~+24V
Software Support
OS	Win10 / Win11 / Linux
Certification
Certification Information	CE: IEC/EN60601-1-2, FCC: Part 15 Class B, UL60601-1
External I/O
Wireless LAN	Optional 802.11abgn+acR2+axR2 Wi-Fi 6E BT5.2
Panel
LCD Size	15.6"
Display Type	Full HD
Resolution	1920 x 1080
Pixel pitch	0.17925 x 0.17925 mm
Luminance	300 cd/m²
Contrast ratio	1000
Viewing angle	89(U), 89(D), 89(L), 89(R)
Response time	25 ms
Backlight	LED
Touch Type	Projective capacitive multi-touch, up to 10 points
Touch Light Transmission	85%
Touch Controller	USB touch (EETI)
I/O
COM Port	1 x RS-232/422/485
USB Port	1 x USB 2.0, 3 x USB 3.0, 1 x USB Type C
Mechanical & Environmental
Operating Temp.	0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.	-30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity	0% ~ 90% Relative Humidity, Non-condensing
Weight	2.8 kg
Vibration Test	With SSD/mSATA: 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test	With CF/SSD: 10Grms, IEC 60068-2-27, Half Sine, 11ms
IP Rating	Front IP65, Back IP54
VESA	75x75, 100x100
Dimension (W x L x H)	400 x 263 x 42.5 mm
System Fan	Fanless
Construction - Front	White Plastic
Construction - Rear	White Plastic
Finishing	Anti-Microbial
Fanless	Yes
Color	White
