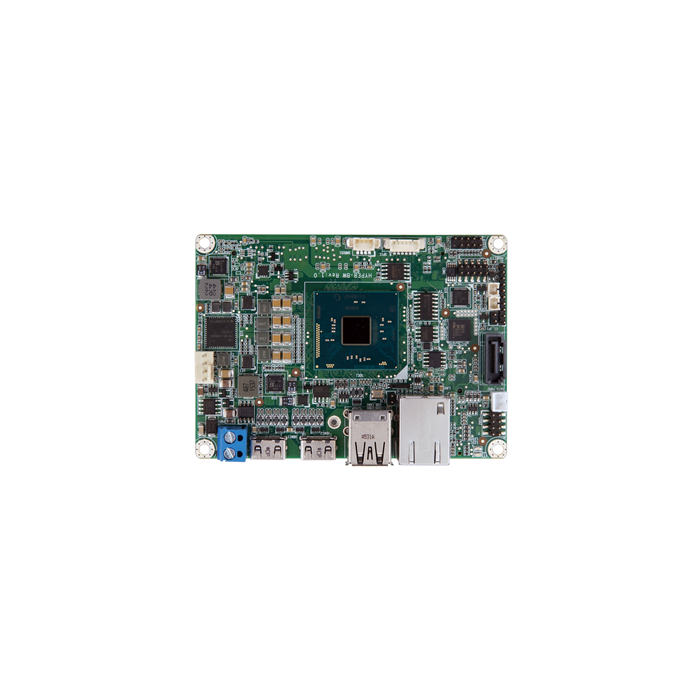

Shop HYPER-BW Pico-ITX SBC Pentium/Celeron

Axiomtek

Pico-ITX SBC with Intel® Pentium® 14nm quad-core N3710 up to 2.56GHz, x5-E8000 up to 2.00GHz, N3060 up to 2.48GHz or N3160 up to 2.24GHz

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / HYPER-BW Pico-ITX SBC Pentium/Celeron

Pico-ITX SBC with Intel® 14nm Pentium®/Celeron® on-board SoC

· Pico-ITX SBC supports Intel® 14nm Pentium®/Celeron® on-board SoC

· IEI jumper-less function

· Dual independent display support

· 1333/1600 MHz 1.35V DDR3L SDRAM up to 8 GB supported

· COM, USB 3.0, SATA 6Gb/s and Audio support

· 1 x M.2 B key slot for expansion possibility

· IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Brand

Axiomtek

Specifications

Spec Item	Description
Display
Display Output	Dual independent display 2 x Mini HDMI (up to 3840x2160@30Hz)
Environment
Humidity	5% ~ 95%, non-condensing
Operating Temperature	-20°C ~ 60°C
I/O Interface
Audio	1 x HD audio(2 x 5 pin, support 7.1 channel HD audiou by AC-KIT-892HD-R10)
Ethernet	LAN1: Realtek RTL8111 controller
I/O Interface
I/O Interface	2 x Internal USB 2.0
	1 x USB 3.0
	1 x USB 2.0
	1 x Internal RS-232
Power
Power consumption	12V@1.52A (Intel® Pentium® processor N3710 with 8 GB 1600 MHz DDR3L memory)
SoC
SoC	Intel® Pentium® Braswell N3710 on-board SoC (2.56GHz, quad-core, 2MB cache, TDP=6W) Intel® Celeron® Braswell N3160 on-board SoC (2.24Hz, quad-core, 2MB cache, TDP=6W) Intel® Celeron® Braswell N3060 on-board SoC (2.48GHz, dual-core, 2MB cache, TDP=6W) Intel® Celeron® Braswell N3010 on-board SoC (2.24GHz, dual-core, 2MB cache, TDP=4W) Intel® Atom® x5-E8000 on-board SoC(up to 2.00 GHz, quad-core, 2M cache, TDP=5W)
Storage
Storage	1 x SATA 6G/s with 5V SATA power connector
System
Memory Max.	One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot support up to 8 GB
Watchdog Timer
Watchdog Timer	Software programmable supports 1~255 sec. system reset
