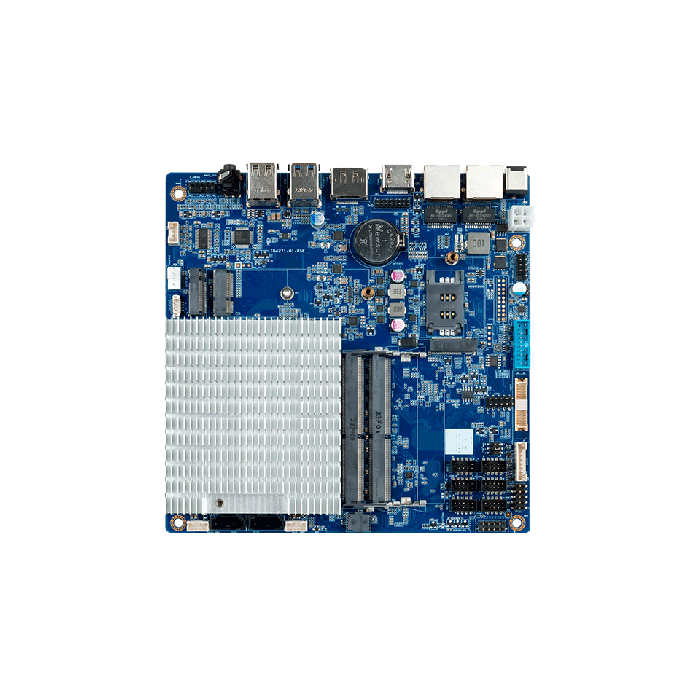

IB4-271 Long Life Cycle Thin Mini-ITX Motherboard

Giada Technology Inc.

Giada IB4-271, a slim Mini-ITX motherboard featuring Elkhart Lake Celeron J6412 with a 10W TDP, is aligned with Intel® IOTG's roadmap, ensuring a 7+ years lifespan and notable performance enhancements.

Key Features:

  • Elkhart Lake platform delivers up to 1.7x improvement in single-thread and 1.5x improvement in multi-thread performance.
  • Three display outputs (DP, HDMI, LVDS) with 4K support via HDMI (4096 x 2160 @60 Hz) and DP (4096 x 2160 @60 Hz) powered by Intel® UHD Graphics.
  • Wi-Fi 5/6 support for high-speed data transfer and seamless connectivity to various peripherals.
  • Fanless design with a passive thermal cooling system reduces failure rates, ensuring noise-free and dustproof operation for mission-critical applications.

In stock

SKU
IB4-271

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / IB4-271 Long Life Cycle Thin Mini-ITX Motherboard

Performance and Lifespan

Giada IB4-271, a thin Mini-ITX motherboard, is equipped with the Elkhart Lake Celeron J6412, boasting a low TDP of 10W. Aligned with Intel®'s IOTG roadmap, this motherboard ensures a remarkable lifespan of over 7 years. The Elkhart Lake platform delivers significant performance enhancements, with up to a 1.7x improvement in single-thread performance and up to 1.5x improvement in multi-thread performance from one generation to the next.

Display Capabilities

Featuring three display outputs—DP, HDMI, and LVDS—the Giada IB4-271 supports 4K display via HDMI (4096 x 2160 @60 Hz) and DP (4096 x 2160 @60 Hz) ports, all powered by Intel® UHD Graphics. This ensures a high-quality visual experience for various applications.

Connectivity with Wi-Fi 5/6

The Giada IB4-271 provides lightning-fast data transfer speeds and seamless connectivity with support for Wi-Fi 5/6. Whether connecting multiple high-resolution displays or transferring large files swiftly, this motherboard ensures optimal performance and versatility.

Efficient Cooling and Noise-Free Operation

Boasting a passive thermal cooling system and a fanless design, the Giada IB4-271 minimizes the failure rate and operates noise-free and dustproof. This feature makes the motherboard suitable for mission-critical applications where reliability is paramount.

In summary, the Giada IB4-271 stands out as a powerful, efficient, and reliable Mini-ITX motherboard, offering impressive performance, versatile connectivity, and robust design for various applications, including mission-critical scenarios.

More Information

brand Giada Technology Inc.
Specifications

Processor

CPU

Intel® Celeron® J6412 processor

Frequency

2.60 GHz

Chipset

SoC

Processor Units

4 Cores

TDP

10 W

Rear I/O

USB

2 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0

Display Interface

1 x HDMI (Max.4096 x 2160 @60 Hz)

1 x DP (Max.4096 x 2160 @60 Hz)

Audio

1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)

Ethernet Interface

2 x RJ45

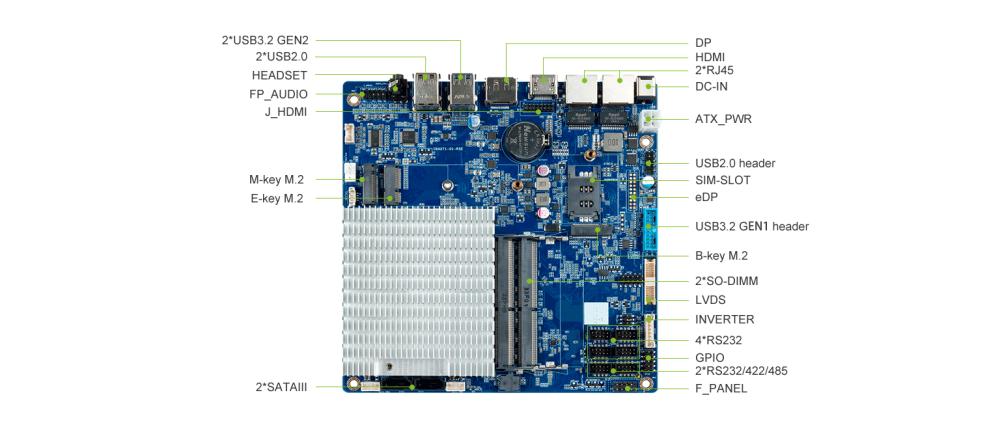

Internal I/O

USB

2 x USB3.2 Gen1, signal by 1 x 19pin header

2 x USB2.0, signal by 1 x 9pin header

Display

1 x 30pin dual channel 24bit LVDS

1 x 20pin eDP colay with LVDS

1 x 16pin J_HDMI colay with HDMI

Serial port

4 x RS232, signal by 4 x 9pin header

2 x RS232/422/485, signal by 2 x 9pin header

Power

1 x 4pin ATX PWR_IN, 2 x 4pin HDD_PWR

Audio

1 x 10pin FP_AUDIO, 1 x 4pin SPEAKER

Others

4 x GPI, 4 x GPO

1 x 10pin F_PANEL

1 x 3pin CLR_CMOS

1 x 8pin INVERTER

1 x 4pin SYS_FAN, 1 x 4pin CPU_FAN

Network

Network Controller

2 x Realtek RTL 8111H Gigabit Ethernet

Wi-Fi/BT

1 x E-Key M.2 (2230) for Wi-Fi/BT,
Support Wi-Fi 5, Wi-Fi 6

Mobile Network

1 x B-Key M.2 (3042) for 3G/4G module,
1 x SIM Slot

System

GPU

Intel® UHD Graphics (by CPU)

Graphic Engine

DirectX, OpenGL, OpenCL, Intel® Quick Sync Video

System Memory

Up to 32 GB, 2 x SO-DIMM DDR4-3200 MHz

Storage

1 x M-Key M.2 (2280) for SSD

2 x SATAIII

TPM

Optional: TPM2.0

Watchdog Timer

Yes

Auto Power On

Yes

RTC

Set up independently every day, a week as a cycle

Power Requirement

DC-IN, 12~24 V

Dimensions

Thin Mini-ITX, 170 mm x 170 mm (6.69” x 6.69”)

Operating system

 Windows10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)

Operating Temperature

0°C ~60°C (32°F~114°F) @0.7m/s Air Flow

Storage Temperature

-20°C ~75°C (-4°F~167°F)

Humidity

95% @ 60°C (non-condensing)
Description

Performance and Lifespan

Giada IB4-271, a thin Mini-ITX motherboard, is equipped with the Elkhart Lake Celeron J6412, boasting a low TDP of 10W. Aligned with Intel®'s IOTG roadmap, this motherboard ensures a remarkable lifespan of over 7 years. The Elkhart Lake platform delivers significant performance enhancements, with up to a 1.7x improvement in single-thread performance and up to 1.5x improvement in multi-thread performance from one generation to the next.

Display Capabilities

Featuring three display outputs—DP, HDMI, and LVDS—the Giada IB4-271 supports 4K display via HDMI (4096 x 2160 @60 Hz) and DP (4096 x 2160 @60 Hz) ports, all powered by Intel® UHD Graphics. This ensures a high-quality visual experience for various applications.

Connectivity with Wi-Fi 5/6

The Giada IB4-271 provides lightning-fast data transfer speeds and seamless connectivity with support for Wi-Fi 5/6. Whether connecting multiple high-resolution displays or transferring large files swiftly, this motherboard ensures optimal performance and versatility.

Efficient Cooling and Noise-Free Operation

Boasting a passive thermal cooling system and a fanless design, the Giada IB4-271 minimizes the failure rate and operates noise-free and dustproof. This feature makes the motherboard suitable for mission-critical applications where reliability is paramount.

In summary, the Giada IB4-271 stands out as a powerful, efficient, and reliable Mini-ITX motherboard, offering impressive performance, versatile connectivity, and robust design for various applications, including mission-critical scenarios.
