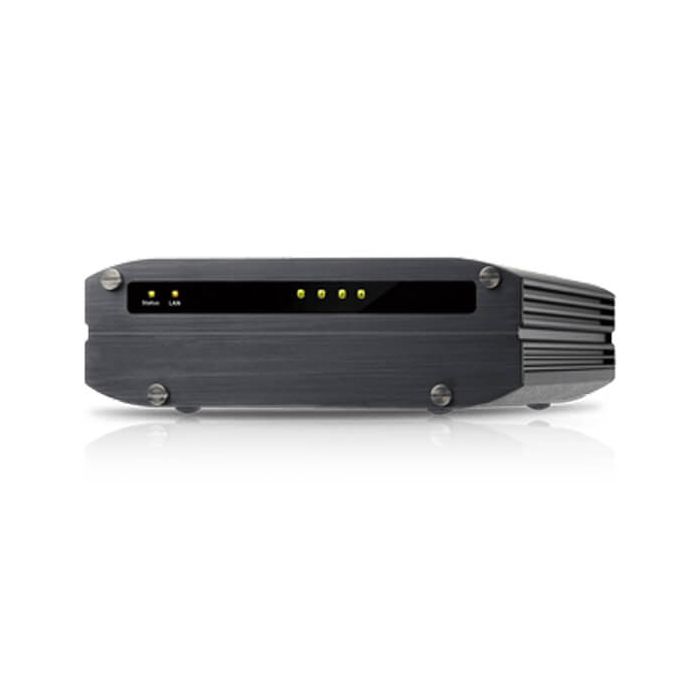

IBX-660 Intel Atom E3845, 4x 2.5" SSD
IEI Integration Corp.
IBX-660 Intel Atom E3845, 4x 2.5" SSD
Industrial edge server with four 2.5" drive bays, Intel® Atom™ E3845 quad-core 1.9GHz
-
SKU
-
IBX-660
Have a Question about this product?
Description /
IBX-660 Intel Atom E3845, 4x 2.5" SSD
Industrial edge server with four 2.5" drive bays, Intel® Atom™ E3845 quad-core 1.9GHz
● Four 2.5＂ removable drive bays, and maximum storage capacity support up to 8TB
● 32GB eMMC (storage & boot)
● Rugged design with high resistance to vibration and impact
● Dust-resistant and fanless design
● Wide operating temperature range: -40°C ~ 50°C (-40°F ~ 122°F)
More Information
| Brand |
IEI Integration Corp. |
| Specifications |
| Spec Item |
Description |
| Form factor |
| SBC Form Factor |
*CPU: Intel® Atom™ E3845 quad-core 1.91GHz
*Chipset: SoC
*Memory:
2 x 204-pin DDR3L SO-DIMM. 8GB pre-installed (system max. 8GB)
eMMC 32GB(storage and boot)
*Power:
Input 1: DC power jack, external power adaptor, 12V, 90W, Input: 100-240V
Input 2: 4-pin terminal block, 9-36V DC
Consumption: 40W (Intel® Atom® E3845 CPU with 8 GB 1600 MHz DDR3L memory, 4 x 2.5" HDD)
*Safety / EMC: CE/FCC
*Supported OS: Microsoft® Windows® 10 IoT Enterprise / Linux |
| I/O Interface |
| I/O Ports |
2 x USB 3.0
2 x USB 2.0
2 x RJ-45 PCIe GbE by Intel® I210
1 x HDMI Display port (Resolution: up to 1080p support)
1 x Mic-in
1 x Audio out |
| Expansion Slots |
| Expansion Slots |
1 x Full-size PCIe Mini slot
1 x onboard SIM card slot |
| System |
| Cooling method / System Fan |
Fanless |
| Drive Bays |
4 x 2.5"" SATA HDD/SSD, removable drive bay |
| Indicator&Buttons |
| Indicators |
LED Indicators: Status, LAN, HDD 1-4 |
| Physical Characteristics |
| Construction |
Wall-mount, DIN-rail mount |
| Color |
| Color |
Black |
| Dimensions |
| Dimensions |
180 x 247 x 59 mm ( WxDxH ) |
| Weight |
| Weight |
1.11 kg/3.2 kg ( Net/Gross ) |
| Environment |
| Operating Temperature |
-40°C ~ 50°C |
|
| Description |
Industrial edge server with four 2.5" drive bays, Intel® Atom™ E3845 quad-core 1.9GHz
● Four 2.5＂ removable drive bays, and maximum storage capacity support up to 8TB
● 32GB eMMC (storage & boot)
● Rugged design with high resistance to vibration and impact
● Dust-resistant and fanless design
● Wide operating temperature range: -40°C ~ 50°C (-40°F ~ 122°F)
|
