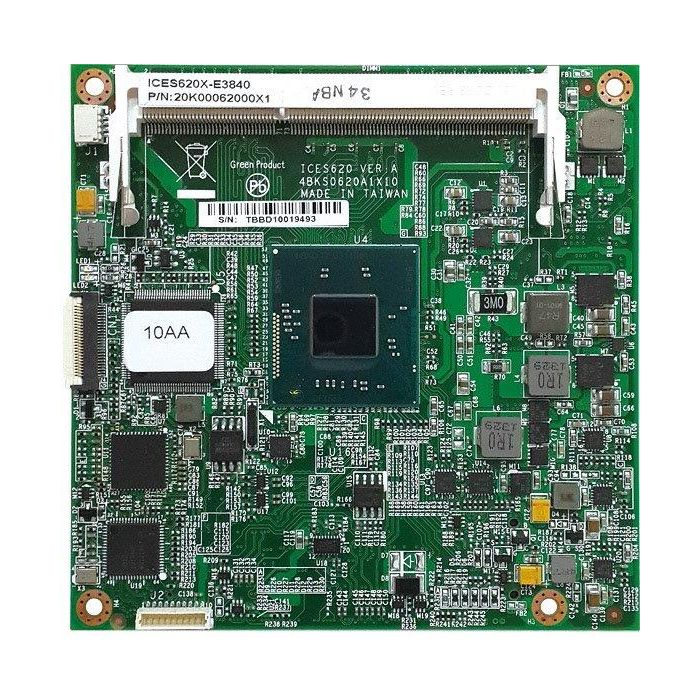

Shop ICES620X COM Express Type 6 COMPACT Size Module

Nexcom

COM Express Type 6, COMPACT Size Module with Intel® Atom™ E3800 Family Processor DDR3L/GbE/2SATA/4 X PCIe and DP/USB3.0

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / ICES620X COM Express Type 6 COMPACT Size Module

COM Express Type 6, COMPACT Size Module with Intel® Atom™ E3800 Family Processor DDR3L/GbE/2SATA/4 X PCIe and DP/USB3.0

· Embedded Intel® Atom™ E3800 family processors with 4 core support

· Embedded controller built-in with EAPI support

· Support DDR3L without ECC/SO-DIMMs 1066/1333MHz up to 4GB

· Support 4 x PCIex1, 1 x USB3.0/7 x USB2.0/2 x SATA2.0 and GbE

· 2 x DP/VGA interfaces

· Dimension 95 x 95mm (W x L)

Brand

Nexcom

Specifications

CPU Support	Intel® Atom™ E3800 Quad core processor up to 1.91GHz
Main Memory	Dual DDR3L/SO-DIMMs whthout ECC support 1066/1333MHz memory up to 8GB
BIOS	AMI System BIOS Plug and play support Advanced power management and advanced configuration & power interface support
Display	Intel® HD graphics with DX9 support Two DPs interfaces down to the carried board Standard VGA interface
COM Express Connector	AB: VGA/HDA/2 x SATA/GbE/4 x PCIex1 (without Gbe)/7 x USB2.0 LPC bus/SDIO (without GPIO)/GPIO/SMBus (I2C)/SPI BIOS CD: 1 x USB3.0/2 x DP (HDMI)
Power Requirements	+12V, +5VSB, +3.3V RTC power Support both AT and ATX power supply mode One 3 pins 90 degree edge-connector for DC +12V fan
Dimensions	95mm (W) x 95mm (L)
Environment	Board level operating temperatures: -40°C to 85°C. Storage temperatures: -20°C to 80°C Relative humidity: 10% to 90% (operating, non-condensing) 5% to 95% (non-operating, non-condensing)
Certifications	Meet CE/FCC Class B
