4 x 10/100Base-T(X) and 2 x 100Base-FX ports, redundant power inputs, configurable relay output alarm, rigid IP-30 housing, wide operating temperature range from -40 to 70°C
In stock
SKU
IES-1042FX-xx
Have a Question about this product?
Description /

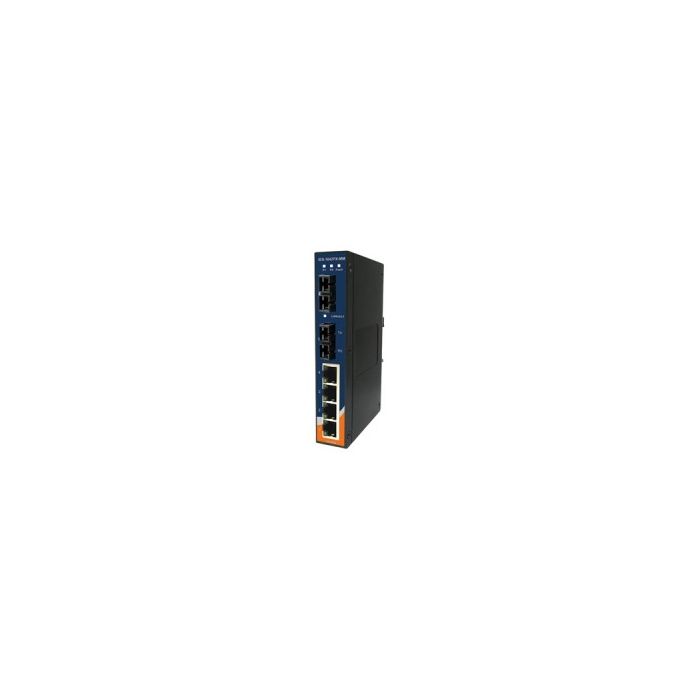

IES-1042FX Series - 6 port unmanaged switch
IES-1041FX series provide 4x10/100Base-T(X) and 1x100Base-FX single/multi-mode fiber ports
IES-1042FX series provide 4x10/100Base-T(X) and 2x100Base-FX single/multi-mode fiber ports
Support auto-negotiation and auto-MDI/MDI-X
Support store-and-forward transmission
Support flow control
Support surge protection technology
Warning system by relay output
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
More Information
Specifications
Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX
4
Fiber Ports Number
2
2
Fiber Ports Standard
100Base-FX
100Base-FX
Fiber Mode
Multi-mode
Single-mode
Fiber Diameter (μm)
62.5/125 μm 50/125 μm
9/125 μm
Fiber Optical Connector
SC
SC
Typical Distance (km)
2 km
30 km
Wavelength (nm)
1310 nm
1310 nm
Max. Output Optical Power (dBm)
-14 dBm
-8 dBm
Min. Output Optical Power (dBm)
-23.5 dBm
-15 dBm
Max. Input Optical Power (Saturation)
0 dBm
0 dBm
Min. Input Optical Power (Sensitivity)
-31 dBm
-34 dBm
Link Budget (dB)
7.5 dB
19 dB
Technology
Ethernet Standards
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow control
MAC Table
2048 MAC addresses
Processing
Store-and-Forward
LED Indicators
Power Indicator
Green : Power LED x 2
Fault Indicator
Amber : Indicates PWR1 or PWR2 failure occurred
10/100Base-T(X) RJ45 Port Indicator
Green for port Link/Act. Amber for Duplex/Collision
Fiber Port LED
Green for port Link/Act.
Fault Contact
Relay
Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power
Dual DC inputs: 12~48VDC on 6-pin terminal block
Power Consumption (Typ.)
7 Watts
Overload Current Protection
Present
Reverse Polarity Protection
Present
Physical Characteristics
Enclosure
IP-30
Dimensions (W x D x H)
26.1(W) x 94.9(D) x 144.3(H) mm (1.03 x 3.74 x 5.68 inch.)
