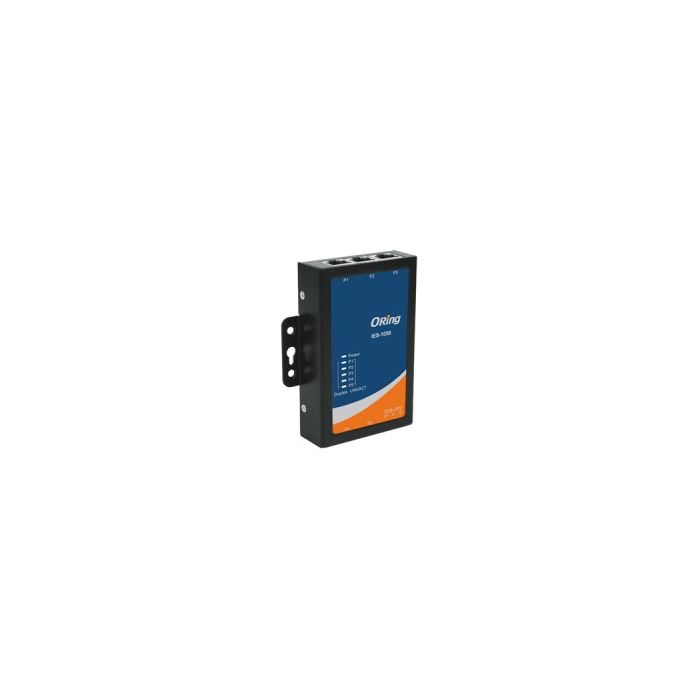

IES-1050 - 5 port unmanged switch
IES-1050 - 5 port unmanged switch
5x10/100Base-T(X) ports, compact size of housing & rigid IP-30 housing design
-
SKU
-
IES-1050
Have a Question about this product?
Description /
IES-1050 - 5 port unmanged switch
- Supports 5 ports 10/100Base-T(X)
- Rigid IP-30 housing design
- DIN-Rail and panel mounting enabled
More Information
| Specifications |
| Physical Ports |
|
|
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX
|
5 |
| Technology |
|
| Ethernet Standards |
IEEE 802.3 for 10Base-T,
IEEE 802.3u for 100Base-T(X) and 100Base-FX,
IEEE 802.3x for Flow control
|
| Processing |
Store-and-Forward |
| LED Indicators |
|
| Power / Ready Indicator |
Green : Power LED x 1 |
| 10/100Base-T(X) RJ45 port Indicator |
Green for port Link/Act.
Amber for duplex indicator
|
| Power |
|
| Input Power |
9 ~ 30 VDC voltage power input |
| Power Consumption (Typ.) |
3W |
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
Present |
| Physical Characteristics |
|
| Enclosure |
IP-30 |
| Dimensions (W x D x H) |
87.6(W) x 23.75(D) x 102.2(H) mm (3.45x0.94x4.02 inch.) |
| Weight (g) |
305 g |
| Environmental |
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-10 to 60°C (14 to 140°F) |
| Operating Humidity |
5% to 95% Non-condensing |
| Regulatory Approvals |
|
| EMI |
FCC Part 15, CISPR (EN55022) class A |
| EMS |
IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11 |
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-32 |
| Vibration |
IEC60068-2-6 |
| Safety |
EN60950-1 |
| Warranty |
5 years |
|
| Description |
- Supports 5 ports 10/100Base-T(X)
- Rigid IP-30 housing design
- DIN-Rail and panel mounting enabled
|
