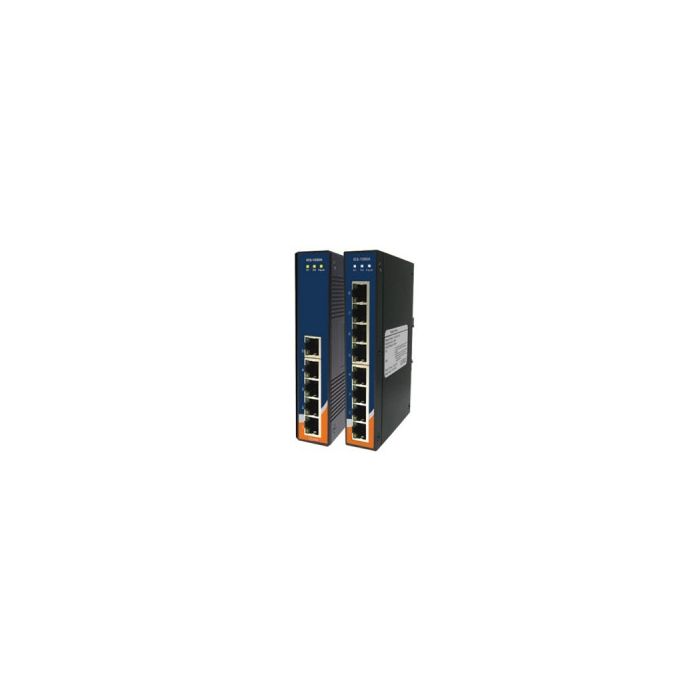

IES-1050A - 5 port slim style unmanaged switch
IES-1050A - 5 port slim style unmanaged switch
5x10/100Base-T(X) ports, compact size of housing & rigid IP-30 housing design
-
SKU
-
IES-1050A
Have a Question about this product?
Description /
IES-1050A - 5 port slim style unmanaged switch
More Information
| Specifications |
| Physical Ports | | | 10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX | 5 | | Technology | | | Ethernet Standards | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control | | MAC Table | 1K | | Packet buffer | 448K bits | | Processing | Store-and-Forward | | Switch Properties | Switching latency: 7us
Switching bandwidth: 1Gbps
Throughput (packet per second): 0.744Mpps@64Bytes packet | | LED Indicators | | | Power Indicator | Green : Power LED x 2 | | Fault Indicator | Amber : Indicates PWR1 or PWR2 failure | | 10/100Base-T(X) RJ45 Port Indicator | Upper LED for Link/Act indicator: Green for Link/Act
Lower LED for duplex indicator, Amber for full duplex, off for half duplex | | Fault Contact | | | Relay | Relay output to carry capacity of 1A at 24VDC | | Power | | | Redundant Input Power | Dual 12~48VDC on 6-pin terminal block | | Power Consumption (Typ.) | <2Watts, 0.13A-0.04A | | Overload Current Protection | Present | | Reverse Polarity Protection | Present | | Physical Characteristics | | | Enclosure | IP-30 | | Dimensions (W x D x H) | 26.1(W) x 94.9(D) x 144.3(H) mm (1.03 x 3.74 x 5.68 inch.) | | Weight (g) | 382 g | | Hardware Version | V2.0 | | Environmental | | | Storage Temperature | -40 to 85°C (-40 to 185°F) | | Operating Temperature | -40 to 75°C (-40 to 167°F) | | Operating Humidity | 5% to 95% Non-condensing | | Regulatory Approvals | | | EMC | CE EMC (EN 55024, EN 55032), FCC Part 15 B | | EMI | EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A | | EMS | EN 55024 (IEC/EN 61000-4-2 (ESD: Contact 4KV, Air 8KV), IEC/EN 61000-4-3 (RS: 3V),IEC/EN 61000-4-4 (EFT Power 0.5KV, Signal 0.5KV), IEC/EN 61000-4-5 (Surge: Power 0.5KV, Signal 1KV), IEC/EN 61000-4-6 (CS: 3V), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP)) | | Shock | IEC60068-2-27 | | Free Fall | IEC60068-2-31 | | Vibration | IEC60068-2-6 | | Safety | EN60950-1(LVD) | | MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C ) | 1,555,711hrs | | Warranty | 5 years | |
